LV432096 - Schneider Electric Micrologic 5.3 E Trip Unit 630A 3 Pole for Compact NSX 630 Circuit Breakers

LV432096

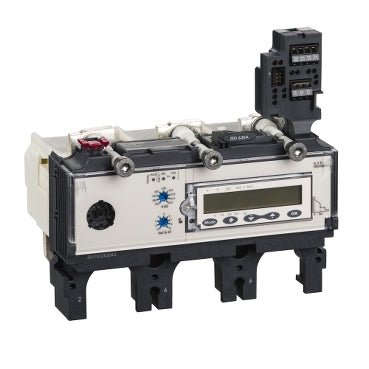

LV432096 is a Micrologic 5.3 E electronic trip unit designed for Compact NSX 630 circuit breakers, providing precise protection and control.This trip unit features a 630 ampere rating and supports 3 poles with 3d protection functions, including long-time, short-time with fixed delay, and instantaneous trip capabilities. It operates at 50/60 Hz and is intended for distribution applications, enhancing the performance and safety of Compact NSX 630 molded case circuit breakers.

Key Specifications
• Manufacturer: Schneider Electric
• Part Number: LV432096
• Trip Unit Type: Micrologic 5.3 E (Energy)
• Amperage Rating: 630 A
• Poles: 3
• Compatible Circuit Breaker Frame: Compact NSX 630
• Frequency: 50/60 Hz
• Protection Functions: Long-time (L), Short-time (S0) with fixed delay, Instantaneous (I)
• Application: Distribution
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LV432096
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Compact
• Type : LV4
• Voltage : 690
• Poles : 3
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Amperage Maximum : 630
• Amperage Minimum : 630
• Protection : Solid State
• Compatible Frames : NS,NSF,NSX,NFNF,NFNL,NFHF,NFHL
• Trip Type : MicroLogic 5.3 E



Product Data

• GTIN : 03606480017148
• Dimensions : Depth 32.01 in (81.3 cm) Width 14.02 in (35.6 cm) Height 59.02 in (149.9 cm)
• Weight : 3.28
• Standards : EN/IEC 60947-2, UL 508
