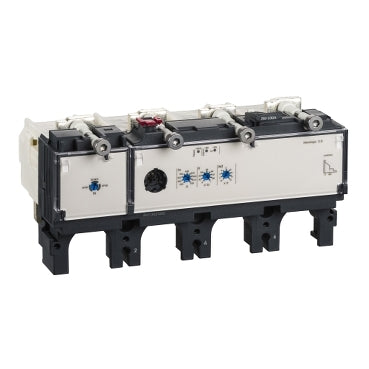

LV432086 - Schneider Electric Micrologic 2.3 Electronic Trip Unit 250A 4 Poles for Compact NSX 400/630 Circuit Breakers

LV432086

LV432086 is a Micrologic 2.3 electronic trip unit designed for Schneider Electric Compact NSX 400/630 circuit breakers with a 250A rating and 4 poles.

This trip unit provides advanced electronic protection and control functions for Compact NSX circuit breakers, ensuring reliable performance and precise trip settings. It supports 4 poles with 4d configuration and is optimized for use in medium voltage applications requiring electronic trip technology.

• Manufacturer: Schneider Electric
• Part Number: LV432086
• Trip Unit Type: Micrologic 2.3 Electronic
• Rated Current: 250 Amperes
• Poles: 4
• Compatible Circuit Breakers: Compact NSX 400/630
• Mounting Type: For Compact NSX Frame
• Protection Functions: L, S, o, I (Long-time, Short-time, Instantaneous, Ground fault)
• Voltage Rating: Suitable for 690V AC control voltage

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LV432086
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Compact
• Type : LV4
• Voltage : 690
• Poles : 3
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Amperage Maximum : 250
• Amperage Minimum : 250
• Protection : Solid State
• Compatible Frames : NS,NSF,NSX,NFNF,NFNL,NFHF,NFHL
• Trip Type : MicroLogic 2.3

Product Data

• UPC : 606480016366
• GTIN : 03606480016363
• Dimensions : Depth 19.69 in (500 mm) Width 51.18 in (1300 mm) Height 82.68 in (2100 mm)
• Weight : 3.915
• Standards : UL 508, EN/IEC 60947-2
