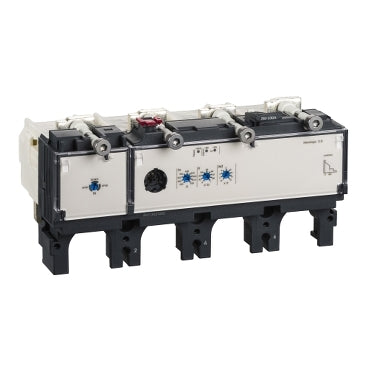

LV432085 - Schneider Electric MicroLogic 2.3 Trip Unit 400A 4 Poles 4D

LV432085

LV432085 is an electronic trip unit designed for Compact NSX 400/630 circuit breakers, featuring MicroLogic 2.3 protection technology with a 400A rating and 4 poles 4D configuration. This trip unit delivers advanced protection functions including long-time overload protection and instantaneous short-circuit protection (LSoI) for reliable circuit management in industrial and commercial applications. The unit operates at a rated operational voltage of 690V AC 50/60 Hz, making it suitable for high-voltage distribution systems requiring precision electronic trip functionality.

• Trip Unit Type: MicroLogic 2.3 Electronic
• Rated Current: 400A at 40 degrees C
• Poles: 4 poles 4D
• Compatibility: Compact NSX 400/630 Circuit Breakers
• Rated Operational Voltage: 690V AC 50/60 Hz
• Protection Functions: Long-time Overload and Instantaneous Short-circuit (LSoI)
• Protection Type: Electronic
• Manufacturer: Schneider Electric

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LV432085
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Compact
• Type : LV4
• Voltage : 690
• Poles : 3
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Amperage Maximum : 400
• Amperage Minimum : 400
• Protection : Solid State
• Compatible Frames : NS,NSF,NSX,NFNF,NFNL,NFHF,NFHL
• Trip Type : MicroLogic 2.3

Product Data

• UPC : 606480016359
• GTIN : 03606480016356
• Dimensions : Depth 19.69 in (500 mm) Width 51.18 in (1300 mm) Height 82.68 in (2100 mm)
• Weight : 3.931
• Standards : EN/IEC 60947-2, UL 508
