LV429410 - Schneider Electric Undervoltage Release MN 24VDC ComPacT NSX

LV429410

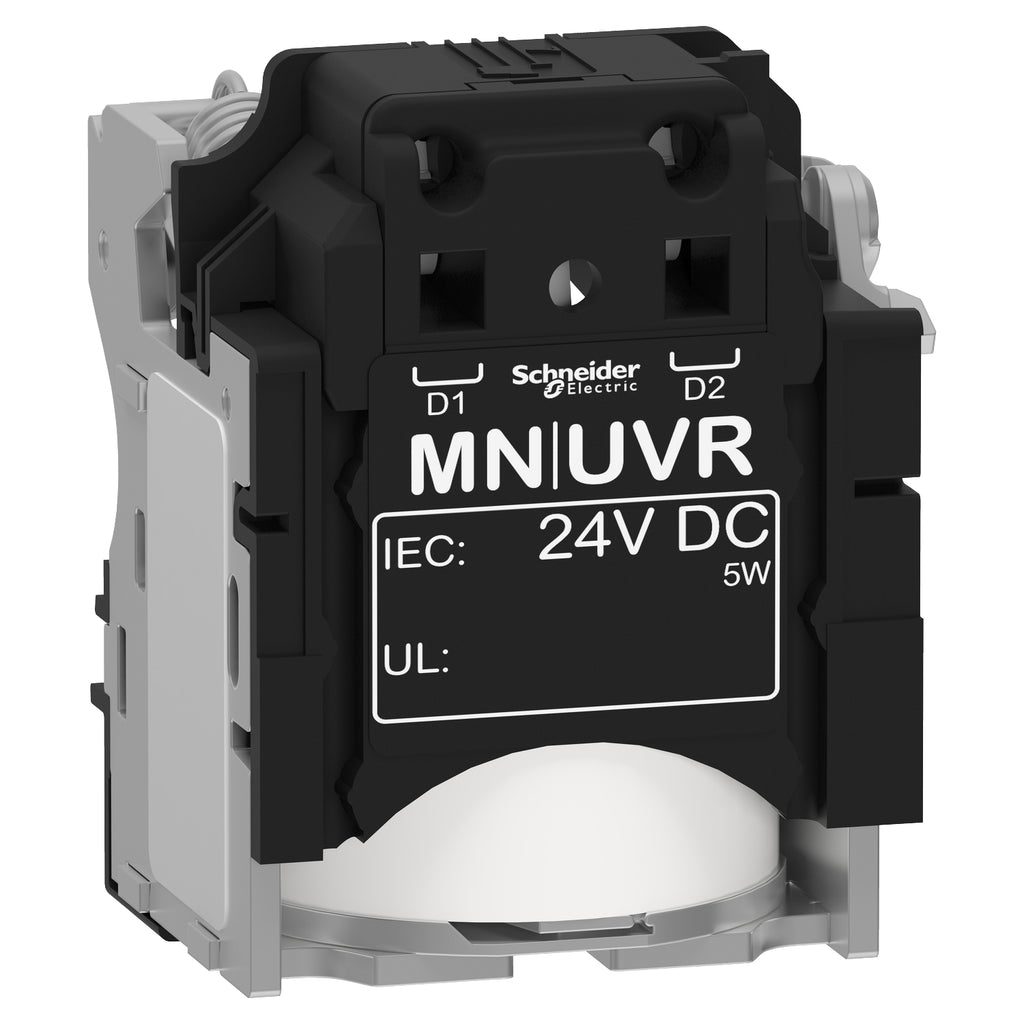

LV429410 is an undervoltage release auxiliary designed for Compact NSX, PowerPact Multistandard, and EasyPact CVS circuit breakers. This MN-type voltage release provides emergency off and remote opening control functionality for power distribution systems requiring undervoltage protection. LV429410 features screwless spring terminal connections for simplified installation and maintenance, with an estimated 40% reduction in wiring time for panel builders. The device opens the circuit breaker when control voltage drops below 35% of its rated voltage, ensuring reliable circuit protection during voltage anomalies. It complies with IEC 60947-2 standards and carries UL Listed and CSA Certified designations as a circuit breaker accessory.

• Rated Control Voltage: 24 VDC
• Device Type: Undervoltage Release (Opening Coil)
• Voltage Release Type: MN
• Compatible Breakers: ComPacT NSX, PowerPact Multistandard, EasyPact CVS
• Operating Threshold: 0.35 to 0.7 x Un opening, 0.85 x Un closing
• Response Time: 50 ms
• Supply Holding Power: 5 W
• Supply Inrush Power: 10 W
• Terminal Connection: Screwless Spring (0.5 to 1.5 mm²)
• Wire Stripping Length: 7 mm
• Certifications: UL Listed, CSA Certified, IEC 60947-2
• Warranty: 18 months
• Country of Origin: France

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LV429410
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Under Voltage Release
• Family : Compact
• Type : LV4
• Control Voltage Minimum : 24
• Compatible Frames : NS,NSF,NSX,NFNF,NFHF,NFNL,NFHL,NSJ,NJNF,NJNL,NJHF,NJHL
• Control Voltate Maximum : 24

Product Data

• UPC : 606480018995
• Country of Origin : Poland
• Weight : 0.273
