Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
LMXD63S800A

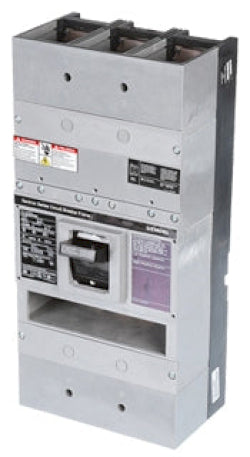

LMXD63S800A is a Siemens Type LMXD6 molded case circuit breaker rated for 800 amps and 600 volts AC with 3 poles and bolt-on mounting.This Siemens LMXD63S800A circuit breaker features a thermal magnetic trip unit, a 25 kA interrupt rating at 600 VAC, and is designed for low voltage power distribution applications.
- Amperage: 800 A
- Voltage: 600 VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 25 kA at 600 VAC
- Frame/Series: LMXD6
- Trip Unit: Thermal Magnetic
- Type: Molded Case Circuit Breaker
- Standards/Certifications: UL Listed
Additional Information
Lugs are not included
Specifications
- Part Number: LMXD63S800A
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : LMXD
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Bolt-On
- Functions : No Overcurrent Protection
- Frame Size : LMD Frame
- Protection : Non-Automatic
Product Data
- UPC : 783643302617
- GTIN : 00783643302617
- Country of Origin : Mexico
- Weight : 32
- Certification : Ul Listed
