Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
LMXD63M800

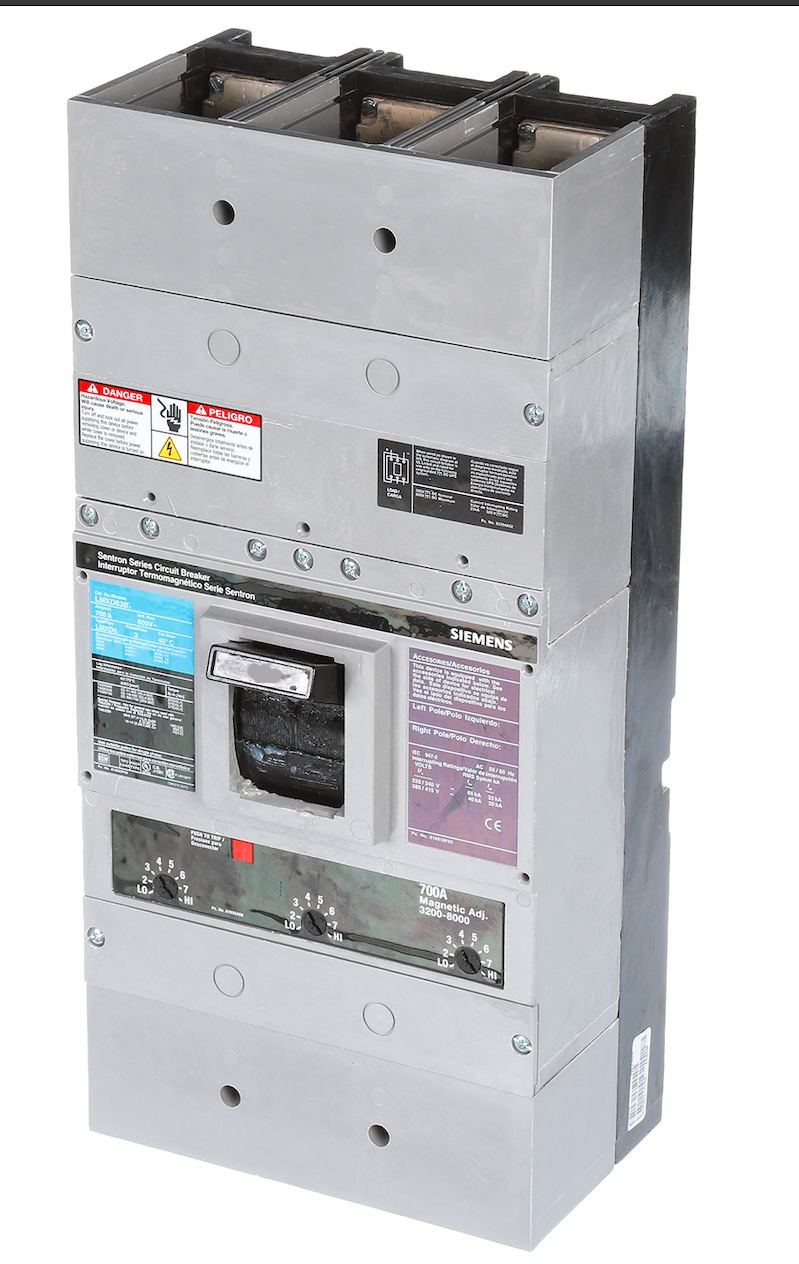

LMXD63M800 is a Siemens Sentron Series molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This 3-pole, 800A, 600V breaker features a bolt-on mounting style and is rated for 25kAIC at 600V and 50kAIC at 480V, making it suitable for demanding electrical environments. The unit is calibrated for 50C and does not include lugs, allowing for flexible field installation. It is engineered for use in main or feeder applications where high interrupting capacity and durability are required. The LMXD63M800 is part of the LMD frame family and is built to meet rigorous industry standards for safety and performance. Its design supports easy integration into existing panels and offers dependable thermal/magnetic trip protection. The breaker is suitable for use in a wide range of applications, including motor circuits and general power distribution.
- Part Number: LMXD63M800
- Manufacturer: Siemens
- Series: Sentron
- Frame: LMD
- Amperage: 800A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 25kAIC at 600V, 50kAIC at 480V
- Calibration: 50C
- Lugs: Not Included
- Trip Unit: Thermal/Magnetic
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: LMXD63M800
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : LMXD
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : LMD Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643322028
- GTIN : 00783643322028
- Country of Origin : Mexico
- Weight : 31.001
