Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
LMXD63M700

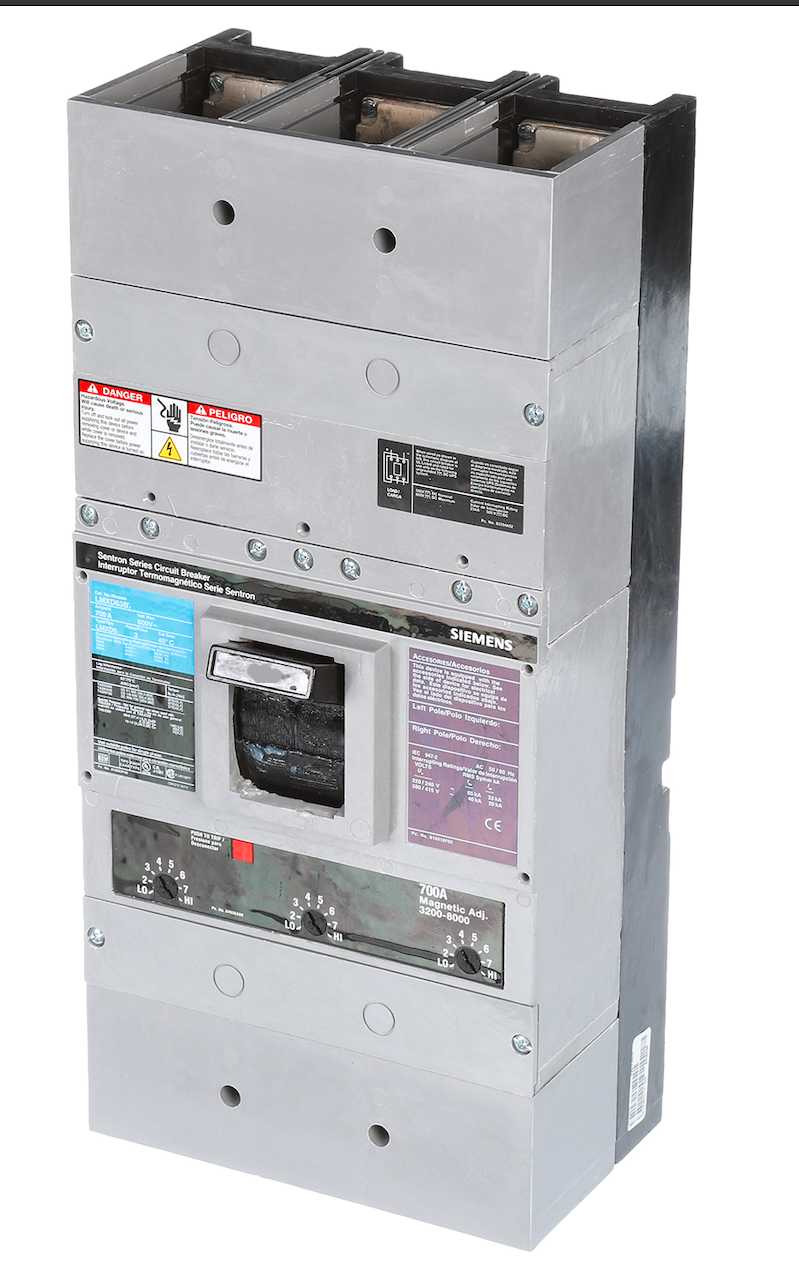

LMXD63M700 is a Siemens Sentron LMD series molded case circuit breaker designed for industrial power distribution applications requiring reliable thermal/magnetic trip protection.Frame Amps: 800 ATrip Amps: 700 APoles: 3Voltage Rating: 600 VACInterrupt Rating: 25 kATrip Unit: Thermal/MagneticSeries: LMD (Sentron)Maximum Operating Temperature: +40 degrees CKey Specifications
- Current Rating: 700 A
- Voltage Rating AC: 600 VAC
- Number of Poles: 3 Pole
- Frame Amps: 800 A
- Interrupt Rating: 25 kA
- Trip Unit: Thermal/Magnetic
- Series: LMD (Sentron)
- Maximum Operating Temperature: +40 degrees C
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: LMXD63M700
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : LMXD
- Voltage : 600
- Amperage : 700
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : LMD Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643326255
- GTIN : 00783643326255
- Country of Origin : Mexico
- Weight : 31.001
