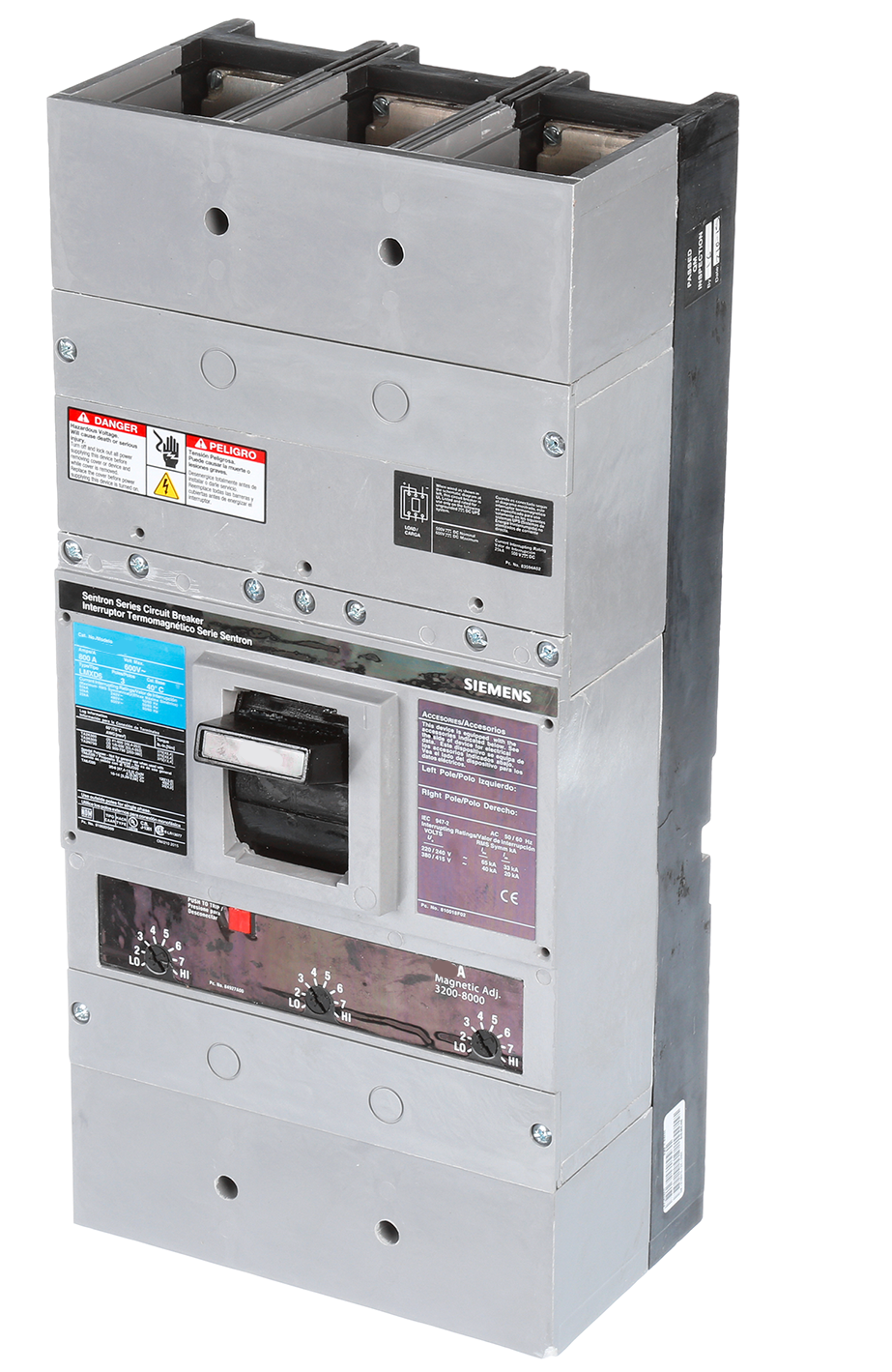

LMXD62M600 - Siemens 600V 600A 2-Pole Molded Case Circuit Breaker

LMXD62M600

LMXD62M600 is a Siemens Sentron Series molded case circuit breaker designed for motor circuit protection and disconnect applications. This 2-pole, 600-volt breaker features a magnetic-only trip unit with high in-rush current capability of 450 percent and a push-to-trip button for manual operation. The breaker is suitable for use in welding circuits, motor circuits, and combination starters, with an interrupting rating of 25,000A RMS symmetrical at 600 volts AC per UL 489 standards. It is calibrated for 40 degrees Celsius ambient temperature and operates at 50/60 Hz frequency. The LMD frame design provides a compact, bolt-on connection suitable for industrial and commercial power distribution applications.

• Voltage Rating: 600V AC
• Amperage Rating: 600A
• Number of Poles: 2
• Trip Unit: Magnetic Only Motor Circuit Protector
• Frame Size: LMD Frame
• Interrupting Rating: 25,000A RMS Symmetrical at 600V AC
• In-Rush Current Capability: 450 percent
• Frequency: 50/60 Hz
• Ambient Temperature Rating: 40 degrees Celsius
• Connection Type: Bolt-On
• Certifications: UL 489, CSA, IEC 60947-2
• Series: Sentron

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: LMXD62M600
• Manufacturer : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : LMXD
• Voltage : 600
• Amperage : 600
• Phase : 1
• Poles : 2
• AIC rating : 50kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : LMD Frame
• Protection : Thermal Magnetic

Product Data

• Weight : 55
