Description
LMD63T800

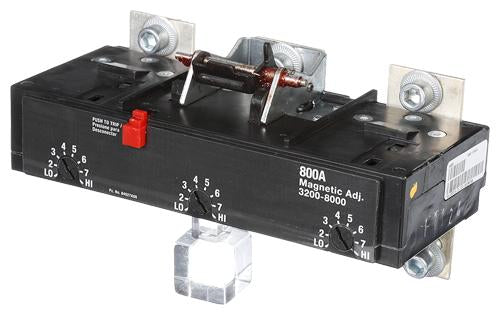

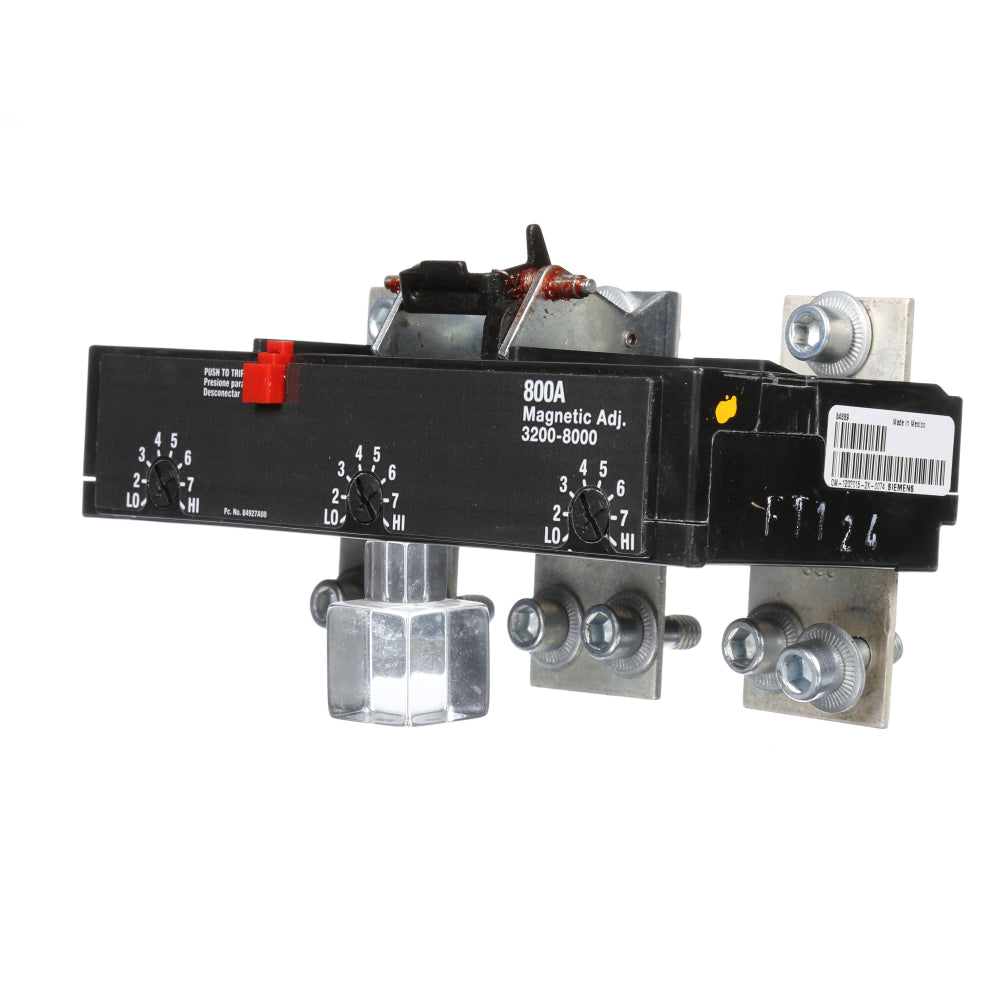

LMD63T800 is a Siemens 800 Amp, 3-pole, 600 Volt molded case circuit breaker trip unit designed for reliable circuit protection in commercial and industrial applications.
This thermal magnetic trip unit is compatible with Siemens Sentron Series LMD and HLMD frame circuit breakers, offering long-time and instantaneous overcurrent protection. It meets UL 489 and IEC 60947-2 standards for safety and performance, ensuring compliance with rigorous electrical codes.
-
Key Specifications
- Amperage: 800A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Fixed (molded case)
- Interrupt Rating: 25kA at 600V, 50kA at 480V
- Series/Frame: LMD, HLMD
- Trip Unit: Thermal magnetic (LI – Long-time and Instantaneous)
- Certifications: UL 489, IEC 60947-2
- Application: Commercial, industrial power distribution
- Protection Functions: Overload, short circuit
- Compatibility: Siemens Sentron Series
- Dimensions: Standard LMD frame size
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: LMD63T800
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Trip Unit
- Family : Sentron Series
- Type : LMD
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Bolt-On
- Functions : LI - Long Time and Instantaneous Trip
- Amperage Maximum : 800
- Protection : Thermal Magnetic
- Compatible Frames : LMD,HLMD
Product Data
- UPC : 783643268173
- GTIN : 00783643268173
- Country of Origin : Mexico
- Weight : 2.795
- Wire Size : AWG 1/0 to 500KCM, Cu/Al
