LJL36600U31XSA - Schneider Electric 600A 600V 3 Pole PowerPact L Circuit Breaker 65kA@480V

LJL36600U31XSA

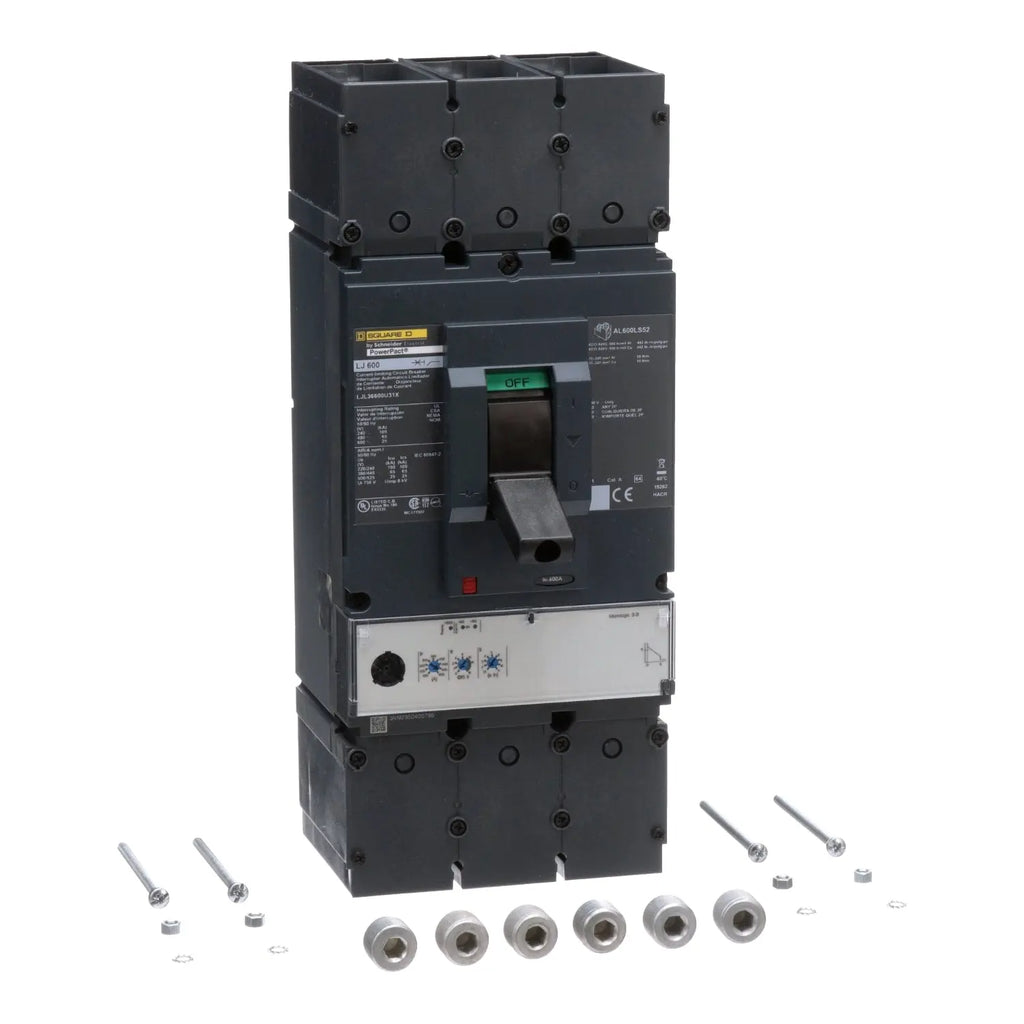

LJL36600U31XSA is a 3 pole, 600 amp, 600 volt PowerPact L molded case circuit breaker from Schneider Electric designed for reliable overload and short circuit protection.This circuit breaker features a 65kA interrupting rating at 480V, current limiting technology, and a feed-thru design suitable for demanding industrial and commercial applications. It includes a MicroLogic 3.3 trip unit and is UL 489 listed with multiple international certifications.

Key Specifications
• Amperage: 600A
• Voltage Rating: 600V AC
• Poles: 3 Pole
• Interrupting Rating: 65kA at 480V AC
• Frame/Series: PowerPact L
• Trip Unit: MicroLogic 3.3
• Mounting Type: Feed-Thru
• Certifications: UL 489, CSA, NEMA, IEC, CE
• Current Limiting: Yes
• Application: Industrial/Commercial Panel Protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 110-130V shunt trip

Specifications

• Part Number: LJL36600U31XSA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LJL
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : L Frame
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Protection : Solid State

Product Data

• GTIN : 00785901891635
• Dimensions : Height 13.39 in (340 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
• Weight : 20
• Standards : UL, CSA, NEMA, NOM, IEC
• Certification : UL, CSA, NEMA, NOM, IEC
