LJA36600U43X - Schneider Electric 600A 3-pole, 600 Vac, I-Line, Micrologic 5.xA LSI with ammeter

LJA36600U43X

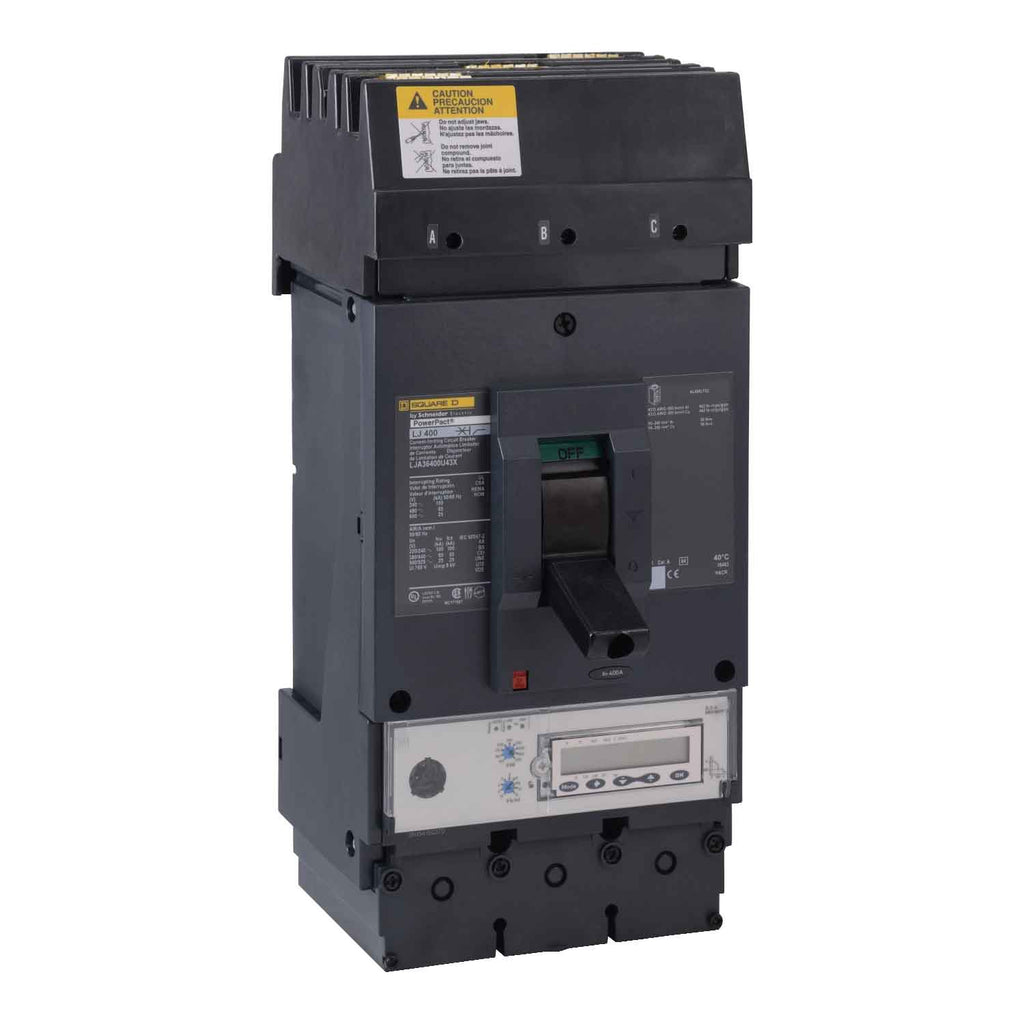

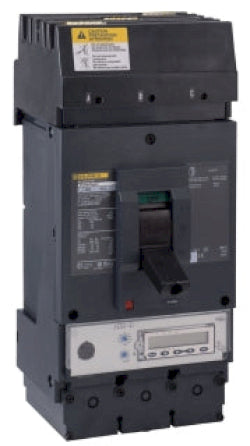

LJA36600U43X is a PowerPact L-Frame 600A 3-pole molded case circuit breaker for 600 Vac I-Line applications, providing electronic protection with Micrologic 5.xA LSI with ammeter. This LJA catalog variant features I-Line plug-on line terminations and load-side lugs for straightforward panelboard integration. Suffix decoding is included below to document the exact trip unit and factory options for this configured breaker.

• Frame: PowerPact L-Frame
• Poles: 3-pole
• Amperage: 600 A
• Voltage: 600 Vac
• Construction: I-Line line side, load lugs standard
• Trip unit: Micrologic 5.xA LSI with ammeter

Suffix meanings in this catalog number

• 80% rated continuous current (standard)
• I-Line plug-on line side; mechanical lugs on load side

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Terminal lug AL600LS52K3

Specifications

• Part Number: LJA36600U43X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LJA
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : L Frame
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Protection : Solid State

Product Data

• UPC : 785901486916
• GTIN : 00785901486916
• Country of Origin : United States
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 13.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
