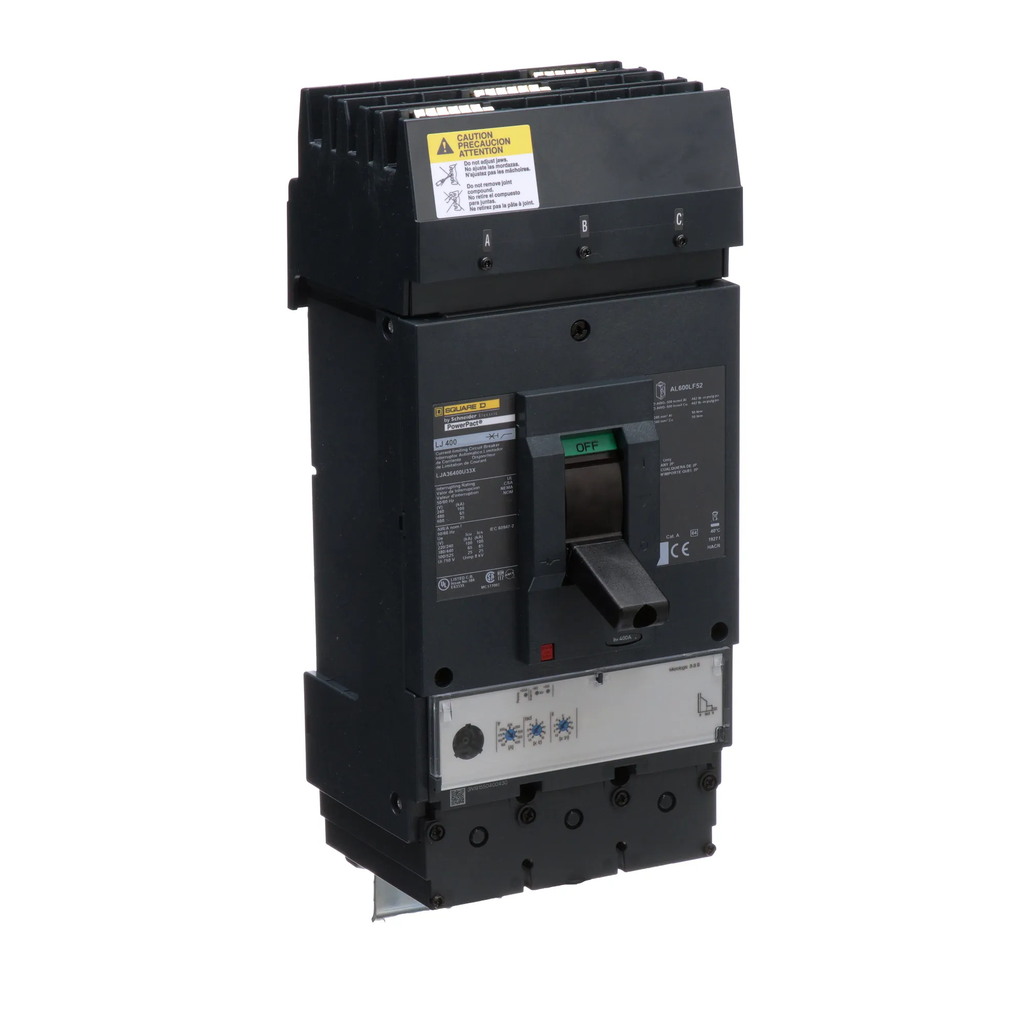

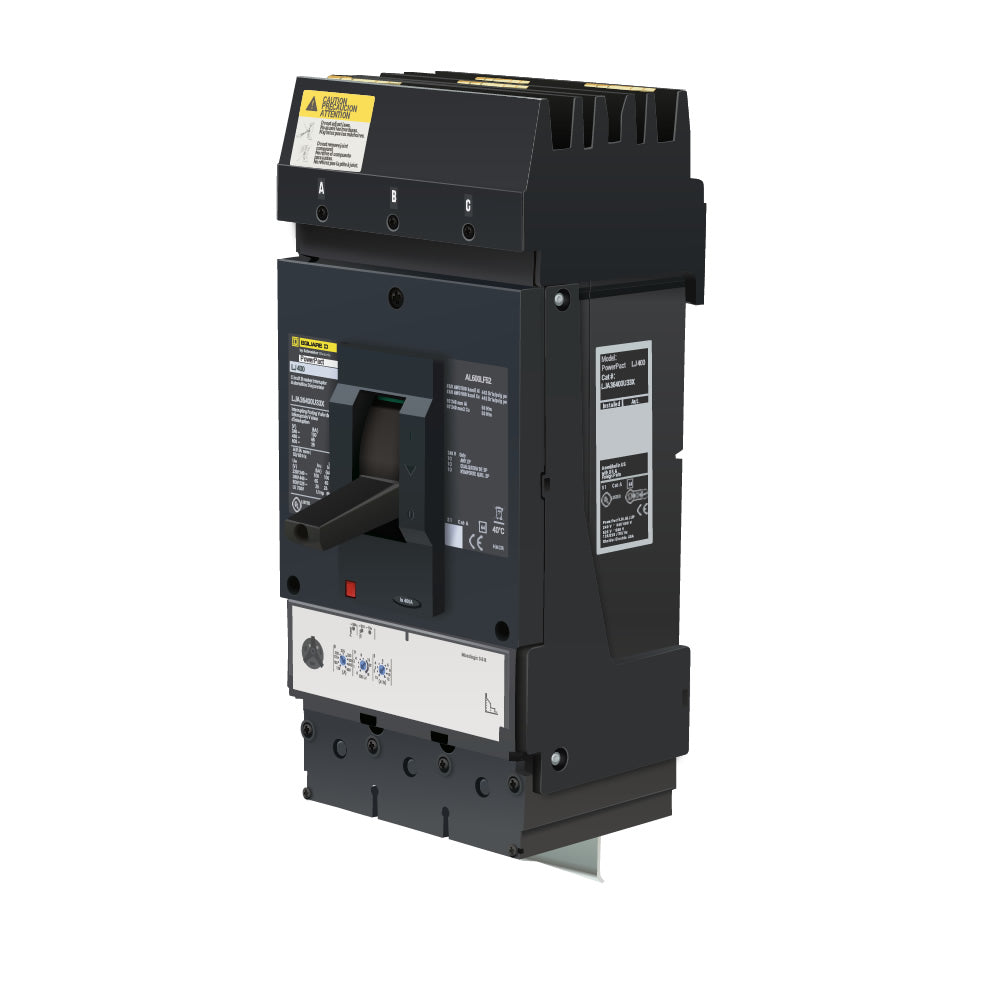

LJA36400U33X - Square D 400A 600V 3-Pole I-Line Molded Case Circuit Breaker, PowerPact L Frame, Micrologic 3.3S Trip Unit

Save $5,494.15
SKU: LJA36400U33X-New
Condition: New
Price:
$3,871.85 $9,366.00
Stock:
54 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

LJA36400U33X - Schneider Electric/ Square D I-Line Style Plug-In 400 Amp 3 Pole Circuit Breaker - Essential Electric Supply
LJA36400U33X - Square D 400A 600V 3-Pole I-Line Molded Case Circuit Breaker, PowerPact L Frame, Micrologic 3.3S Trip Unit - Essential Electric Supply
LJA36400U33X - Square D 400A 600V 3-Pole I-Line Molded Case Circuit Breaker, PowerPact L Frame, Micrologic 3.3S Trip Unit - Essential Electric Supply
LJA36400U33X - Square D 400A 600V 3-Pole I-Line Molded Case Circuit Breaker, PowerPact L Frame, Micrologic 3.3S Trip Unit - Essential Electric Supply
LJA36400U33X - Square D 400A 600V 3-Pole I-Line Molded Case Circuit Breaker, PowerPact L Frame, Micrologic 3.3S Trip Unit - Essential Electric Supply
LJA36400U33X - Square D 400A 600V 3-Pole I-Line Molded Case Circuit Breaker, PowerPact L Frame, Micrologic 3.3S Trip Unit - Essential Electric Supply
LJA36400U33X - Square D 400A 600V 3-Pole I-Line Molded Case Circuit Breaker, PowerPact L Frame, Micrologic 3.3S Trip Unit - Essential Electric Supply
LJA36400U33X - Square D 400A 600V 3-Pole I-Line Molded Case Circuit Breaker, PowerPact L Frame, Micrologic 3.3S Trip Unit - Essential Electric Supply
LJA36400U33X - Square D 400A 600V 3-Pole I-Line Molded Case Circuit Breaker, PowerPact L Frame, Micrologic 3.3S Trip Unit - Essential Electric Supply
LJA36400U33X - Square D 400A 600V 3-Pole I-Line Molded Case Circuit Breaker, PowerPact L Frame, Micrologic 3.3S Trip Unit - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
LJA36400U33X - Schneider Electric/ Square D I-Line Style Plug-In 400 Amp 3 Pole Circuit Breaker - Essential Electric Supply
LJA36400U33X - Square D 400A 600V 3-Pole I-Line Molded Case Circuit Breaker, PowerPact L Frame, Micrologic 3.3S Trip Unit - Essential Electric Supply
LJA36400U33X - Square D 400A 600V 3-Pole I-Line Molded Case Circuit Breaker, PowerPact L Frame, Micrologic 3.3S Trip Unit - Essential Electric Supply
LJA36400U33X - Square D 400A 600V 3-Pole I-Line Molded Case Circuit Breaker, PowerPact L Frame, Micrologic 3.3S Trip Unit - Essential Electric Supply
LJA36400U33X - Square D 400A 600V 3-Pole I-Line Molded Case Circuit Breaker, PowerPact L Frame, Micrologic 3.3S Trip Unit - Essential Electric Supply
LJA36400U33X - Square D 400A 600V 3-Pole I-Line Molded Case Circuit Breaker, PowerPact L Frame, Micrologic 3.3S Trip Unit - Essential Electric Supply
LJA36400U33X - Square D 400A 600V 3-Pole I-Line Molded Case Circuit Breaker, PowerPact L Frame, Micrologic 3.3S Trip Unit - Essential Electric Supply
LJA36400U33X - Square D 400A 600V 3-Pole I-Line Molded Case Circuit Breaker, PowerPact L Frame, Micrologic 3.3S Trip Unit - Essential Electric Supply
LJA36400U33X - Square D 400A 600V 3-Pole I-Line Molded Case Circuit Breaker, PowerPact L Frame, Micrologic 3.3S Trip Unit - Essential Electric Supply
LJA36400U33X - Square D 400A 600V 3-Pole I-Line Molded Case Circuit Breaker, PowerPact L Frame, Micrologic 3.3S Trip Unit - Essential Electric Supply

Description

LJA36400U33X


LJA36400U33X is a 3-pole molded case circuit breaker from Square D designed for reliable power distribution and protection.This circuit breaker features a 400 Amp current rating and 600 Volt AC voltage rating with an I-Line plug-in mounting style. It includes a PowerPact L frame and a Micrologic 3.3S electronic trip unit with long time, short time, and instantaneous protection functions. The breaker has interrupting ratings of 65kA at 480VAC, 100kA at 240VAC, and 25kA at 600VAC. It is UL 489, CSA, CE, NMX, CCC, and IEC certified for safety and performance.
  • Manufacturer: Square D
  • Part Number: LJA36400U33X
  • Amperage: 400A
  • Voltage: 600 VAC
  • Poles: 3
  • Mounting Type: I-Line plug-in
  • Interrupting Rating: 65kA @ 480V, 100kA @ 240V, 25kA @ 600V
  • Frame/Series: PowerPact L
  • Trip Unit: Micrologic 3.3S (LSI - long time, short time, instantaneous)
  • Certifications: UL 489, CSA, CE, NMX, CCC, IEC

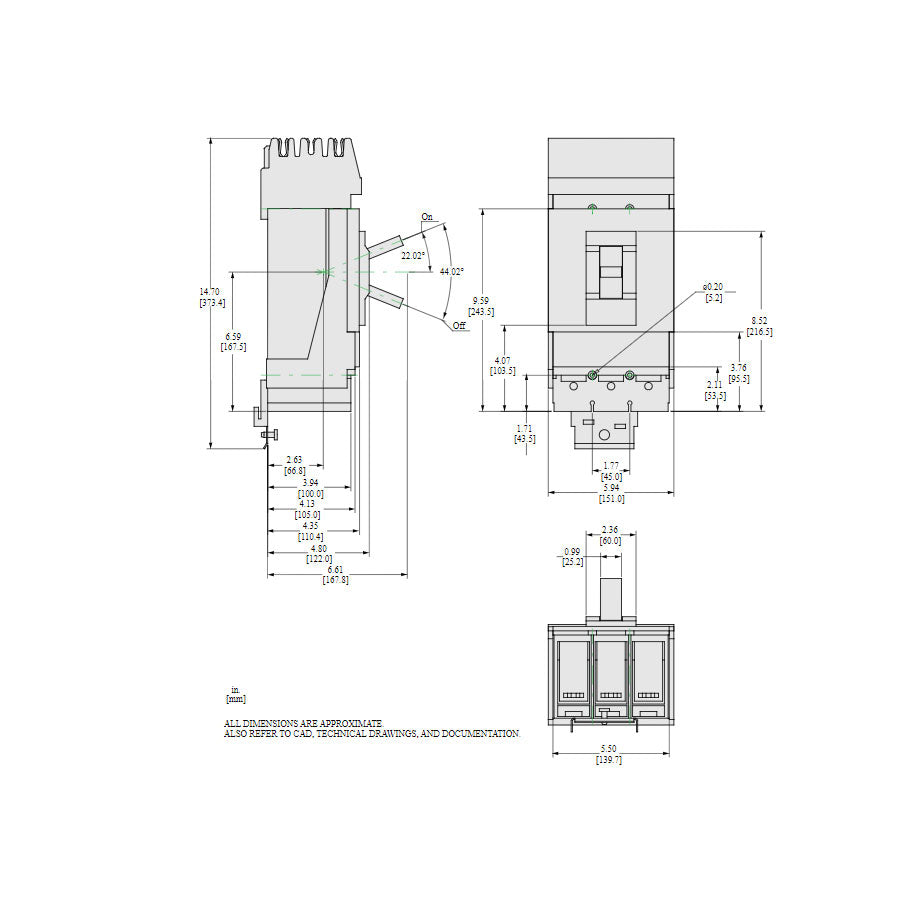

  • Dimensions (HxWxD): approx. 14.7 x 5.94 x 6.61 inches
  • Wire Size Range: AWG 3/0 to 500 kcmil aluminum/copper
At Essential Par(more...)

Additional Information

Terminal lug AL600LF52K3


Specifications

  • Part Number: LJA36400U33X
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : LJA
  • Voltage : 600
  • Amperage : 400
  • Phase : 3
  • Poles : 3
  • AIC rating : 65kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : Long Time, Short Time and Instantaneous Trip
  • Terminal Connection : I-Line, Lug
  • Frame Size : L Frame
  • Temp Rating : 28-158 ¡F (-2-70 ¡C)
  • MCM Size : Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 500 kcmil (Cu/Al)
  • Protection : Solid State
  • Phase Connection : ABC

Product Data

  • UPC : 785901807957
  • GTIN : 00785901807957
  • Country of Origin : Mexico
  • Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
  • Weight : 18.23 lb
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 3/0...500 kcmil aluminium/copper
