LHL36400 - Square D 400A 3-Pole 600V Thermal Magnetic Molded Case Circuit Breaker

LHL36400

LHL36400 is a Square D 400 Amp, 3-pole, 600 Volt thermal magnetic molded case circuit breaker designed for reliable overload and short circuit protection.This circuit breaker features thermal and magnetic trip units for precise current interruption, a 25kA interrupt rating at 600VAC, and is suitable for unit mount and I-Line construction. It supports manual circuit opening and automatic interruption for overload or short circuit conditions, with push-to-trip functionality for safe manual tripping.

• Amperage: 400A
• Voltage Rating: 600VAC, 250VDC
• Poles: 3
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 25kA at 600VAC, 50kA at 250VDC
• Mounting Type: Unit mount and I-Line compatible
• Series/Frame: LH
• Certifications: UL, CSA

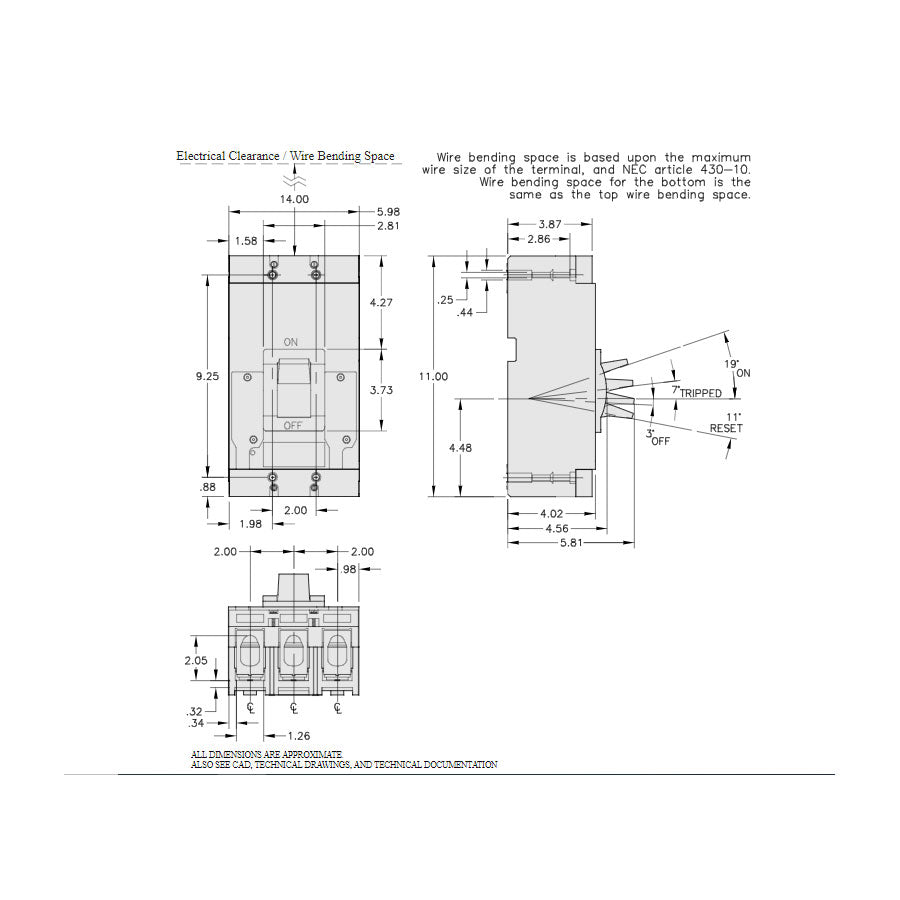

• Dimensions: Approx. 6" W x 5.84" D x 11" H
• Push-to-Trip feature for manual tripping

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LHL36400
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LHL Series
• Type : LHL
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : H
• Protection : Thermal Magnetic

Product Data

• UPC : 785901339380
• GTIN : 00785901339380
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 16.12
• Standards : CSA, IEC, UL Listed
• Certification : CSA, IEC, UL Listed
