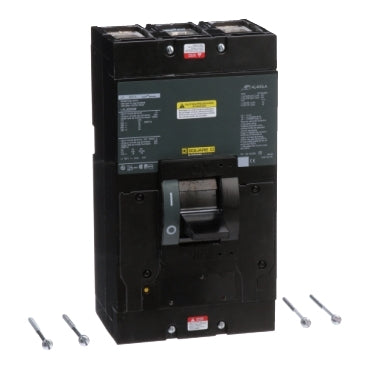

LHL36000M - Square D LHL 400A 600VAC 3 Pole Molded Case Circuit Breaker Thermal Magnetic Unit Mount

LHL36000M

LHL36000M is a Square D LHL series 3 pole molded case circuit breaker rated for 400A at 600VAC, featuring thermal-magnetic trip and unit mounting for reliable protection in industrial and commercial power distribution applications.This Square D LHL36000M circuit breaker provides high interrupting capacity and is designed for use in main or feeder circuits requiring dependable overcurrent protection. The unit mount design allows for easy installation, while the feed-thru connection type supports flexible wiring configurations. It is UL, CSA, and IEC listed, meeting RoHS and HACR standards for safety and compliance.

• Part Number: LHL36000M
• Manufacturer: Square D
• Series/Frame: LHL
• Amperage: 400A
• Voltage: 600VAC, 250VDC
• Poles: 3
• Mounting Type: Unit Mount
• Interrupting Rating: 35kAIC at 480V
• Protection Type: Thermal-Magnetic
• Connection Type: Feed-Thru, Line and Load Side Lug
• Certifications: UL, CSA, IEC, RoHS, HACR
• Functions: Instantaneous Trip

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LHL36000M
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LHL Series
• Type : LHL
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : I - Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : H
• Protection : Magnetic Only

Product Data

• UPC : 785901042273
• GTIN : 00785901042273
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 15.999
• Standards : IEC, CSA, UL Listed
• Certification : IEC, CSA, UL Listed
• Wire Size : 1 AWG to 600 kcmil (Aluminium/Copper) 1 cable(s) 1 AWG to 250 kcmil (Aluminium/Copper) 2 cable(s)
