LHL36250 - Square D 250A 3 Pole 600VAC Molded Case Circuit Breaker L Frame Thermal Magnetic

LHL36250

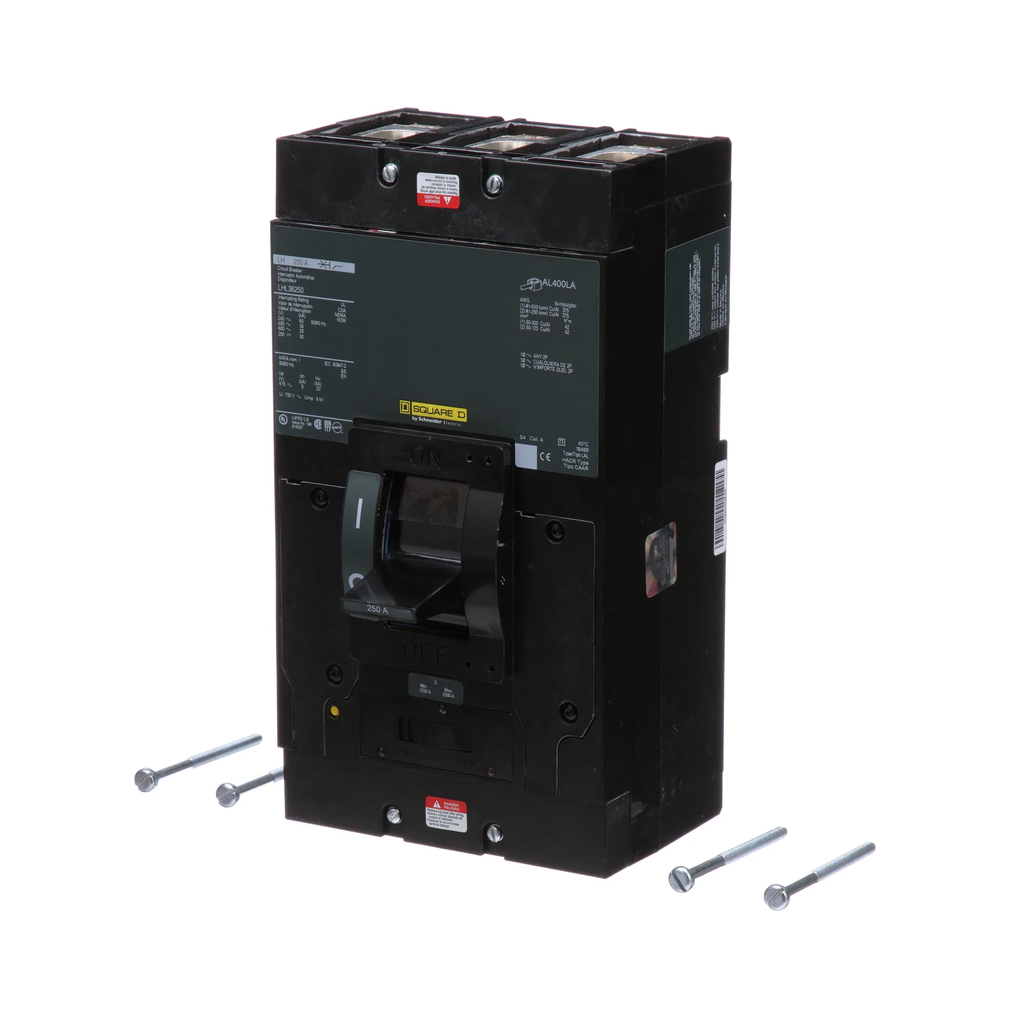

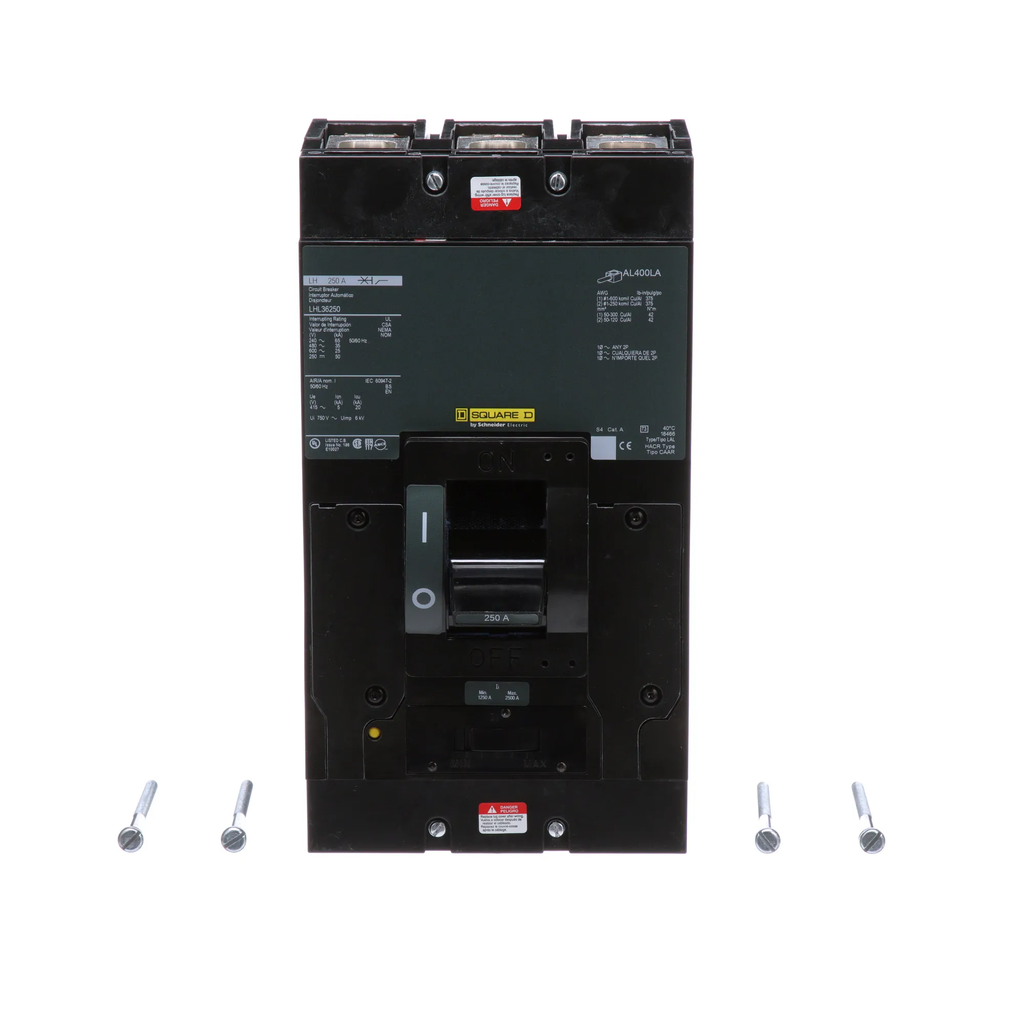

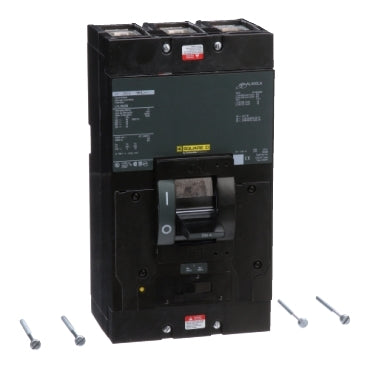

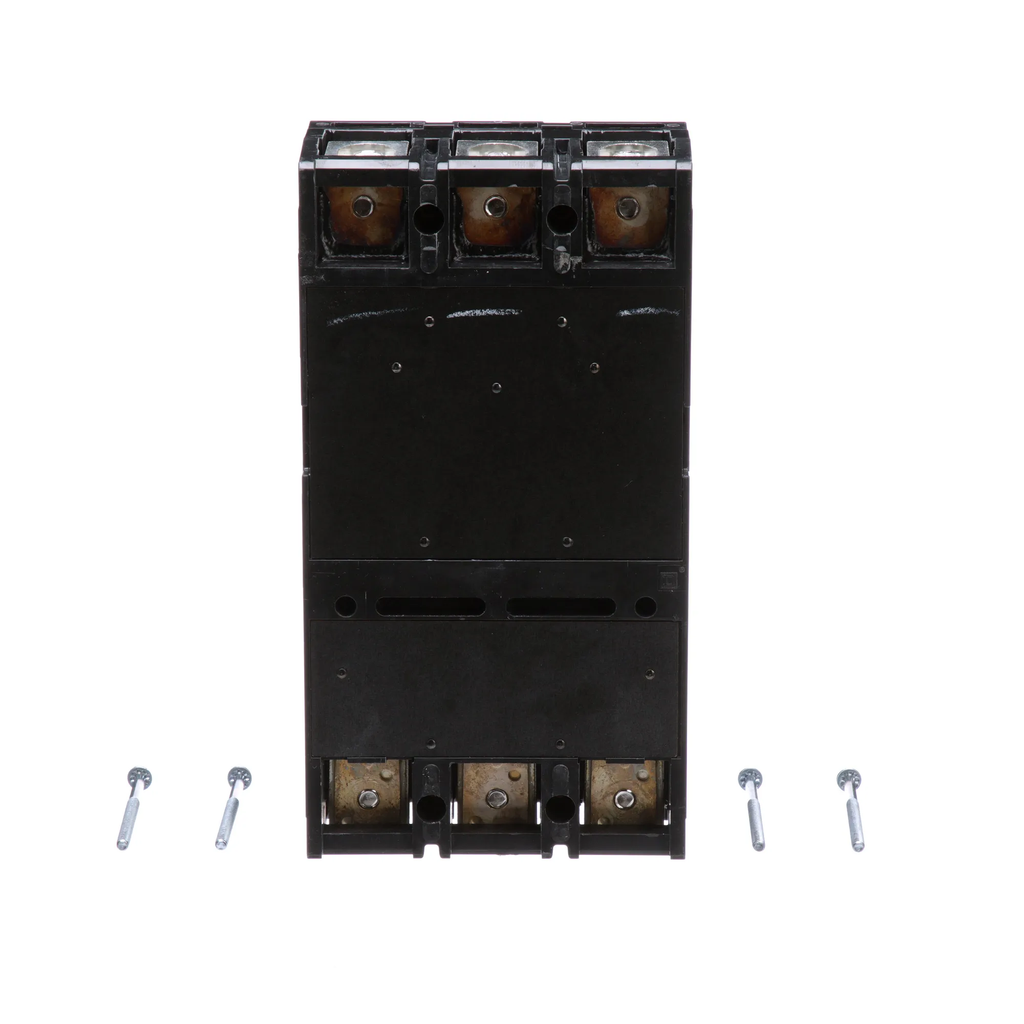

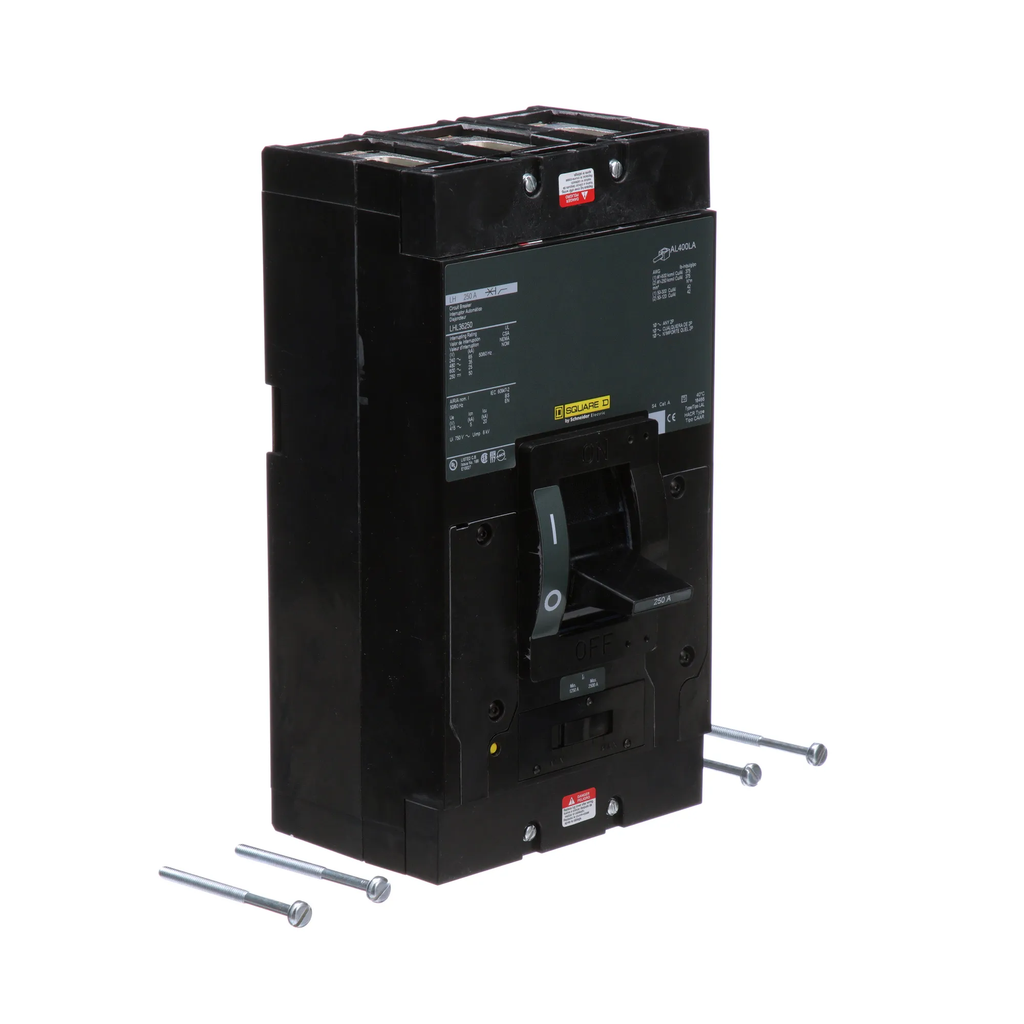

LHL36250 is a Square D 3 pole molded case circuit breaker rated for 250 amps and 600VAC, designed for reliable thermal magnetic protection.This LHL36250 breaker features a thermal magnetic trip unit providing automatic overload and short circuit protection. It has a plug-on mounting type with line and load lug terminals, an interrupting rating of 25kA at 600VAC and 50kA at 250VDC, and is UL, CSA, and CE certified. The breaker measures approximately 6 inches wide, 5.84 inches deep, and 11 inches high, suitable for industrial and commercial applications requiring high interrupting capacity and robust construction.

Key Specifications
• Amperage: 250A
• Voltage Rating: 600VAC, 250VDC
• Poles: 3
• Mounting Type: Plug-On
• Interrupting Rating: 25kA at 600VAC, 50kA at 250VDC
• Frame/Series: LHL (L Frame)
• Trip Unit: Thermal Magnetic
• Terminal Type: Line and Load Lugs
• Approvals: UL Listed, CSA, CE Certified
• Dimensions: 6" W x 5.84" D x 11" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LHL36250
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LHL Series
• Type : LHL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 400A/LA
• MCM Size : Min. Wire Size 1/0 AWG Max. Wire Size 250 MCM, 600 MCM
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901339366
• GTIN : 00785901339366
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 16.711
• Standards : CSA, IEC, UL Listed
• Certification : CSA, IEC, UL Listed
