Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LHL36000M8041

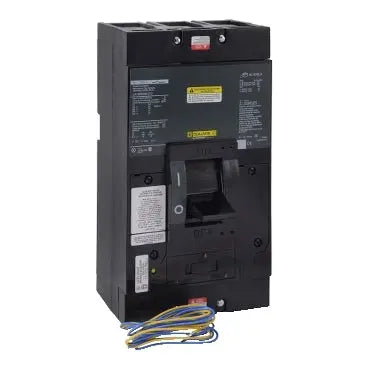

LHL36000M8041 is a Square D 3 pole molded case circuit breaker rated for 400 amps and 600 volts, designed for reliable circuit protection in industrial applications.This circuit breaker features a 3 pole configuration with a 25kA interrupting rating at 600VAC and 50kA at 250VDC, suitable for high-power electrical systems. It belongs to the LH Q4 frame series and includes continuous wire terminals for secure connections. The breaker is designed for feed-thru mounting and provides robust protection with its molded case construction.
- Manufacturer: Square D
- Part Number: LHL36000M8041
- Amperage: 400A
- Voltage Rating: 600V AC
- Poles: 3
- Interrupting Rating: 25kA at 600VAC, 50kA at 250VDC
- Frame/Series: LH Q4
- Mounting Type: Feed-Thru
- Terminal Connection: Continuous wire terminal
- Type: Molded Case Circuit Breaker
- Certifications: Meets industry standards for circuit protection
Specifications
- Part Number: LHL36000M8041
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : I - Instantaneous
- Protection : Magnetic Only
Product Data
- UPC : 785901539063
- Country of Origin : Mexico
- Dimensions : Depth 17.75 in (450.85 mm) Width 36.62 in (930.15 mm) Height 69.13 in (1755.90 mm)
- Weight : 20
