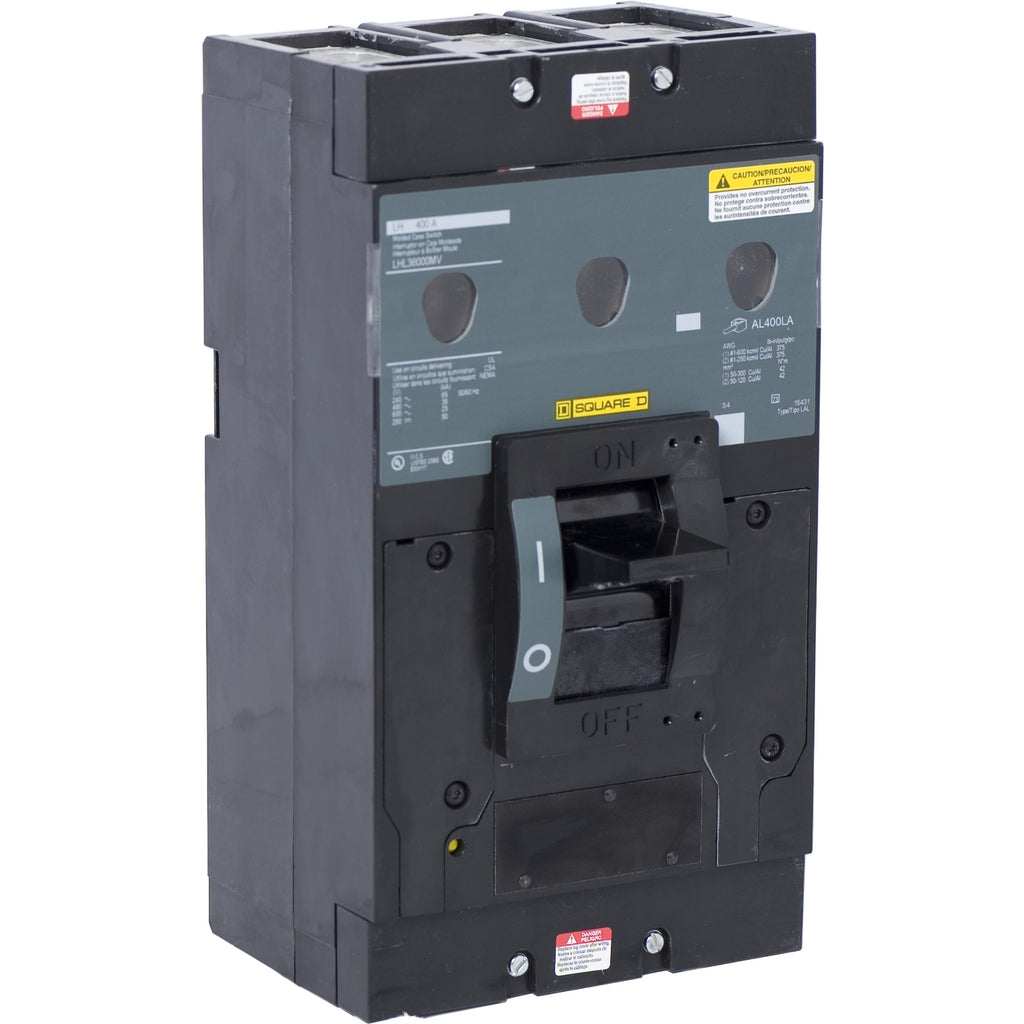

LHL36000MV - Square D 400A 600V 3-Pole LH Frame Molded Case Circuit Breaker Visi-Blade

LHL36000MV

LHL36000MV is a 400 amp, 3-pole molded case circuit breaker from Square D designed for reliable power distribution and protection.The LHL36000MV features a 600 volt maximum rating and LH frame size with a unit mount design. It utilizes a thermal-magnetic trip unit and includes a Visi-Blade indicator for visual status. This breaker offers high interrupting ratings suitable for industrial applications, including 35kA at 480V and 65kA at 240V, ensuring robust fault current interruption capability. It is UL 489, CSA, and IEC listed for safety and performance compliance.

• Amperage: 400 Amp
• Voltage Rating: 600 VAC, 250 VDC
• Poles: 3
• Frame Type: LH Frame
• Mounting Type: Unit Mount
• Trip Unit: Thermal-Magnetic
• Interrupt Rating: 35kA at 480V, 65kA at 240V, 25kA at 600V, 50kA at 250V DC
• Visi-Blade indicator for visual status
• Certifications: UL 489, CSA, IEC Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LHL36000MV
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LHL Series
• Type : LHL
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : I - Instantaneous
• Terminal Connection : Lug
• Frame Size : H
• Protection : Magnetic Only

Product Data

• UPC : 78590199845
• GTIN : 00785901998457
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 16.061
• Standards : CSA, UL Listed, IEC
• Certification : CSA, UL Listed, IEC
