Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LHL26400MB

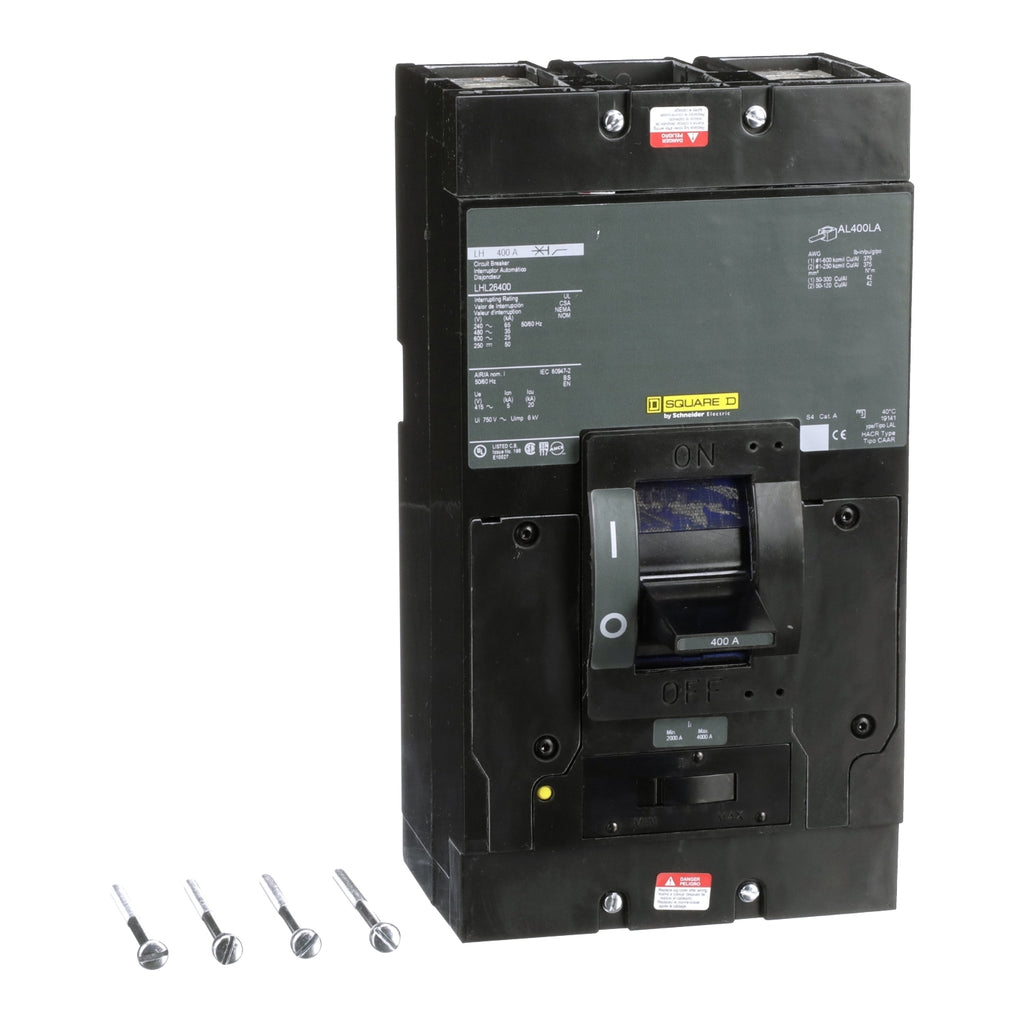

LHL26400MB is a 2 pole, 400A, 600V molded case circuit breaker with thermal magnetic protection and a 35kAIC interrupting rating at 480V. This Square D LHL series breaker is designed for reliable protection in commercial and industrial applications. The LHL26400MB features a unit mounting type, feed-thru connection, and includes both long time and instantaneous trip functions. It is UL, CSA, and IEC listed, and meets RoHS and REACh standards. The breaker is equipped with line and load side lugs and a short lever actuator for easy operation.
- Part Number: LHL26400MB
- Manufacturer: Square D
- Series/Frame: LHL
- Amperage: 400A
- Voltage: 600VAC, 250VDC
- Poles: 2
- Mounting Type: Unit
- Interrupting Rating: 35kAIC at 480V
- Protection Type: Thermal Magnetic
- Functions: Long Time and Instantaneous Trip
- Terminal Connection: Line and Load Side Lug
- Certifications: UL, CSA, IEC, RoHS, REACh
Specifications
- Part Number: LHL26400MB
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : LHL Series
- Type : LHL
- Voltage : 600
- Amperage : 400
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 785901236030
- GTIN : 00785901236030
- Country of Origin : Mexico
- Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
- Weight : 14.6
