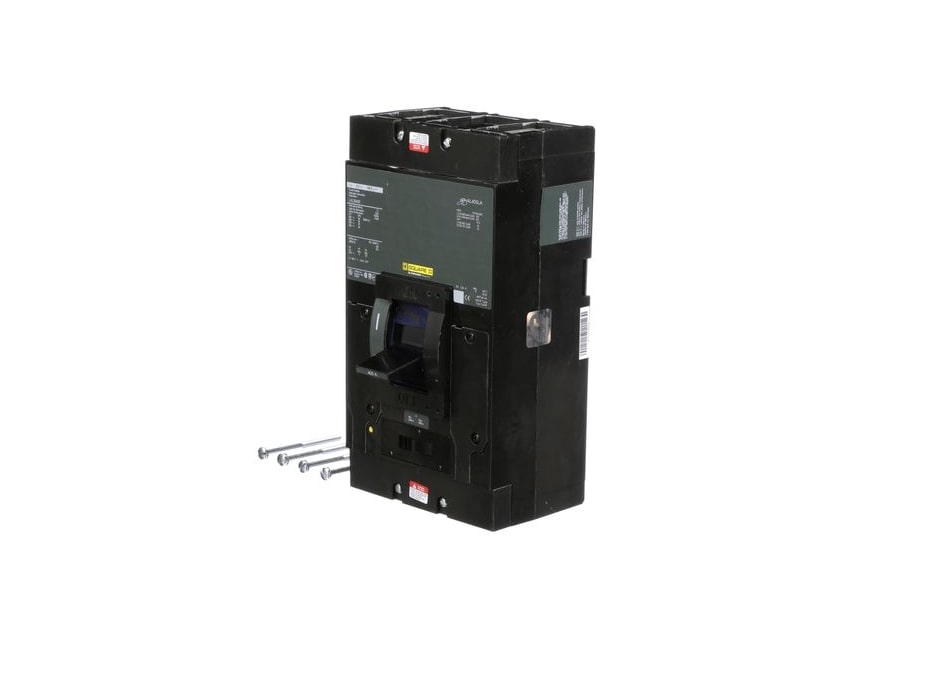

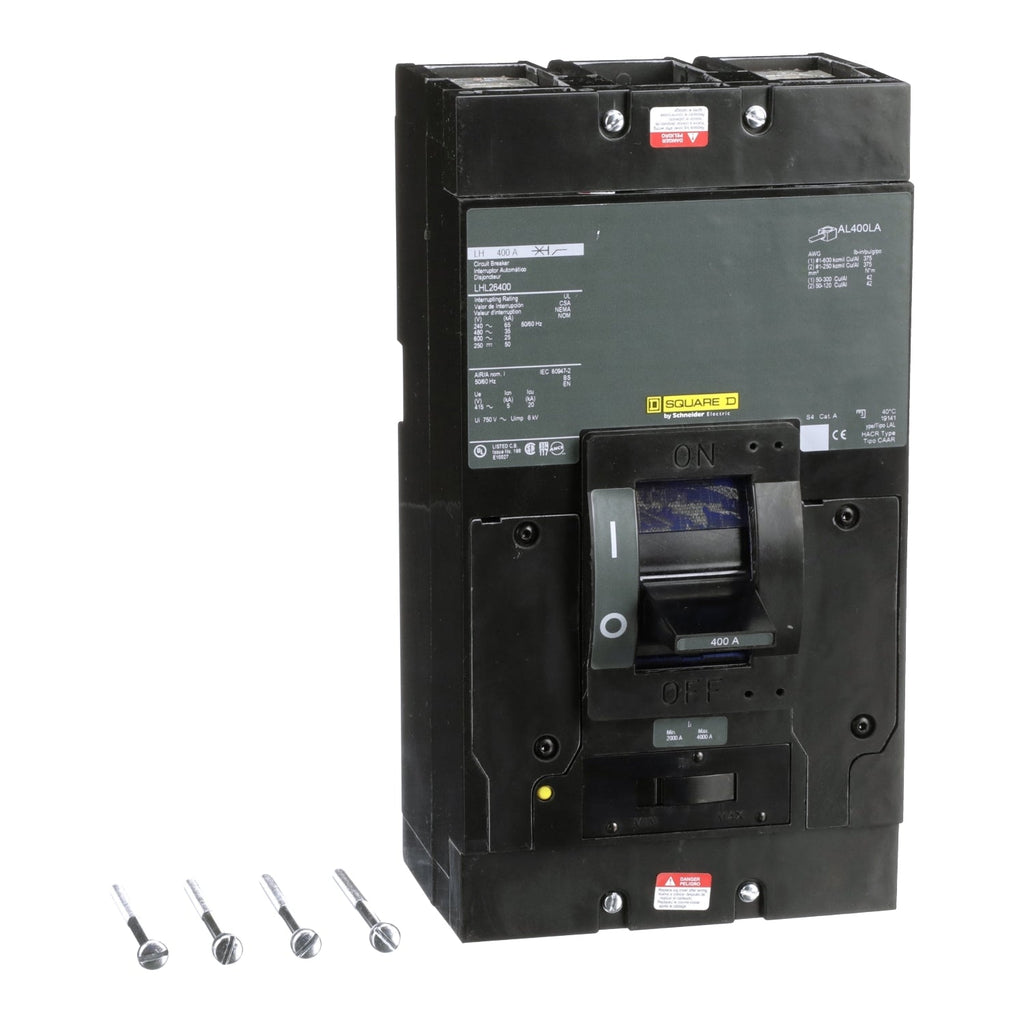

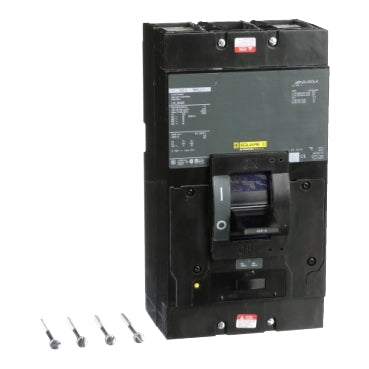

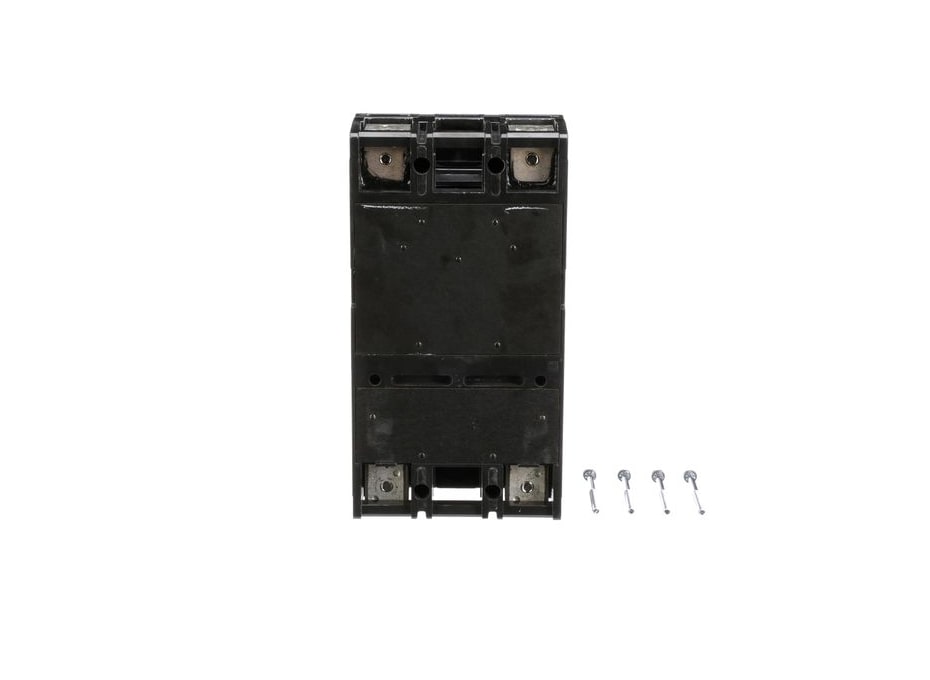

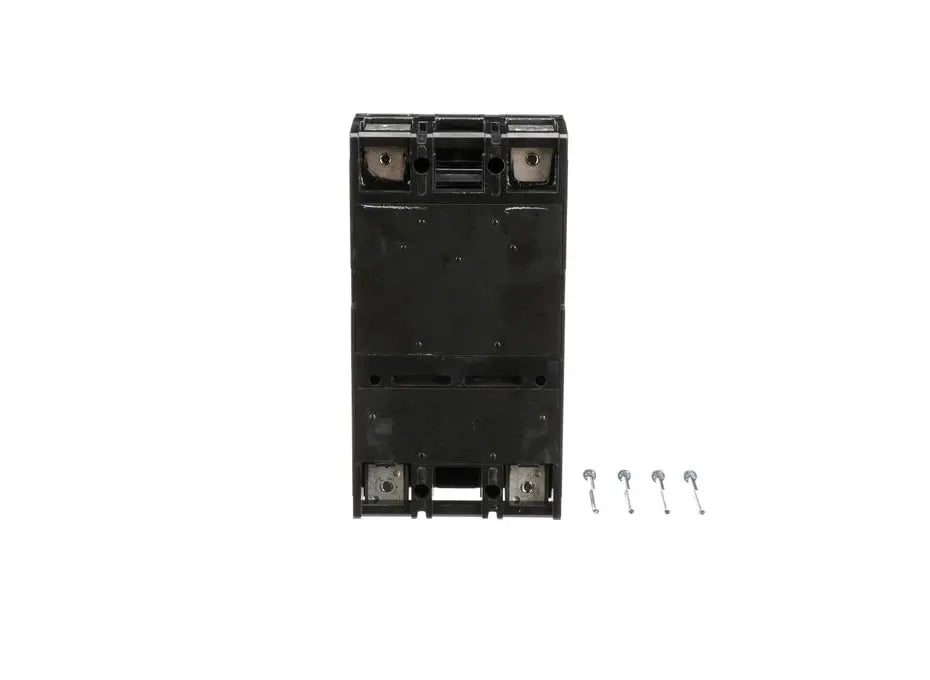

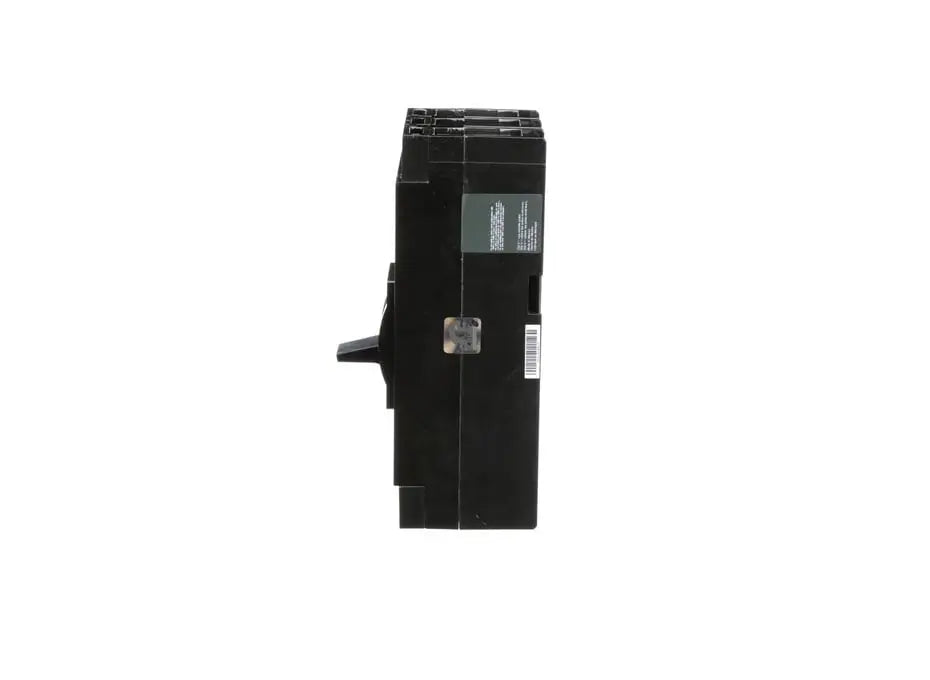

LHL26400 - Square D 400A 600V 2 Pole Molded Case Circuit Breaker Thermal Magnetic

LHL26400

LHL26400 is a Square D 2 pole molded case circuit breaker rated for 400 amps and 600 volts AC with thermal magnetic trip unit.

This circuit breaker features a high interrupting capacity suitable for industrial and commercial power distribution applications. It has a 2 pole configuration, lug terminal connections, and is designed for panel mounting. The breaker is UL and CSA certified, with interrupt ratings of 65kA at 240VAC, 35kA at 480VAC, and 25kA at 600VAC. It belongs to the LHL series/frame and provides reliable protection with long-time and instantaneous trip functions.

Key Specifications
• Amperage: 400A
• Voltage Rating: 600V AC, 250V DC max
• Poles: 2
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC
• Mounting Type: Panel Mount
• Terminal Connection: Lug
• Series/Frame: LHL
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LHL26400
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LHL Series
• Type : LHL
• Voltage : 600
• Amperage : 400
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : H
• Protection : Thermal Magnetic

Product Data

• UPC : 785901042259
• GTIN : 00785901042259
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 14.29
• Standards : CSA, IEC, UL Listed
• Certification : CSA, IEC, UL Listed
• Wire Size : AWG 1, 600 kcmil aluminium/copper)1, AWG 1, 250 kcmil aluminium/copper)2
