Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description

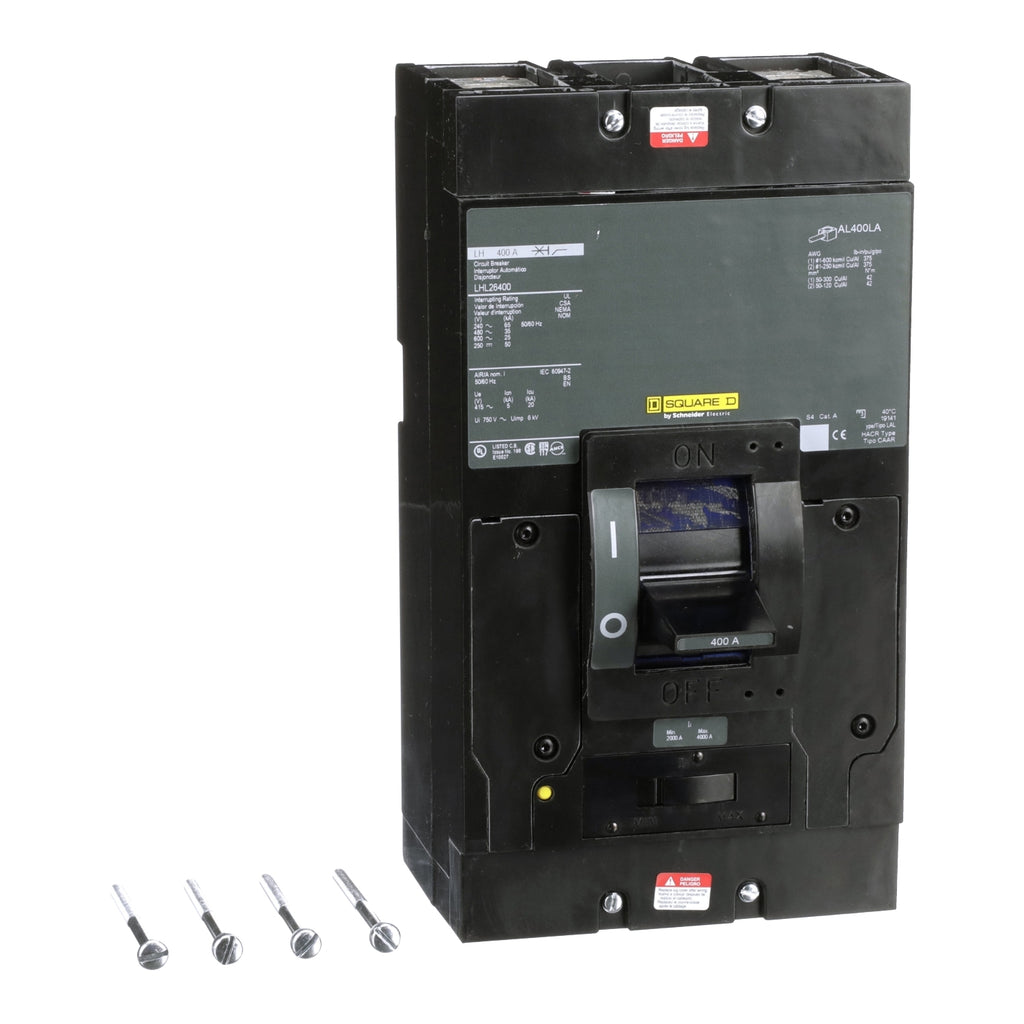

LHL26400V
LHL26400V is a Square D PowerPact molded case circuit breaker designed for industrial power distribution applications. This 2-pole, 400-ampere unit operates at 600 volts and features thermal-magnetic trip technology with long-time and instantaneous protection functions. The breaker delivers high interrupting capacity suitable for demanding electrical systems and is equipped with line and load side lug terminals for secure connections.
- Amperage Rating: 400A
- Voltage Rating: 600V
- Number of Poles: 2
- Series: LHL (L Frame)
- Trip Unit: Thermal-Magnetic with Long-Time and Instantaneous Functions
- Interrupting Rating: 35kA at 480VAC
- Connection Type: Feed-Thru with Lugs
- Mounting: Unit Mount
- Dimensions: 11.0 inches H x 6.0 inches W x 5.84 inches D
- Phase: Single Phase
Specifications
- Part Number: LHL26400V
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : LHL Series
- Type : LHL
- Voltage : 600
- Amperage : 400
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : L Frame
- Protection : Thermal Magnetic
Product Data
- Dimensions : Depth 5.84 in (148.34 mm) Width 6 in (152.40 mm) Height 11 in (279.40 mm)
- Weight : 18
