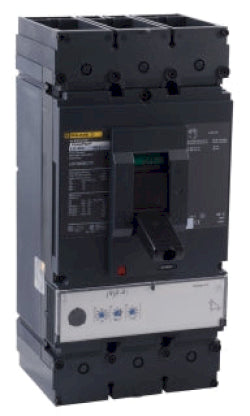

LGF36600 - Square D 600A 3-Pole 600V PowerPacT L-Frame Molded Case Circuit Breaker

LGF36600

LGF36600 is a 600 amp, 3-pole molded case circuit breaker designed for 600 Volt applications by Square D.LGF36600 belongs to the PowerPacT L-Frame series and provides reliable protection against overloads and short circuits in electrical distribution systems. It features a 35kA interrupting rating at 480V and is suitable for use as a main panel disconnect or in control panels. This breaker is UL 489 listed and certified to multiple standards including CSA, NEMA, IEC, and CE.

• Amperage: 600A
• Voltage Rating: 600V AC
• Poles: 3
• Series/Frame: PowerPacT L-Frame
• Interrupt Rating: 35kA at 480V
• Trip Unit: Micrologic 3.3 (optional accessory)
• Mounting Type: Molded Case
• Certifications: UL 489, CSA, NEMA, IEC, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item is Frame only as definded by the part number. That means it is only the circuit breaker frame, and no lugs or trip unit is included with the frame.

Specifications

• Part Number: LGF36600
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LGF
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Frame Size : L Frame
• Protection : Solid State

Product Data

• Country of Origin : United States
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 17
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
