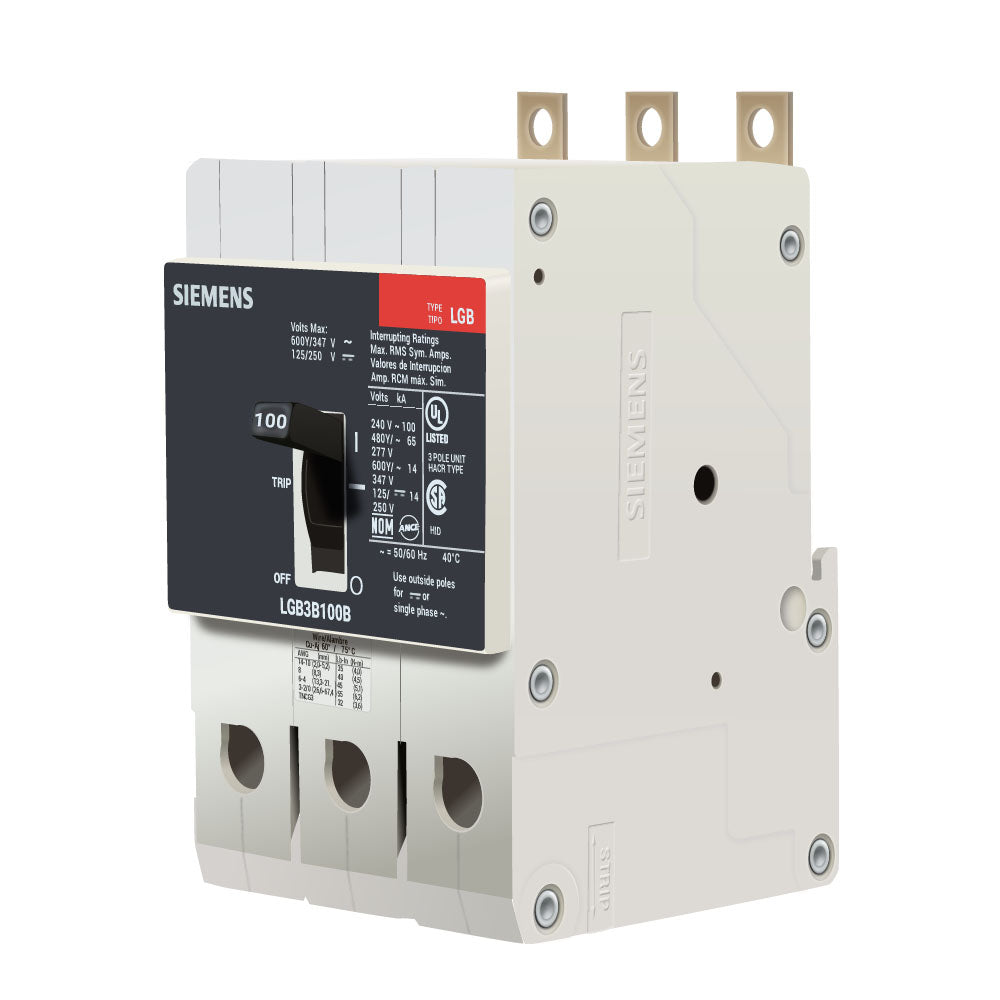

LGB3B100B - Siemens 100A 600V 3-Pole LGB Frame Molded Case Circuit Breaker with Thermal-Magnetic Trip

LGB3B100B

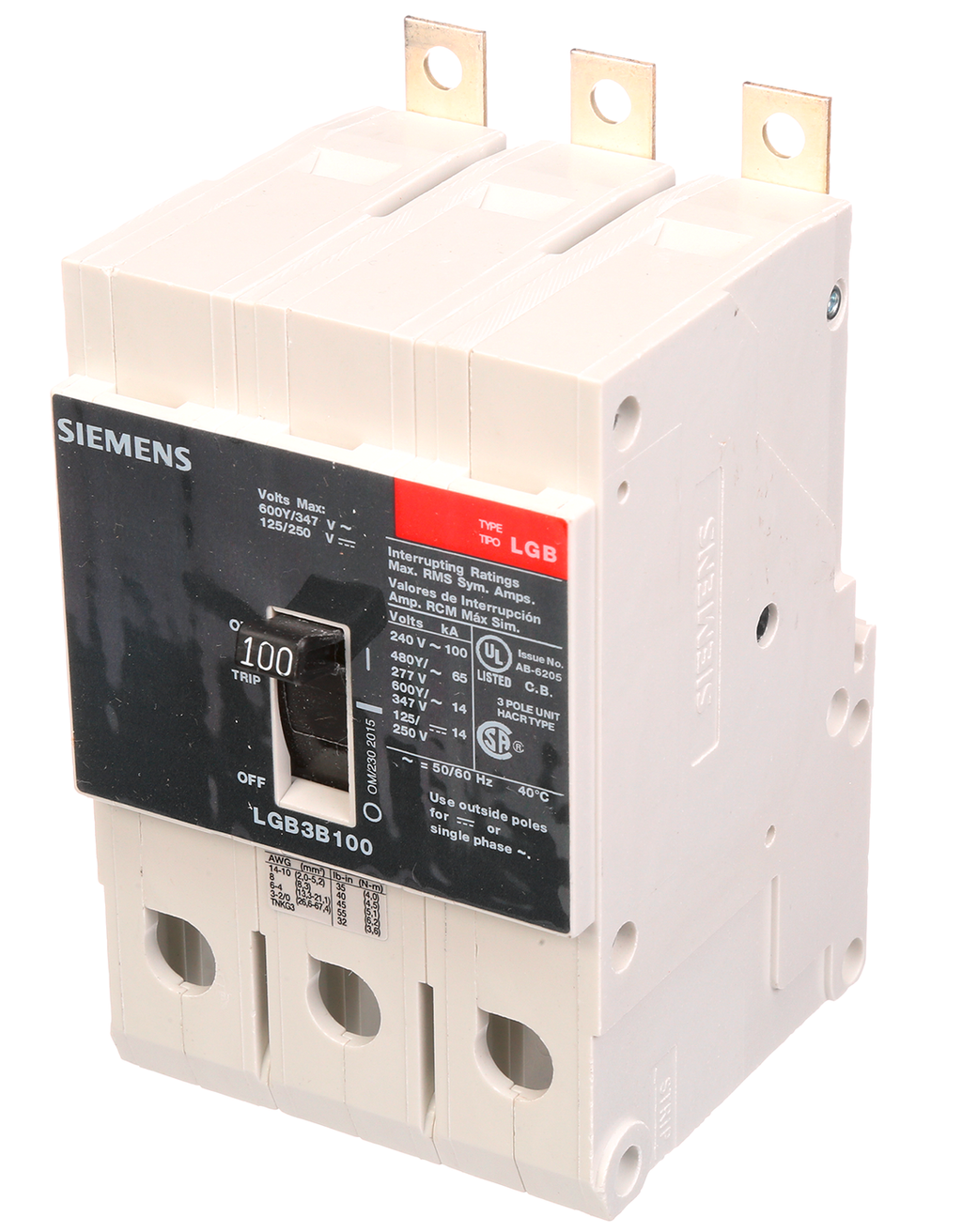

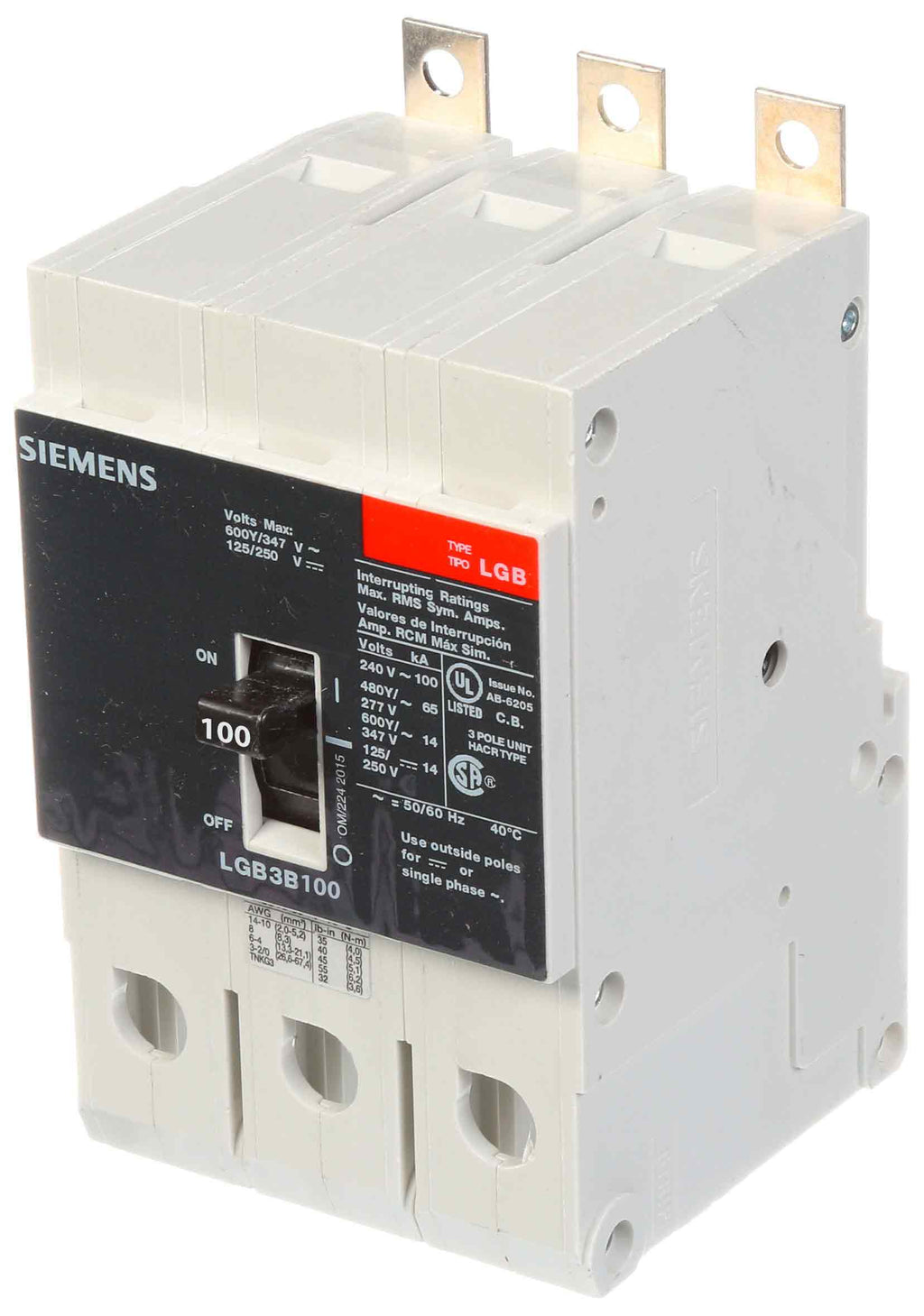

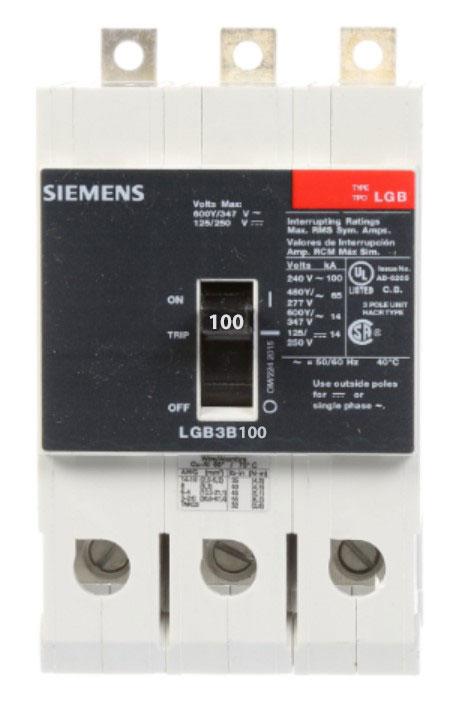

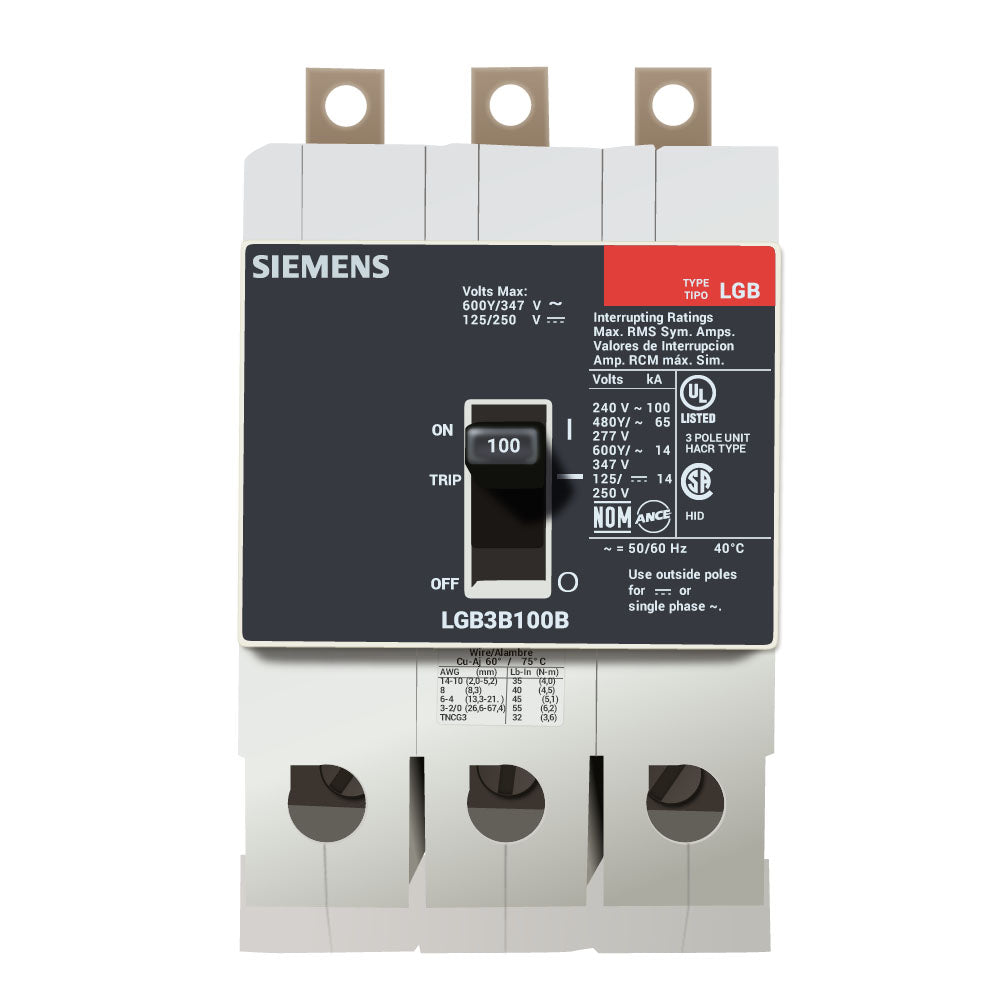

LGB3B100B is a Siemens low voltage panelboard mount molded case circuit breaker with a 100 amp rating and 3 poles.This UL listed LGB frame breaker features a thermal-magnetic trip unit and very high interrupting capacity of 14kA at 600Y/347V and 65kA at 480Y/277V. It is designed for load side lugs only and supports wire sizes from 8 AWG to 1/0 AWG copper or aluminum. The breaker has compact dimensions of 3 x 5.4 x 2.8 inches and is suitable for panelboard mounting.

Key Specifications
• Amperage: 100A
• Voltage Rating: 600V
• Poles: 3
• Frame/Series: LGB
• Trip Unit: Thermal-Magnetic
• Interrupt Rating: 14kA at 600Y/347V, 65kA at 480Y/277V
• Mounting Type: Panelboard Mount
• Wire Range: 8 AWG to 1/0 AWG CU/AL
• UL Listed
• Load Side Lugs Only
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LGB3B100B
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : VL Series
• Type : LGB
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic



Product Data

• UPC : 887621220334
• GTIN : 00887621220334
• Country of Origin : Mexico
• Dimensions : 2.961 x 2.87 x 4.1006
• Weight : 2.756 lb
• Certification : UL, CSA, IEC, NOM
• Wire Size : 8 - 1/0 AWS (CU/AL)
