Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
LGB3B045B

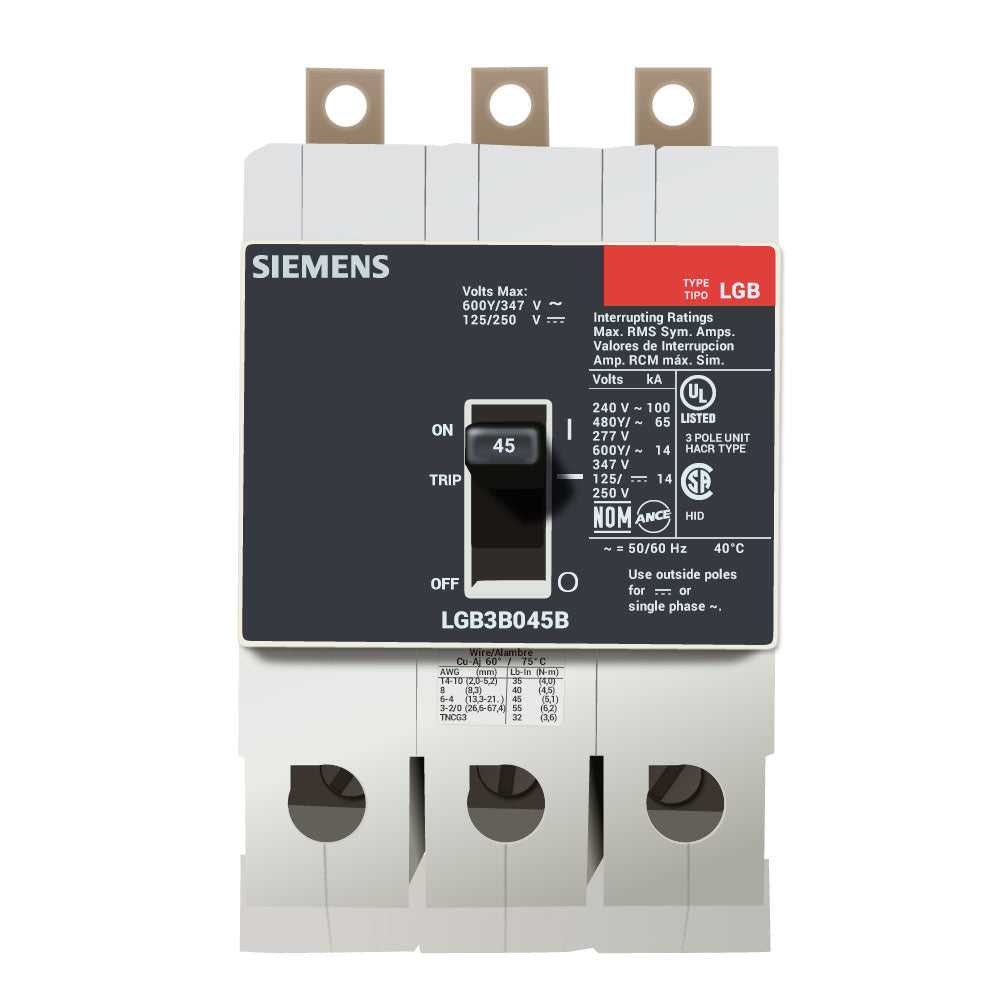

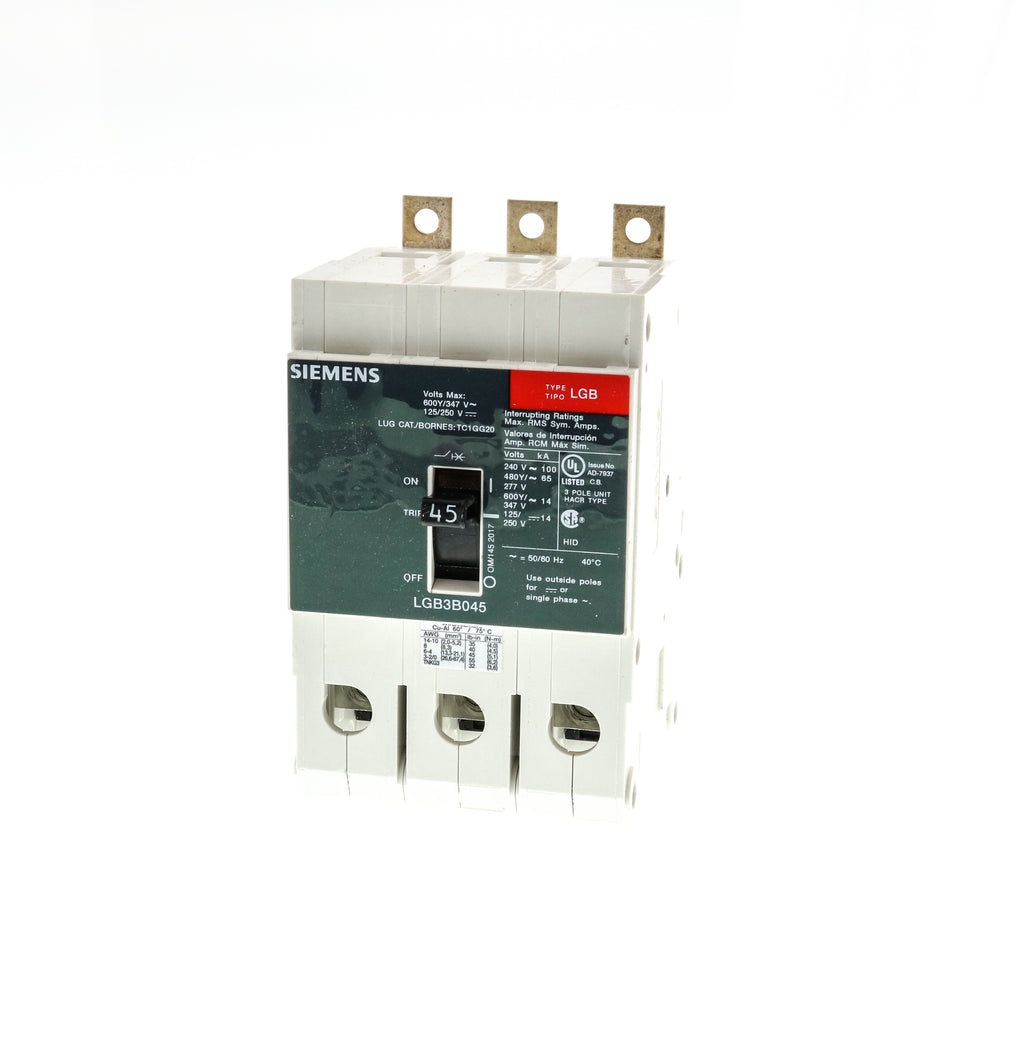

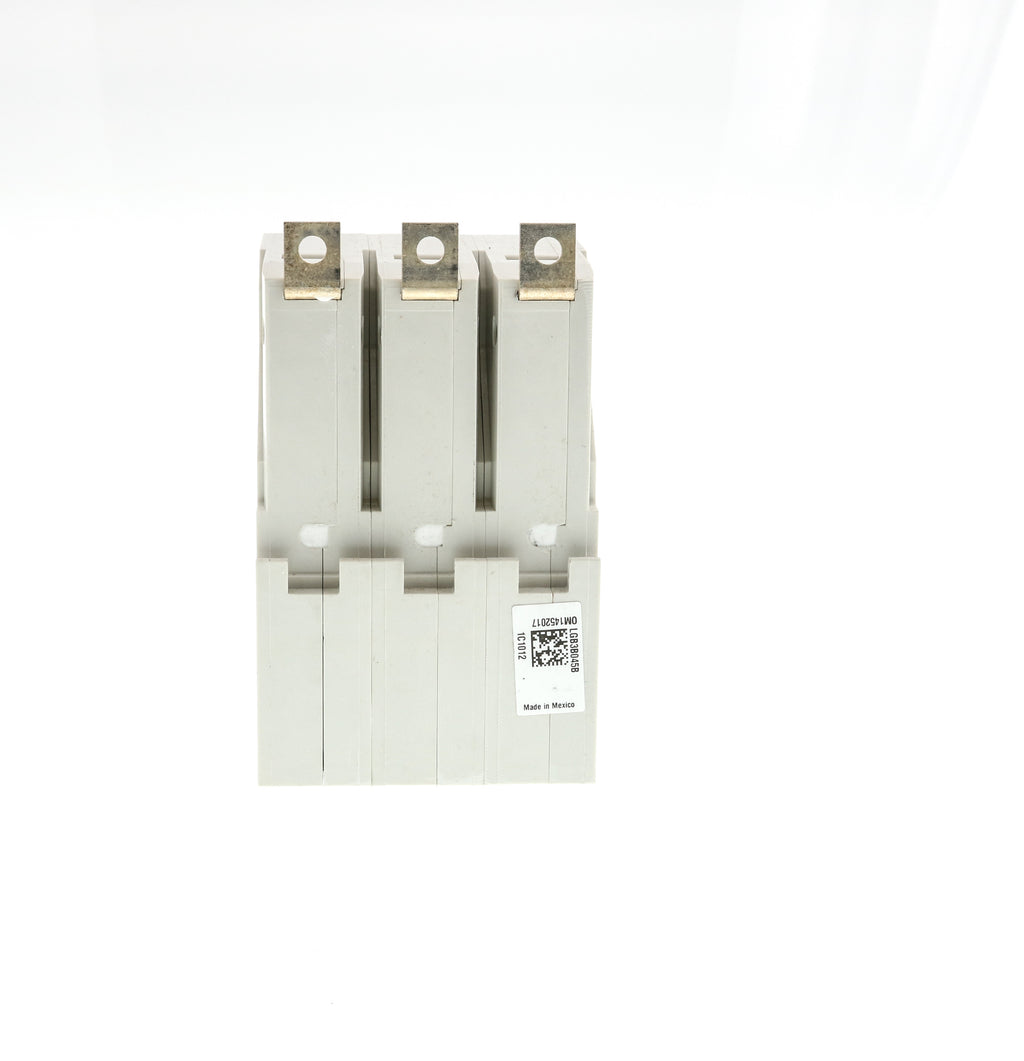

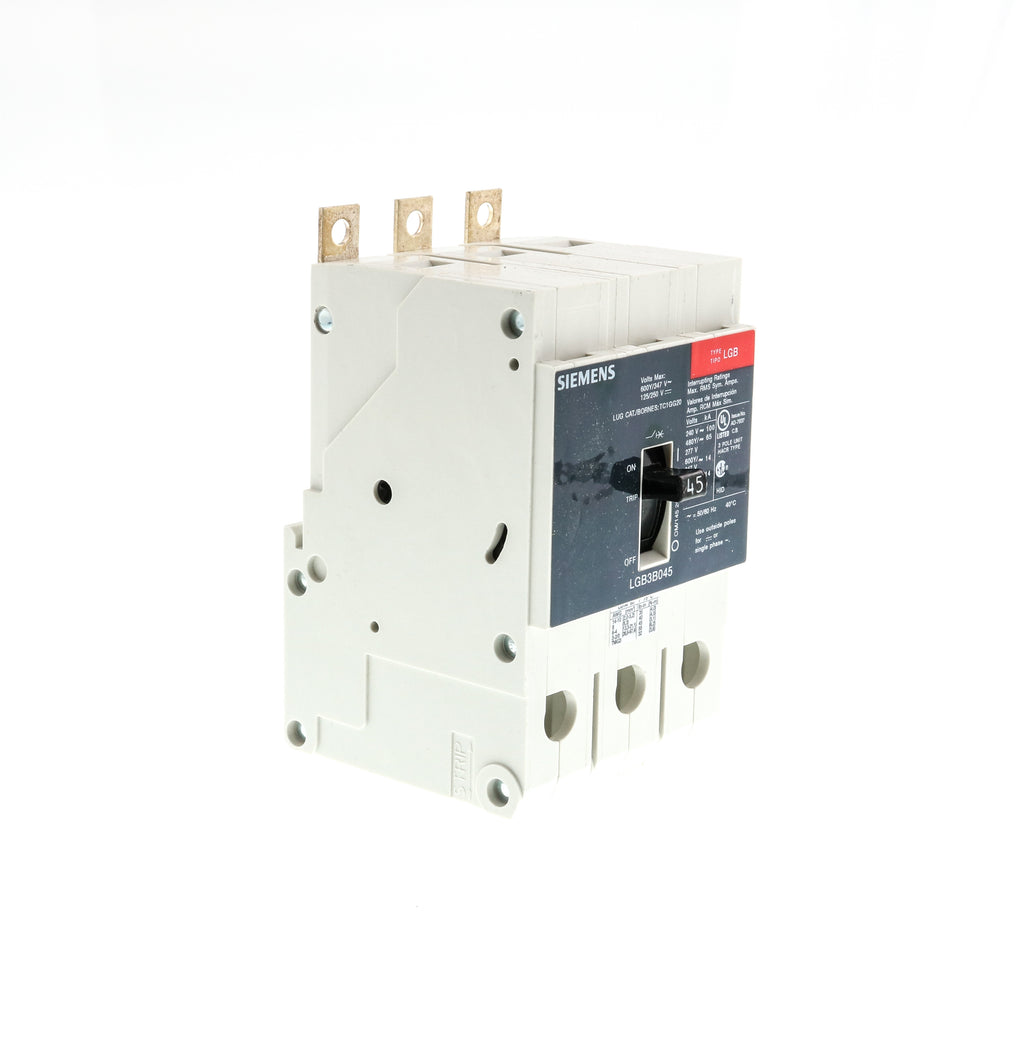

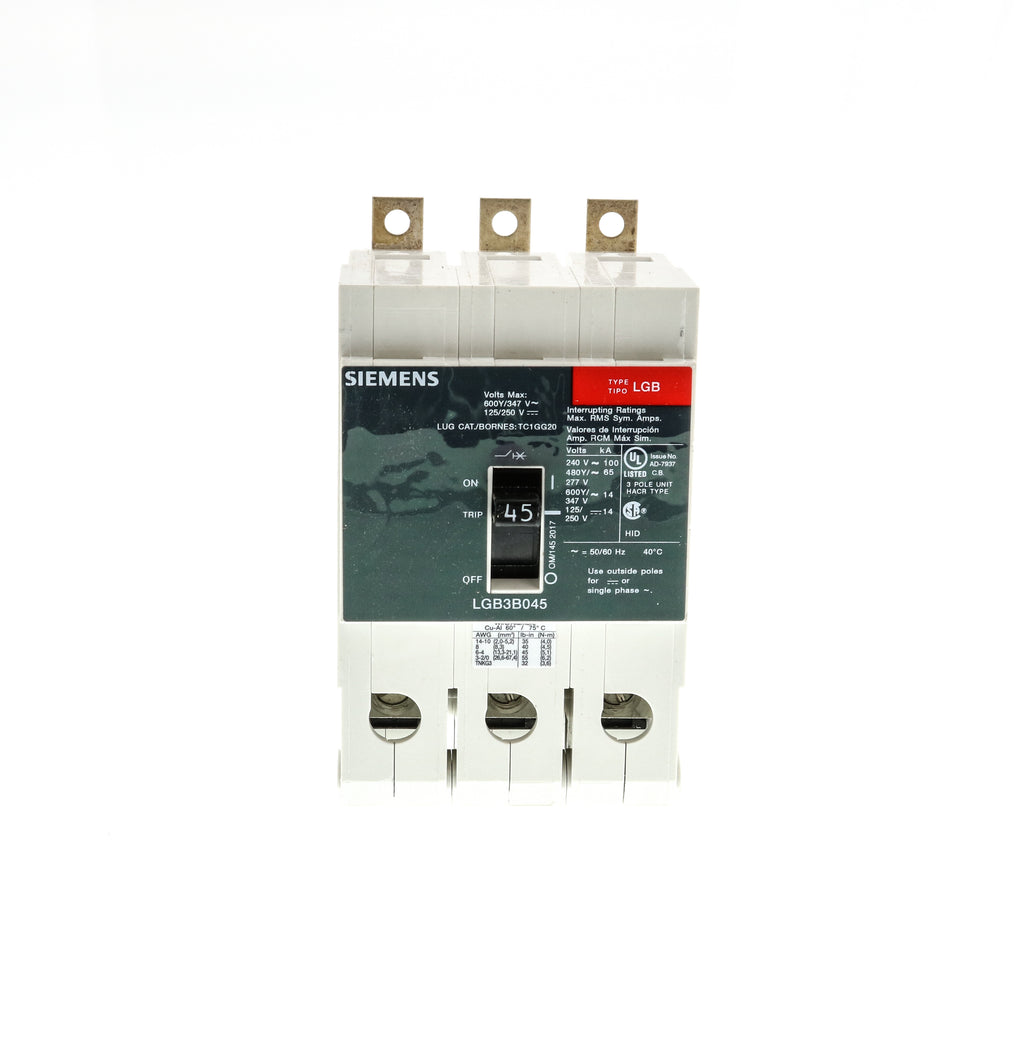

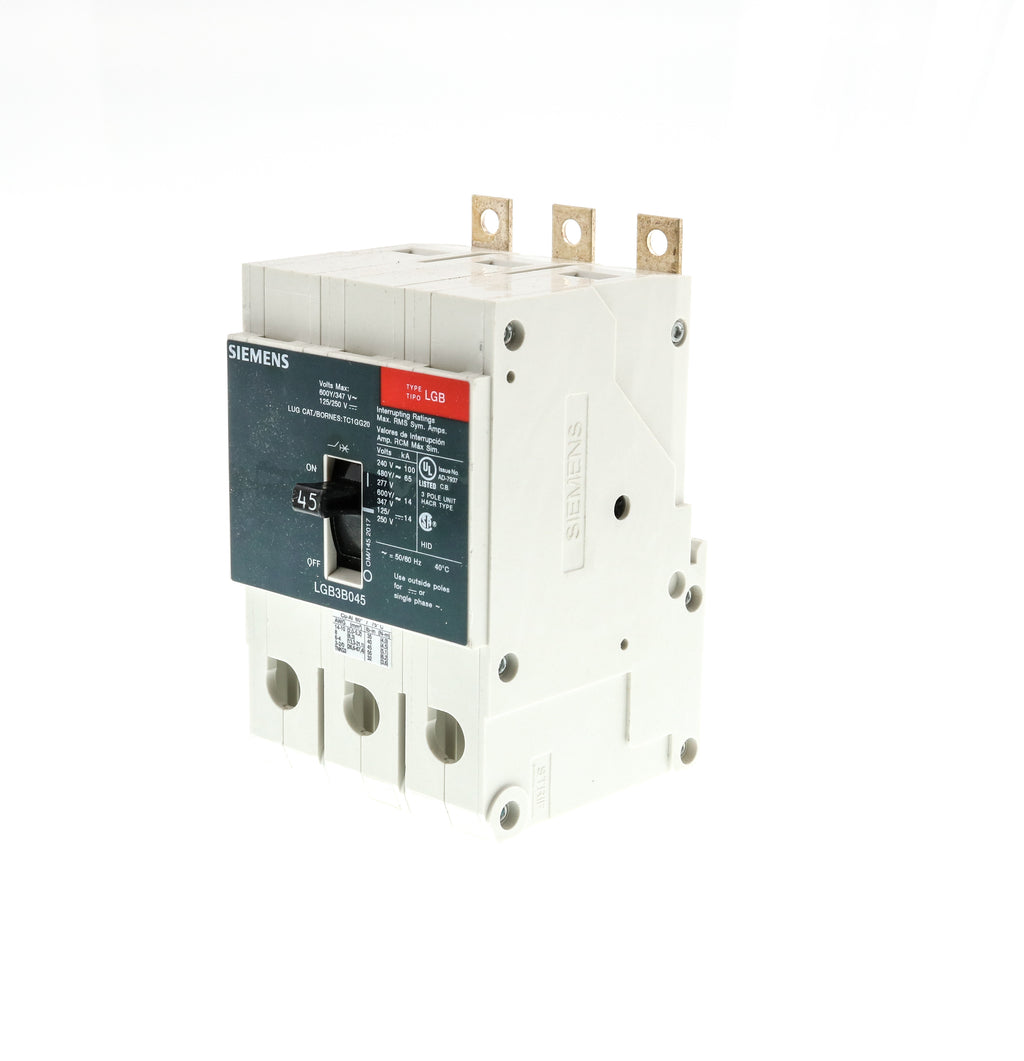

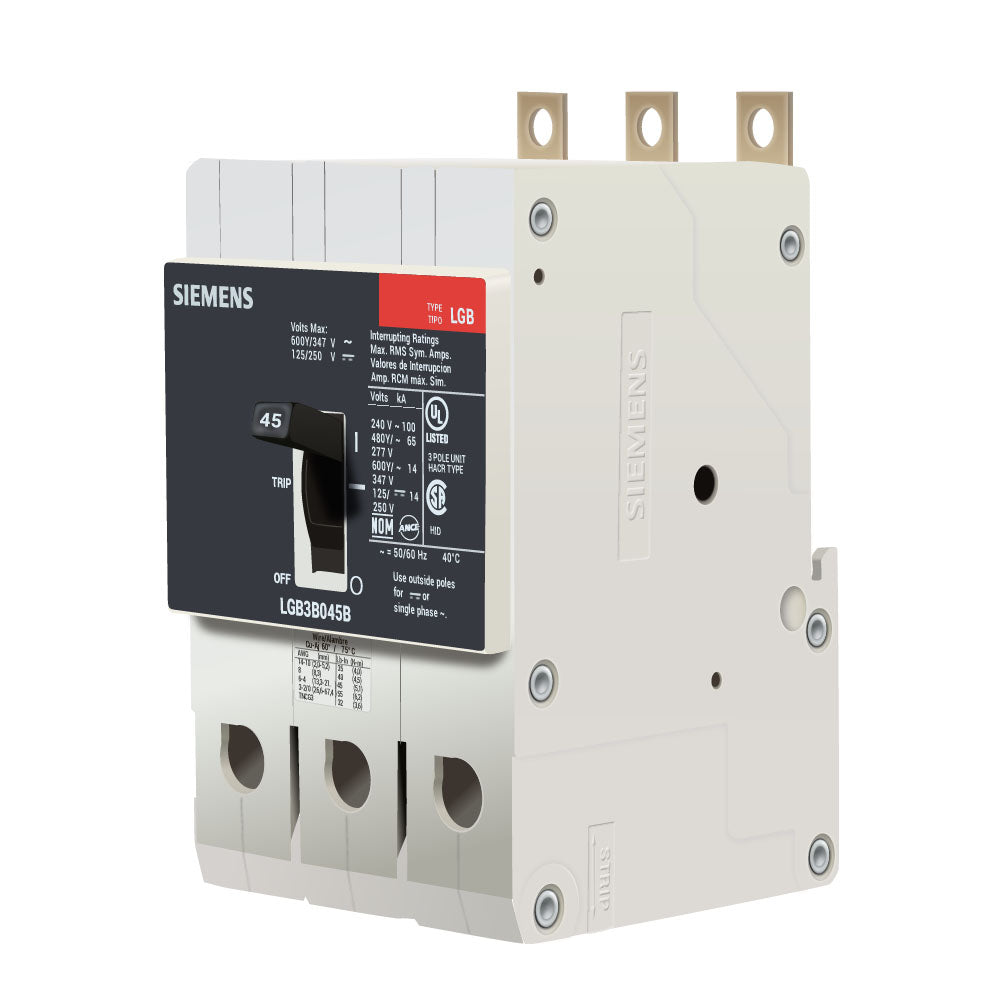

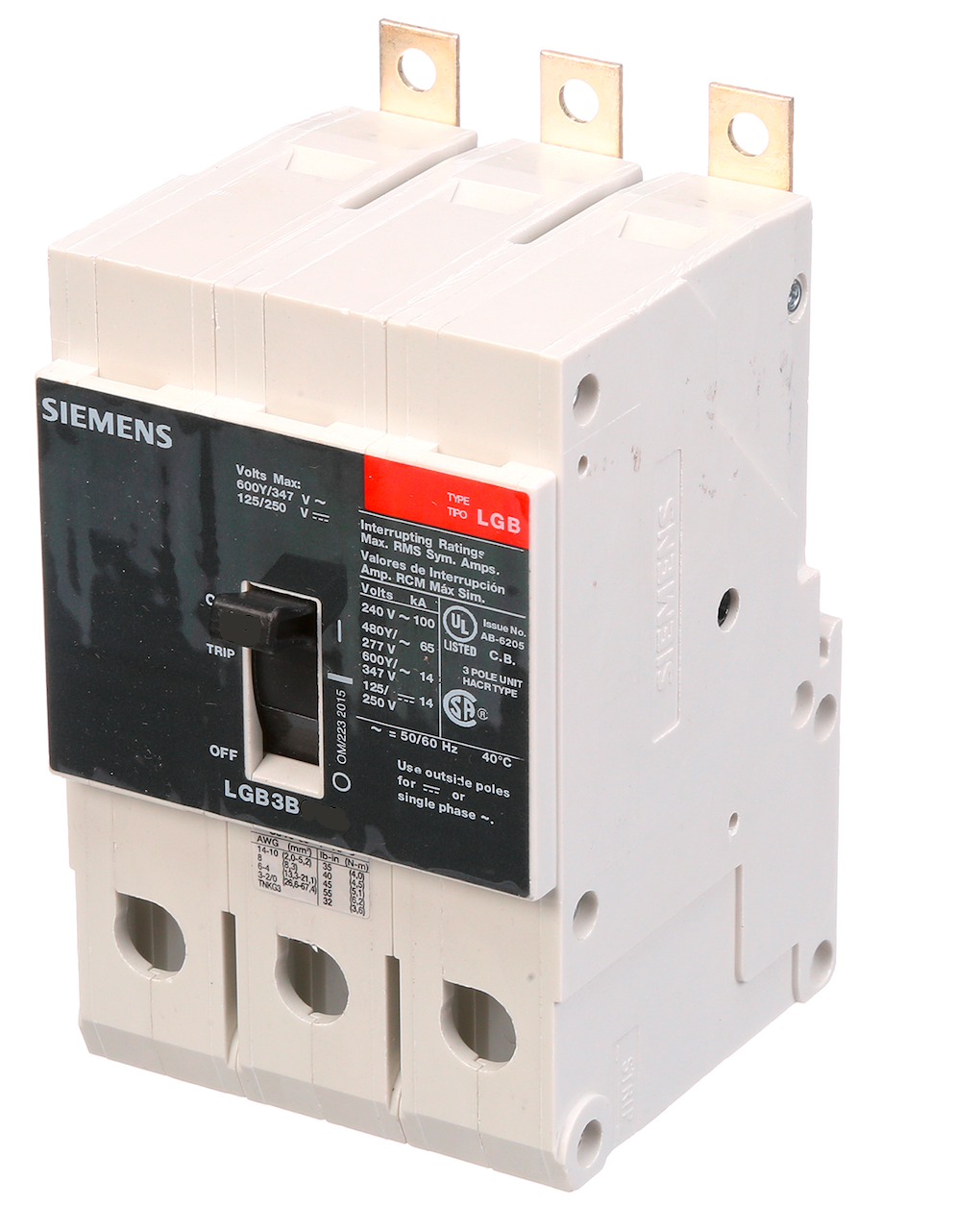

LGB3B045B is a Siemens 3-pole molded case circuit breaker rated for 45 amps and 480/600 volts AC.This thermal magnetic circuit breaker features a 65kA interrupt rating at 480Y/277V and is designed for panelboard mounting. It belongs to the Siemens LGB frame series and is UL listed under UL489 standards. The breaker supports bolt-on connection and is suitable for low voltage applications with a trip unit providing reliable protection.
- Key Specifications
- Amperage: 45 Amps
- Voltage Rating: 480/600 VAC
- Number of Poles: 3
- Interrupt Rating: 65 kAIC at 480Y/277V
- Frame/Series: LGB
- Trip Unit: Thermal Magnetic
- Mounting Type: Panelboard, Bolt-On
- Certifications: UL Listed (UL489)
- Frequency: 50/60 Hz
- Connection Type: Bolt-On
- Part Number: LGB3B045B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : LGB
- Voltage : 600
- Amperage : 45
- Phase : 3
- Poles : 3
- AIC rating : 100kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
- UPC : 887621220273
- GTIN : 00887621220273
- Country of Origin : Mexico
- Dimensions : 2.961 x 2.87 x 4.998
- Weight : 2.756
- Certification : UL, CSA, IEC, NOM
- Wire Size : AWS 8 to AWS 1/0, Cu/Al
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
