Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
LGB3B050B

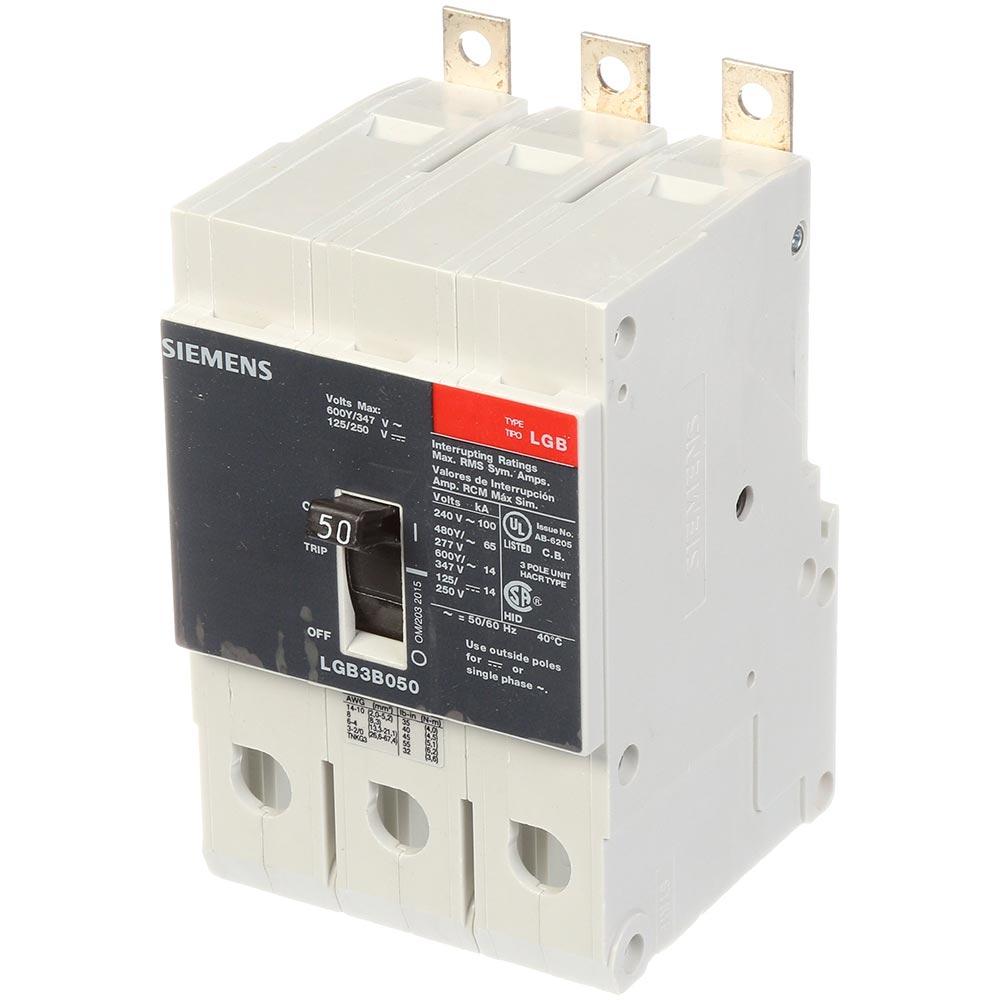

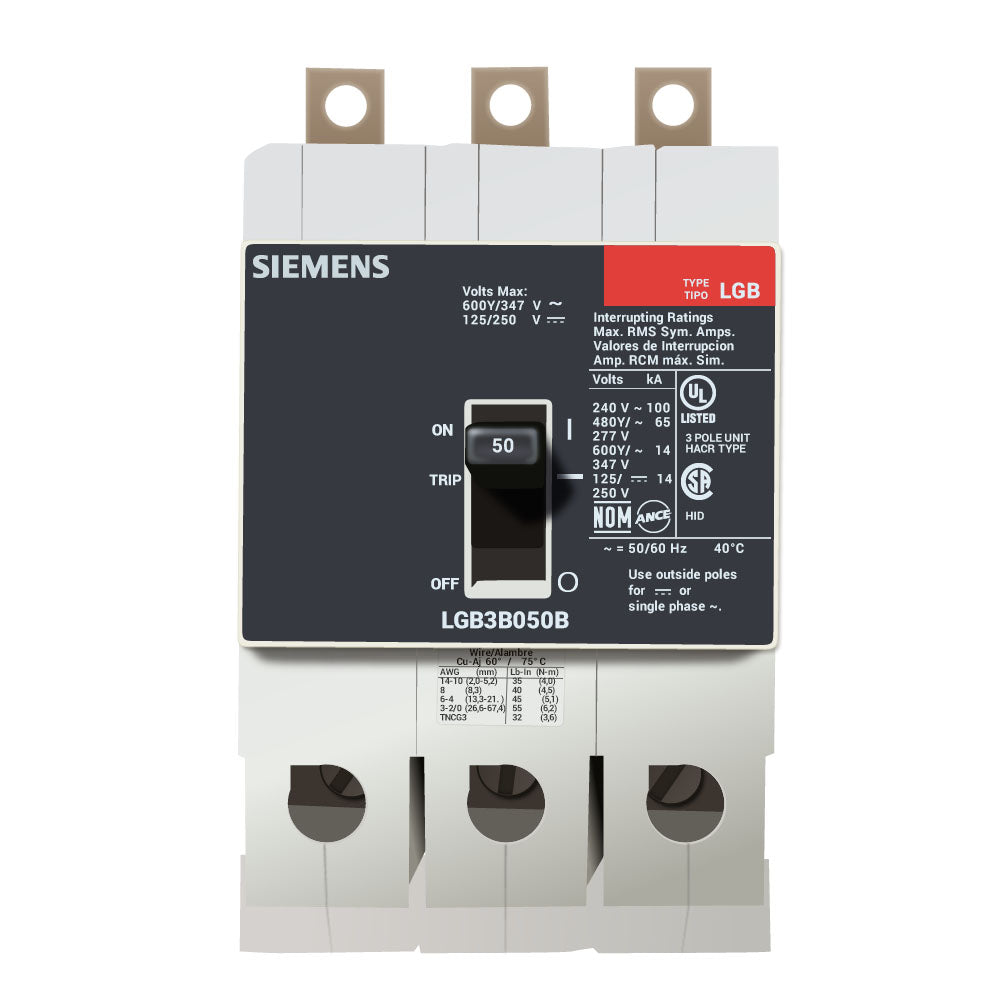

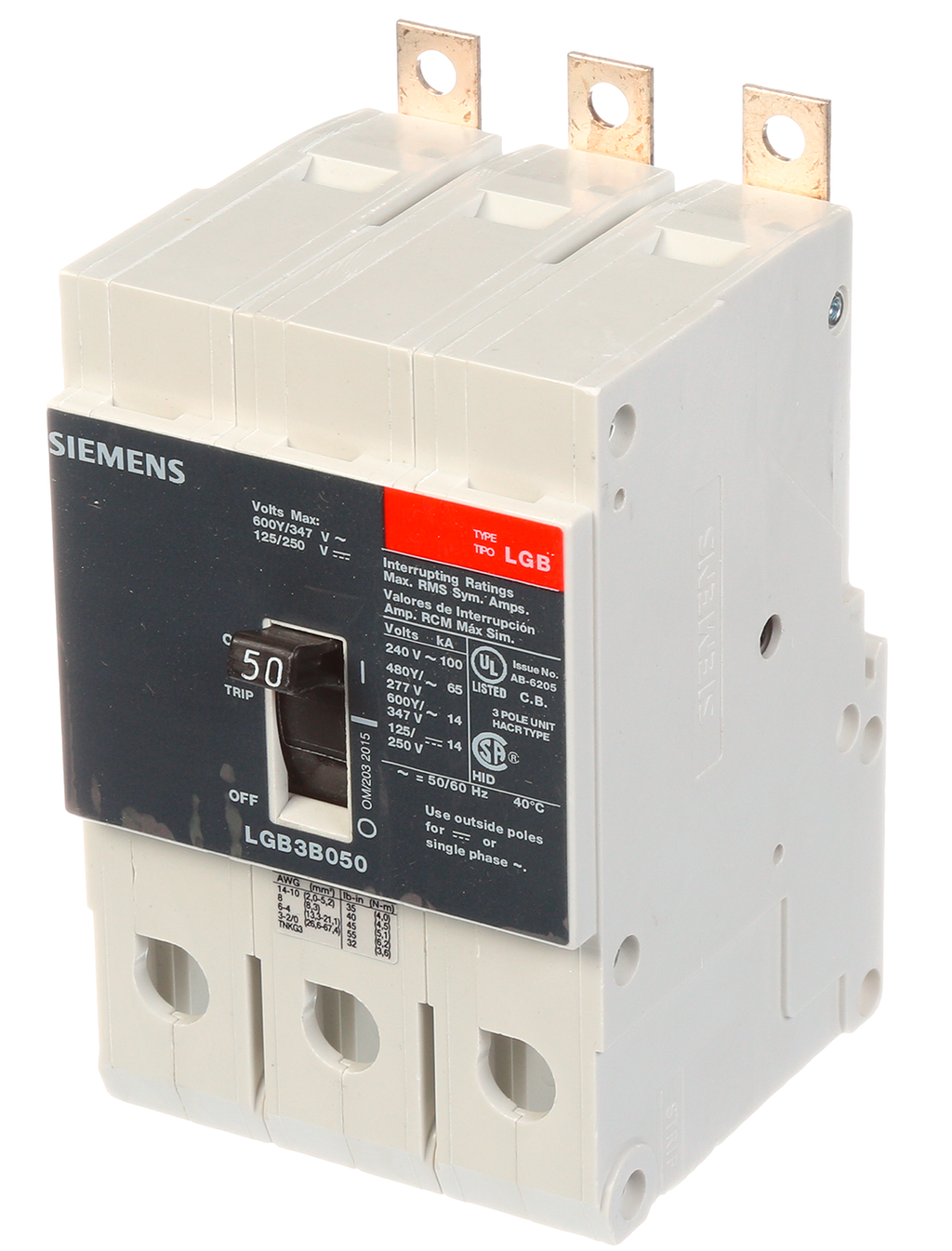

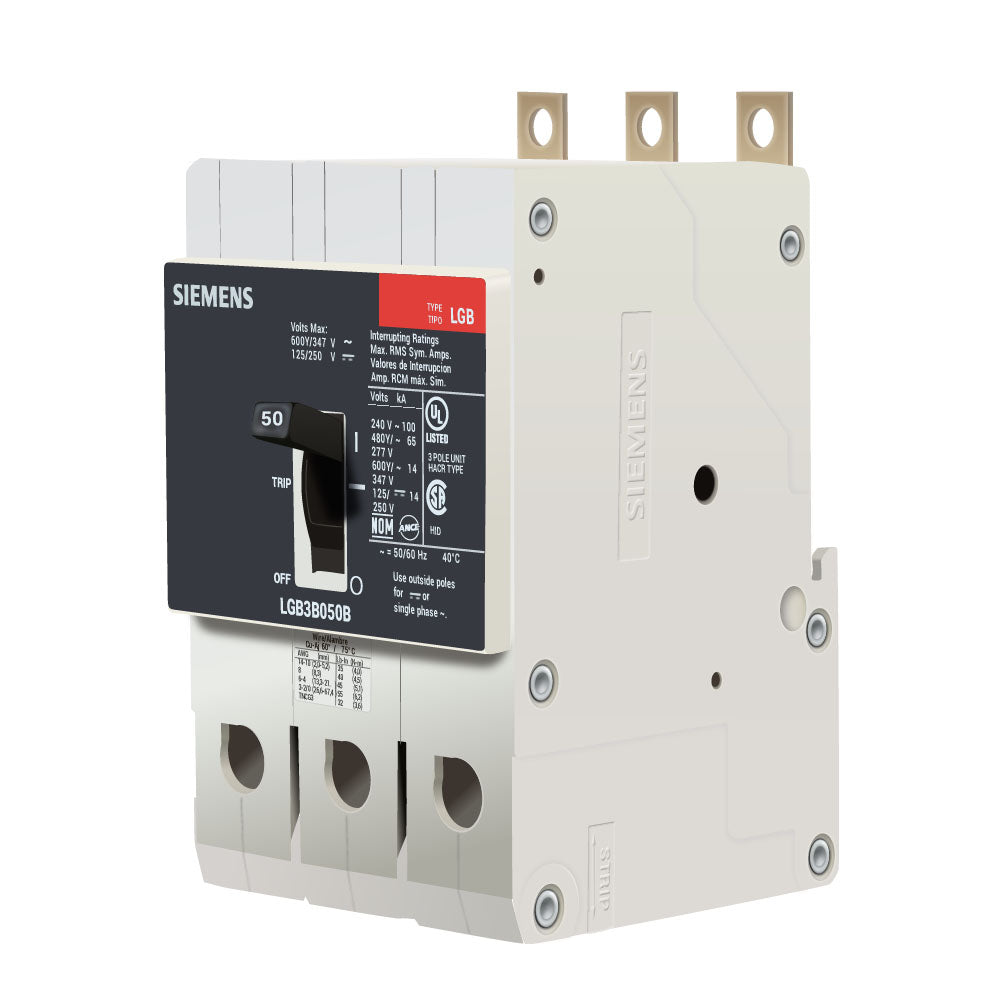

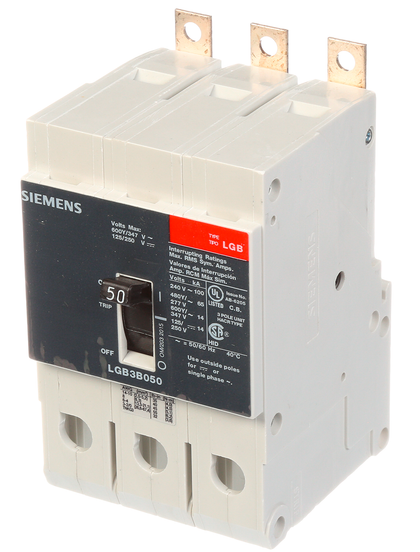

LGB3B050B - Siemens molded case circuit breaker, 3-pole, 50A, thermal magnetic trip, bolt-on panel mount.
This Siemens LGB3B050B is a Type LGB low voltage molded case circuit breaker rated at 50A with 125A frame, 480VAC, 65kA AC interrupt rating, and thermal magnetic trip unit. It features panelboard mounting with load side lugs, supports 8 to 1/0 AWG copper or 8 to 2/0 AWG aluminum wire, and operates at 50/60Hz frequency.
Key Specifications
- Amperage: 50A
- Voltage: 480VAC
- Poles: 3
- Mounting Type: Bolt-On Panel
- Interrupt Rating: 65kA @ 480VAC
- Series/Frame: LGB, 125A
- Trip Unit: Thermal Magnetic
- Frequency: 50/60Hz
- Wire Size: 8-1/0 AWG CU, 8-2/0 AWG AL
- Connection: Load Lug
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: LGB3B050B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : LGB
- Voltage : 600
- Amperage : 50
- Phase : 3
- Poles : 3
- AIC rating : 100kA@240V
- Connection : Bolt-On
- Functions : LI - Long Time and Instantaneous
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 887621220280
- GTIN : 00887621220280
- Country of Origin : Mexico
- Dimensions : 2.961 x 2.87 x 4.999
- Weight : 2.756 lb
- Certification : UL, CSA, IEC, NOM
- Wire Size : 8 to 1/0 AWS CU/AL
