Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
LGB3B100

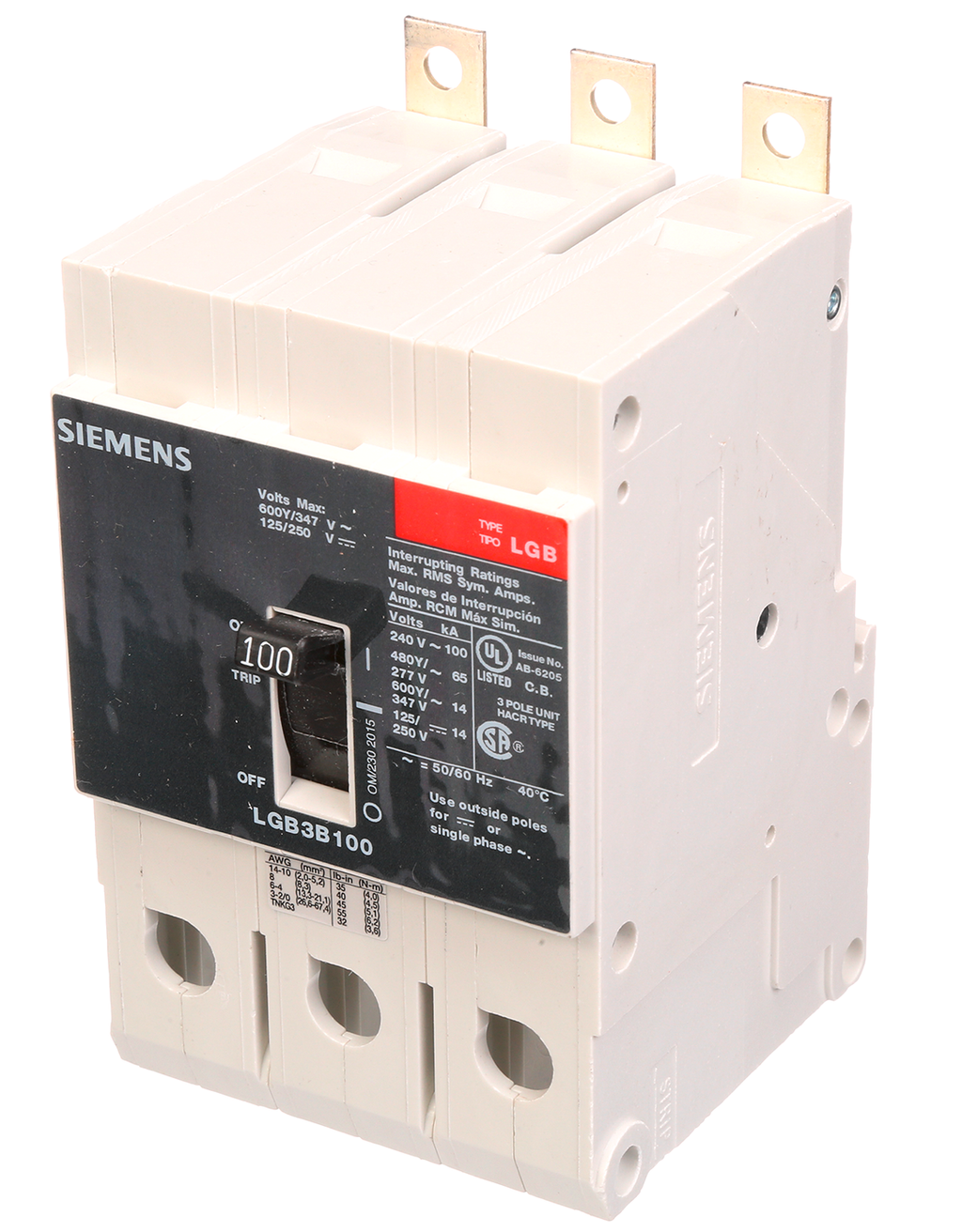

LGB3B100 - Siemens Type LGB low voltage molded case circuit breaker with thermal-magnetic trip.This 3-pole circuit breaker features a 100A rating, 125A frame, and 65kA interrupt rating at 480VAC. It is designed for panelboard mounting with load side lugs only, supporting 8 to 1/0 AWG copper or 8 to 2/0 AWG aluminum wire, and operates at 50/60 Hz.
- Part Number: LGB3B100
- Manufacturer: Siemens
- Type: LGB Low Voltage
- Amperage Rating: 100A
- Frame Size: 125A
- Voltage Rating: 480VAC
- Poles: 3
- Interrupt Rating: 65kA @ 480VAC
- Trip Type: Thermal-Magnetic
- Mounting: Panelboard
- Frequency: 50/60 Hz
- Wire Range: 8-1/0 AWG Cu, 8-2/0 AWG Al
Specifications
- Part Number: LGB3B100
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 100kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 887621220334
- Country of Origin : Mexico
- Dimensions : 2.961 x 2.87 x 4.1005
- Weight : 3
- Certification : UL, CSA, IEC, NOM
