LGB3B090B - Siemens 90A 600VAC 3 Pole Bolt-On LGB Frame Circuit Breaker

LGB3B090B

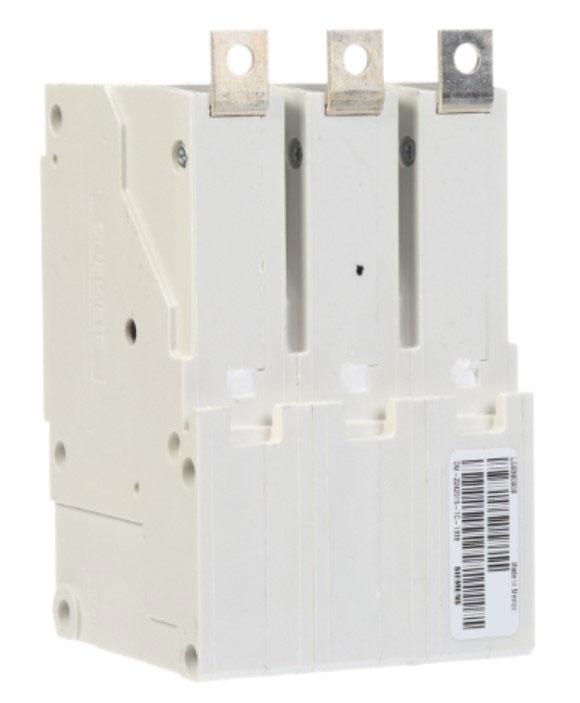

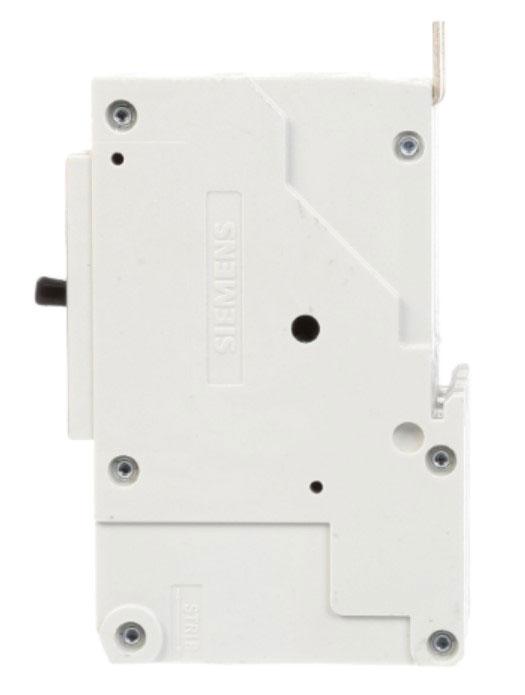

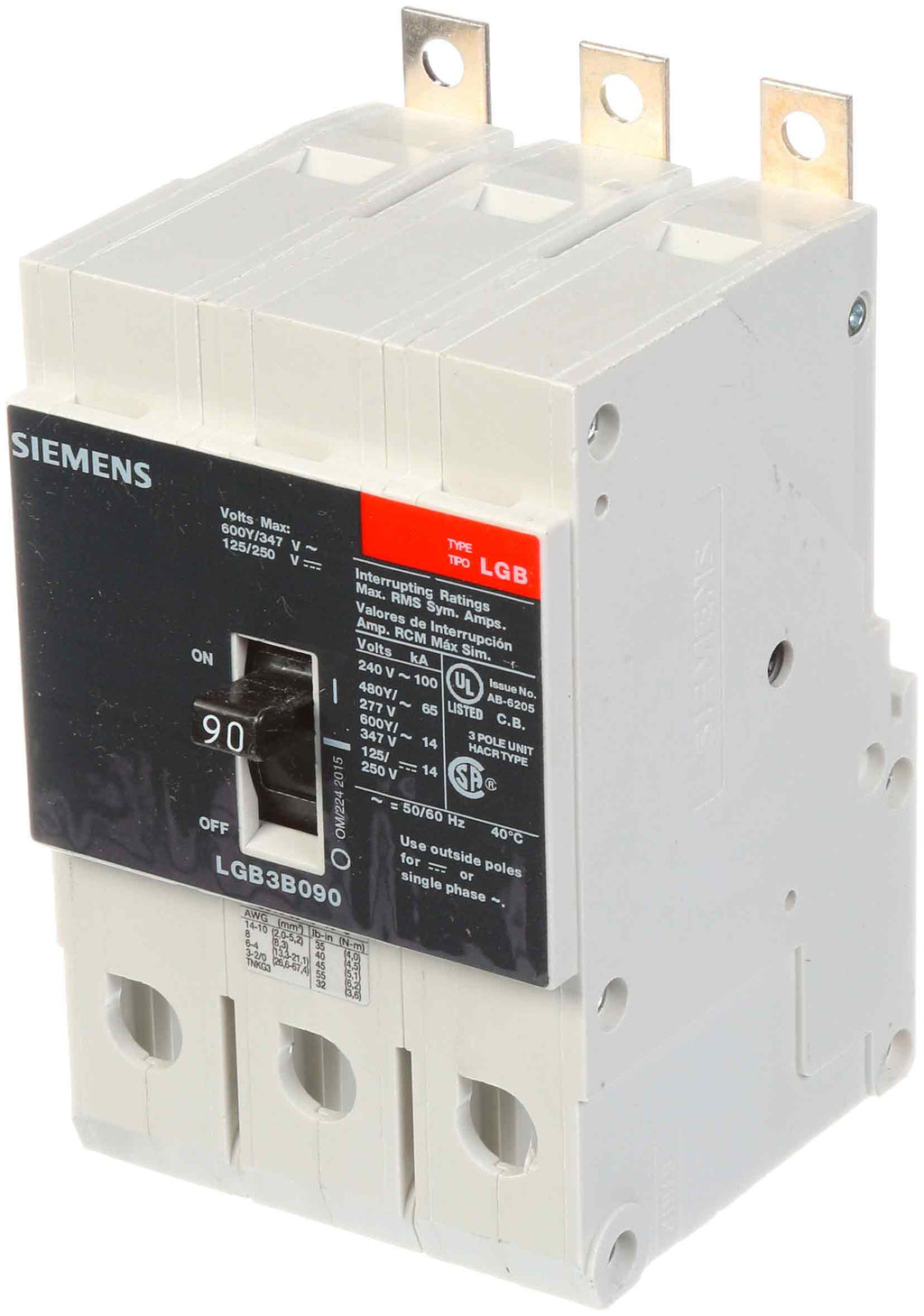

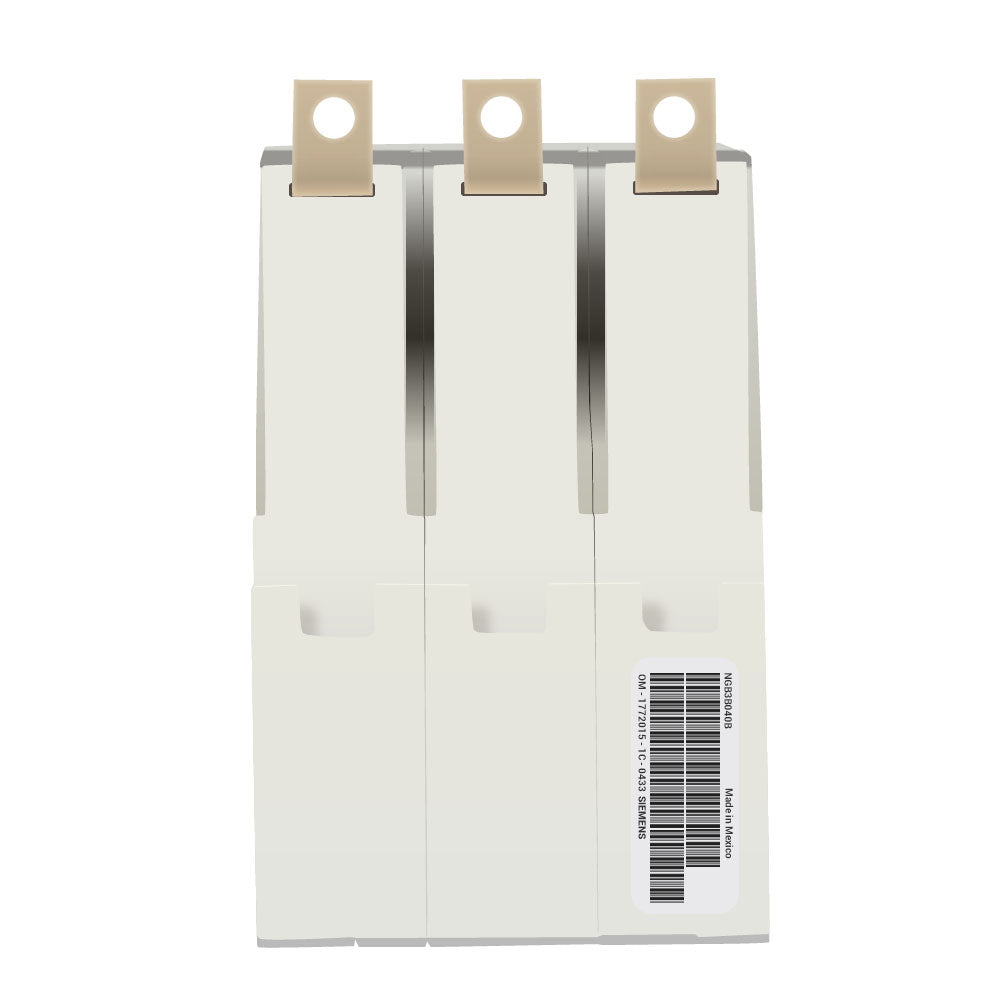

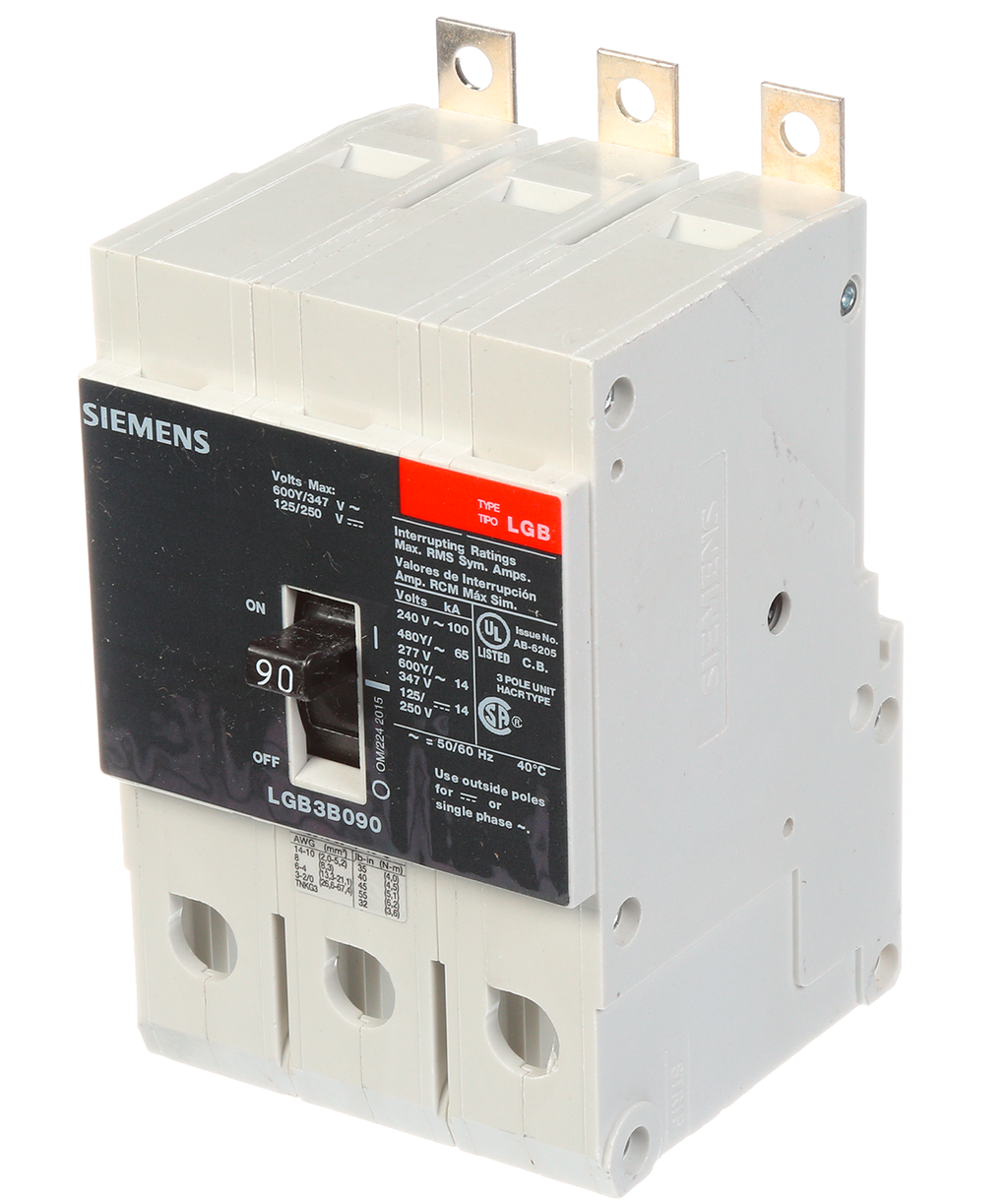

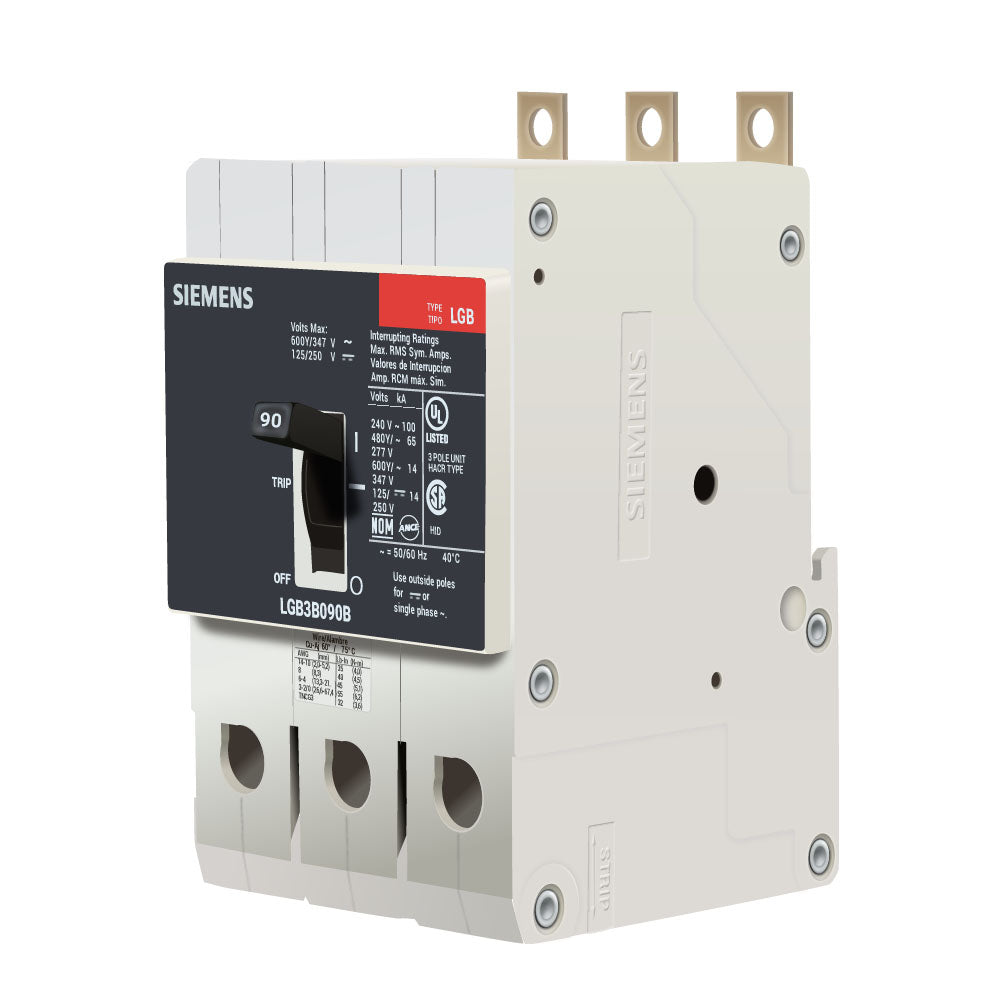

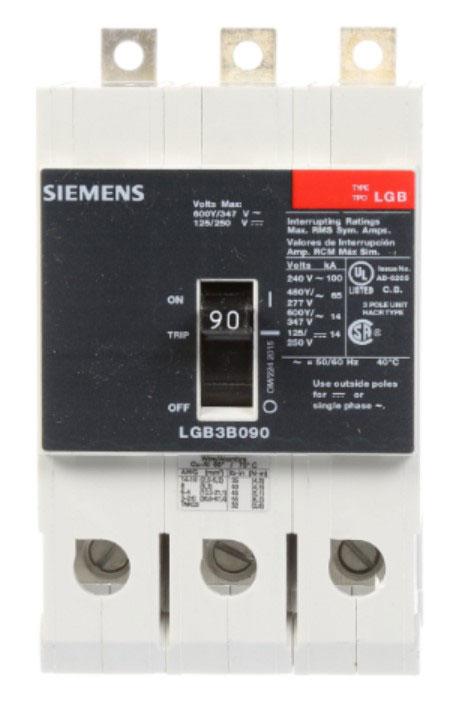

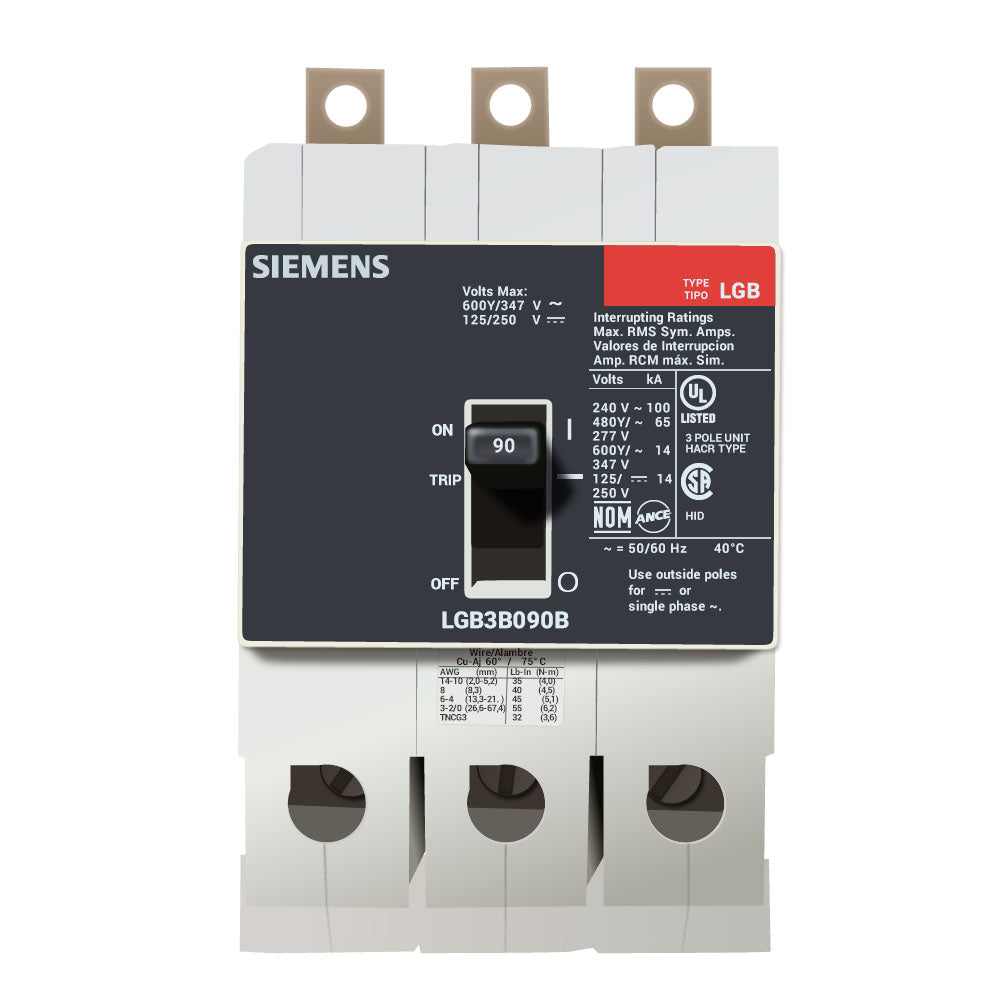

LGB3B090B is a Siemens 3 pole, 90 amp, 600VAC bolt-on molded case circuit breaker from the LGB frame series.This thermal magnetic circuit breaker features a 65kA interrupt rating at 480VAC and 100kA at 240VAC, designed for panel board mounting with bolt-on connections. It supports wire sizes from #14 AWG to 1/0 AWG copper or aluminum using the lug kit 3TA1EG10. The breaker measures 3 inches wide by 4.5 inches high and 3.3 inches deep, weighing approximately 2.6 lbs.

Key Specifications
• Amperage: 90A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA at 480VAC, 100kA at 240VAC
• Frame Type: LGB (G-Frame)
• Trip Unit: Thermal Magnetic
• Wire Size Compatibility: #14 AWG to 1/0 AWG Copper/Aluminum
• Dimensions: 3" W x 4.5" H x 3.3" D
• Weight: 2.6 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LGB3B090B
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : VL Series
• Type : LGB
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 887621220327
• GTIN : 00887621220327
• Country of Origin : Mexico
• Dimensions : 2.961 x 2.87 x 4.1004
• Weight : 2.756
• Certification : UL, CSA, IEC, NOM
• Wire Size : 8 - 1/0 AWS (CU/AL)
