Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
LGB3B070B

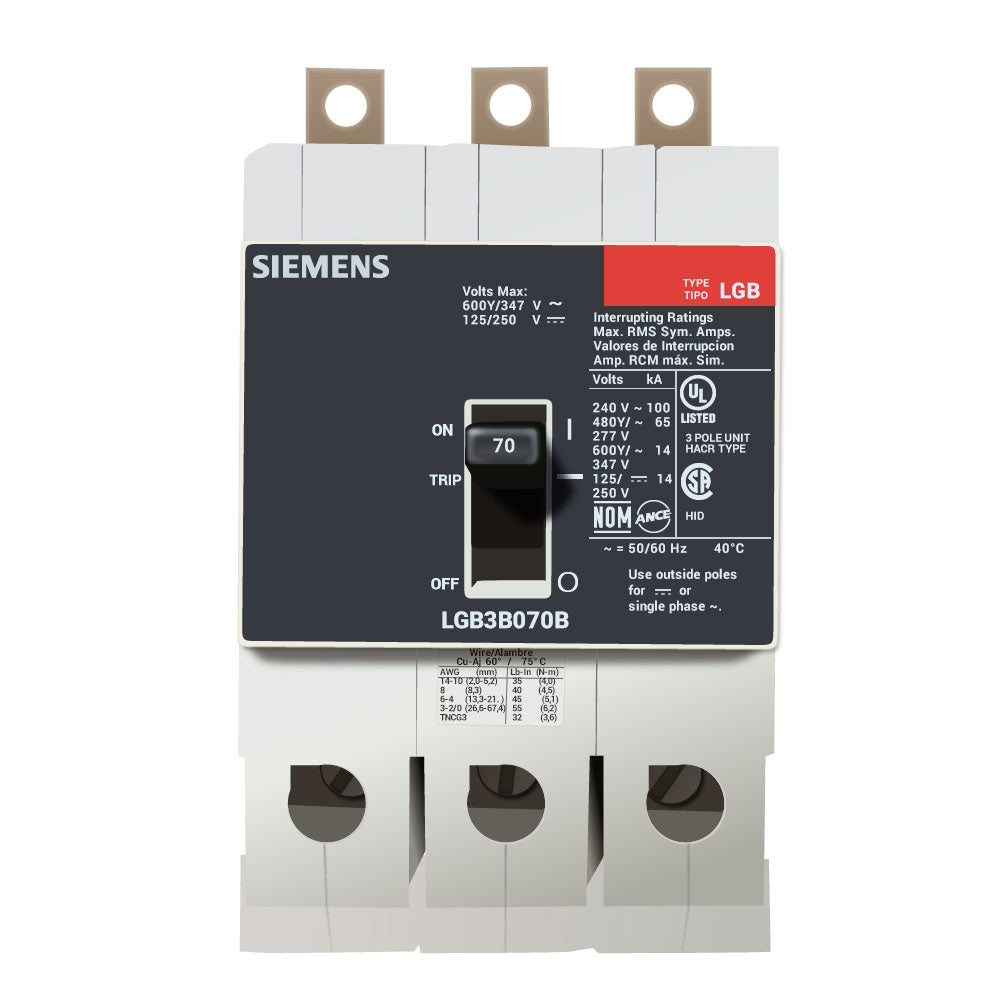

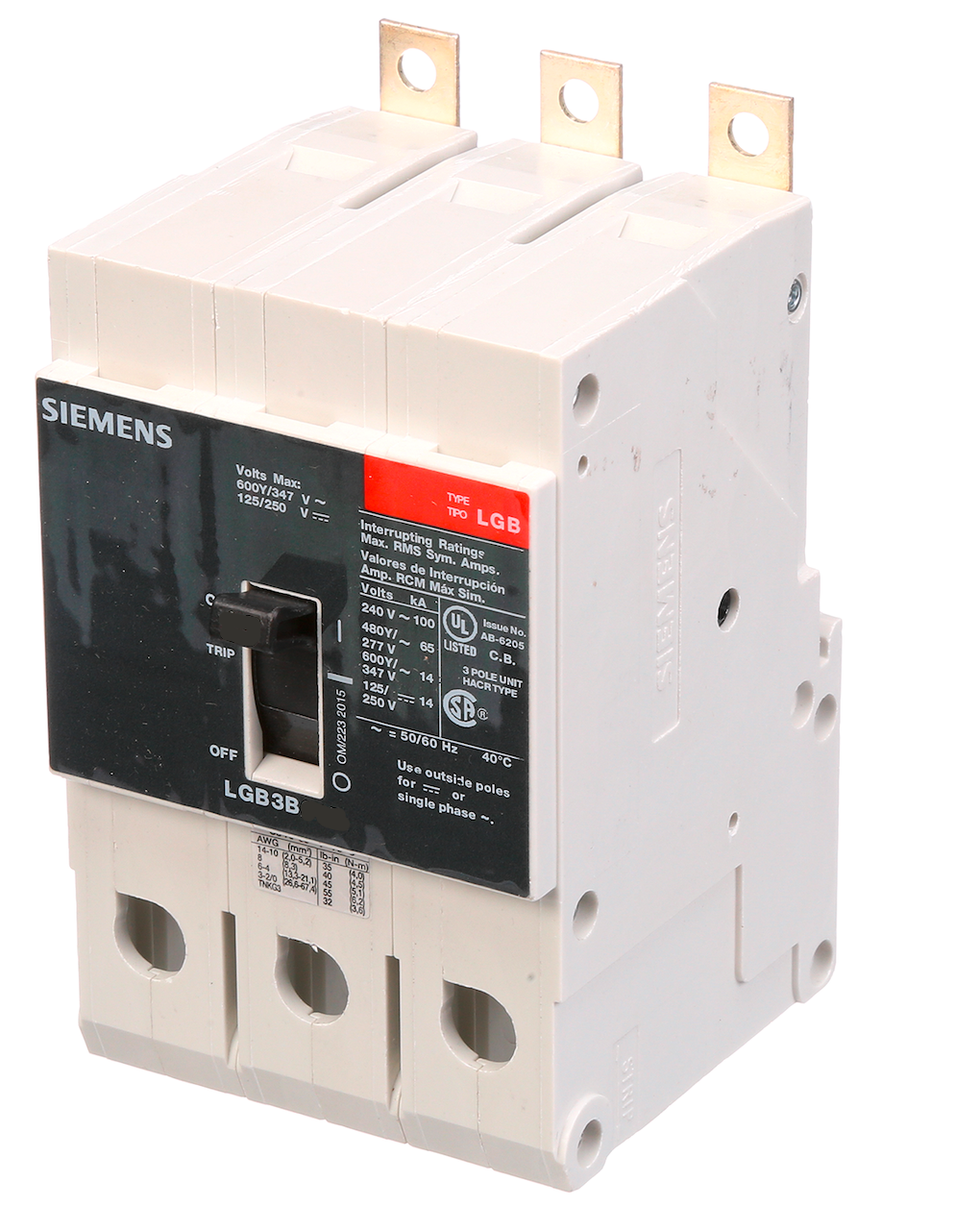

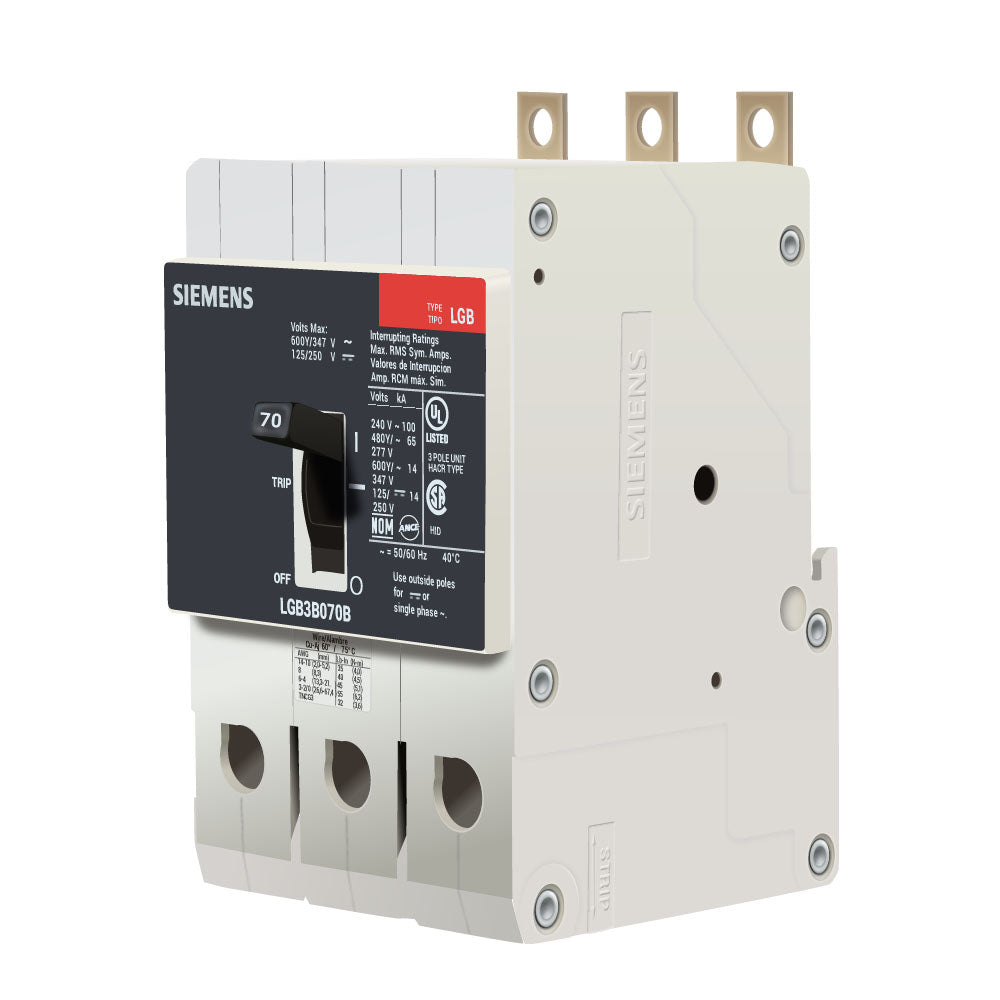

LGB3B070B - Siemens 3-pole molded case circuit breaker rated at 70A and 600V with bolt-on mounting and thermal-magnetic trip.The Siemens LGB3B070B features LGB frame construction with very high breaking capacity, including 14kAIC at 600Y/347V and 65kAIC at 480Y/277V. It provides load side lugs only (TC1GG20) and supports wire ranges of 8 to 1/0 AWG copper or 8 to 2/0 AWG aluminum.
- Part Number: LGB3B070B
- Manufacturer: Siemens
- Frame Type: LGB
- Amperage: 70A
- Voltage: 600V
- Poles: 3
- Mounting Type: Bolt-On
- Trip Type: Thermal-Magnetic
- Interrupt Rating: 65kAIC @ 480Y/277V, 14kAIC @ 600Y/347V
- Connection: Load side lugs
Specifications
- Part Number: LGB3B070B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : LGB
- Voltage : 600
- Amperage : 70
- Phase : 3
- Poles : 3
- AIC rating : 100kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous trip
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 887621220303
- GTIN : 00887621220303
- Country of Origin : Mexico
- Dimensions : 2.961 x 2.87 x 4.1002
- Weight : 2.756
- Certification : UL, CSA, IEC, NOM
- Wire Size : 8 to 1/0 AWG (Copper) and 8 to 2/0 AWG (Aluminum)
