Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

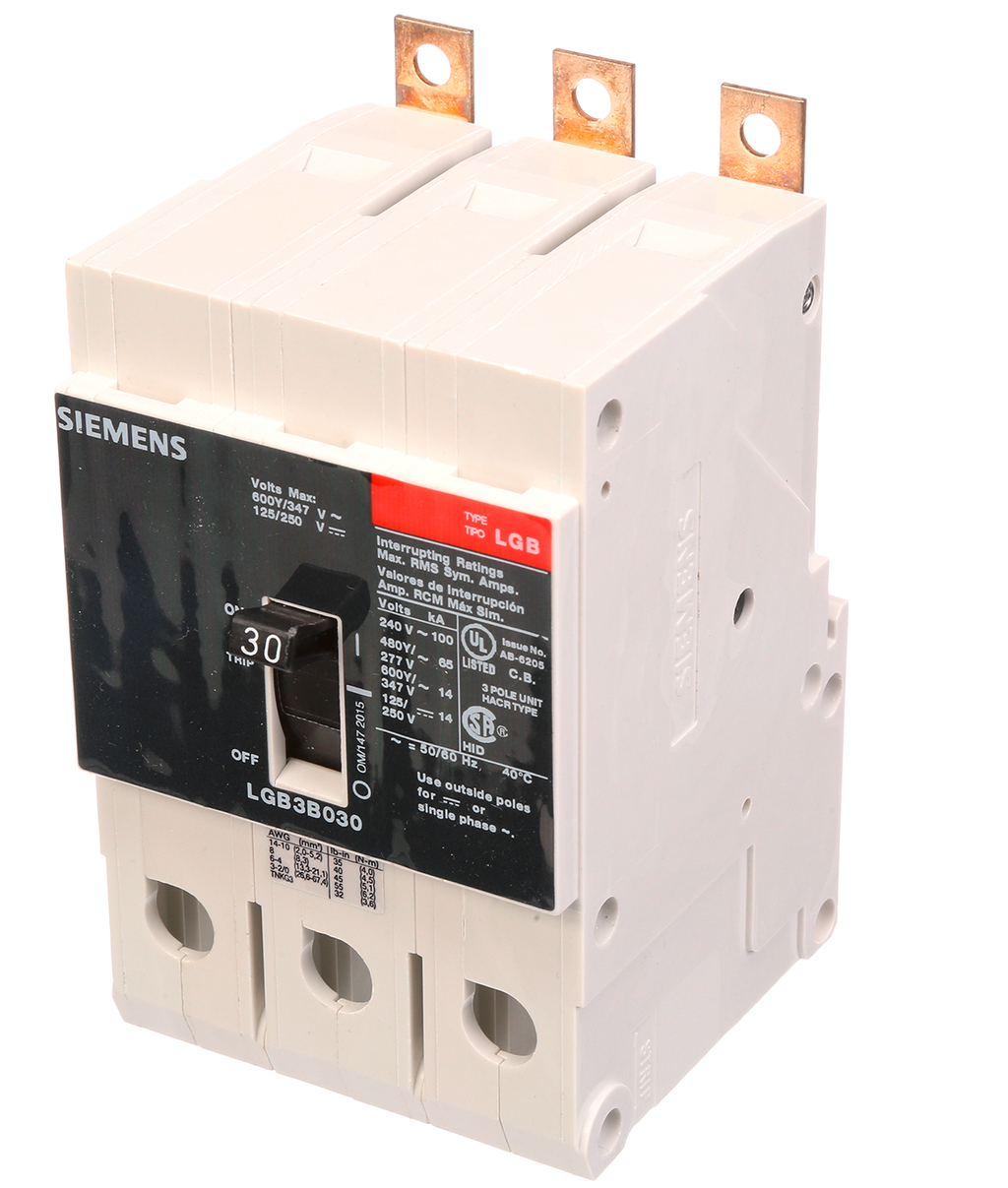

LGB3B030
LGB3B030 is a Siemens 3-pole molded case circuit breaker rated for 30 amps and 600 volts with a thermal magnetic trip unit.This LGB frame breaker features a bolt-on panelboard mount design, a high interrupt rating of 100kA at 240V, and is UL listed. It provides reliable protection with thermal magnetic trip functionality and is suitable for industrial applications. The breaker measures approximately 4.99" x 2.96" x 2.87" and weighs 2.75 lbs.
- Key Specifications
- Amperage: 30A
- Voltage: 600V
- Poles: 3
- Mounting Type: Bolt-On Panelboard Mount
- Interrupt Rating: 100kA @ 240V
- Frame: LGB
- Trip Unit: Thermal Magnetic
- UL Listed
- Dimensions: 4.99" H x 2.96" W x 2.87" D
- Weight: 2.75 lbs
- Frequency: 50/60 Hz
- Country of Origin: Mexico
Specifications
- Part Number: LGB3B030
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 100kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643212640
- Country of Origin : Mexico
- Dimensions : 2.961 x 2.87 x 4.993
- Weight : 3
- Certification : UL, CSA, IEC, NOM
