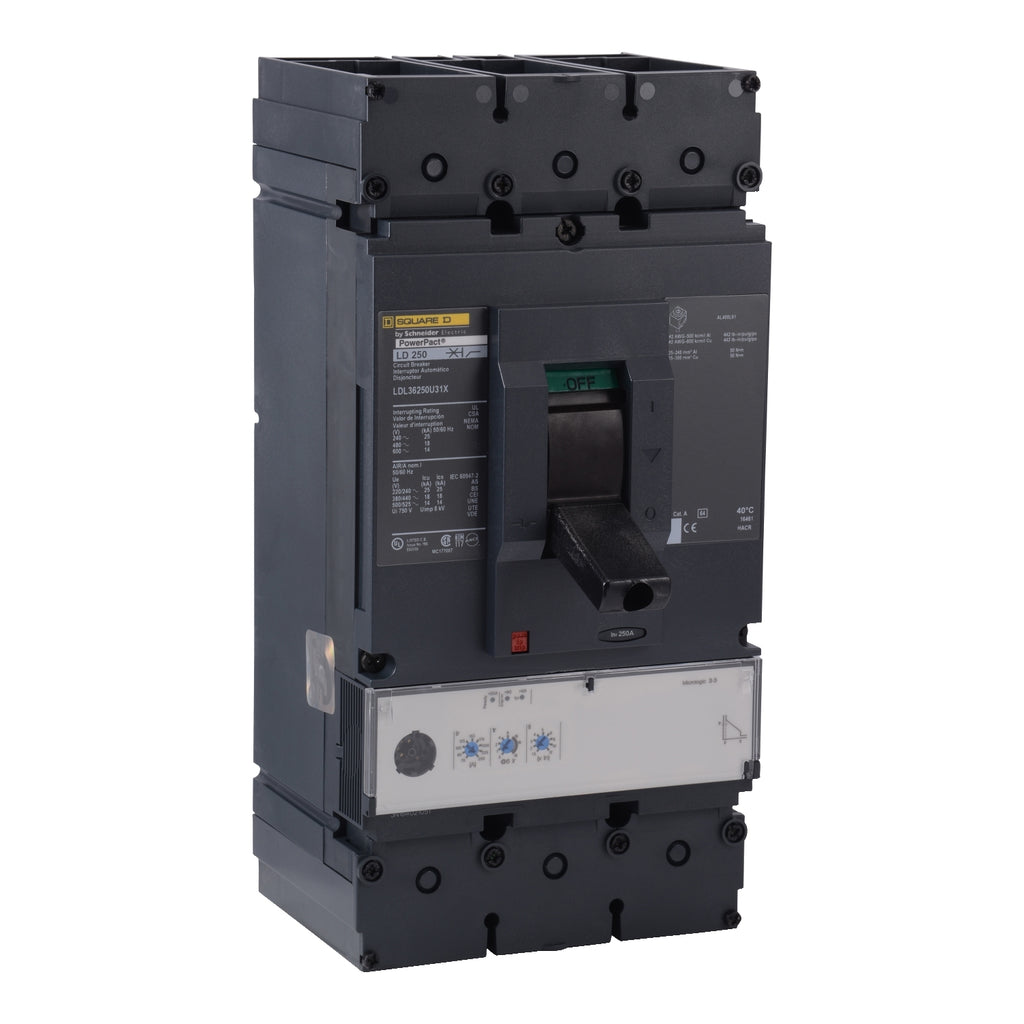

LDL36250CU31X - Square D 250A 3-Pole 600VAC Molded Case Circuit Breaker PowerPact L Frame

LDL36250CU31X

LDL36250CU31X is a 3-pole, 250 amp molded case circuit breaker from Square D designed for 600VAC applications. It features a PowerPact L frame with solid state trip technology.This circuit breaker offers a high interrupting capacity of 14kA at 600V and 18kA at 480V, with MicroLogic 3.3 trip unit providing long time and instantaneous trip functions. It is 100% rated and designed for unit mounting.

• Amperage: 250A
• Voltage Rating: 600VAC
• Poles: 3
• Interrupting Rating: 14kA @ 600V, 18kA @ 480V
• Frame/Series: PowerPact L
• Trip Unit: MicroLogic 3.3
• Mounting Type: Unit Mount
• Solid State Trip Technology
• 100% Rated
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LDL36250CU31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LDL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : L Frame
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Breaker Type : 100% rated
• Protection : Solid State

Product Data

• UPC : 785901980254
• GTIN : 00785901980254
• Country of Origin : United States
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 15
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 2...600 kcmil copper
  AWG 2...500 kcmil aluminium
