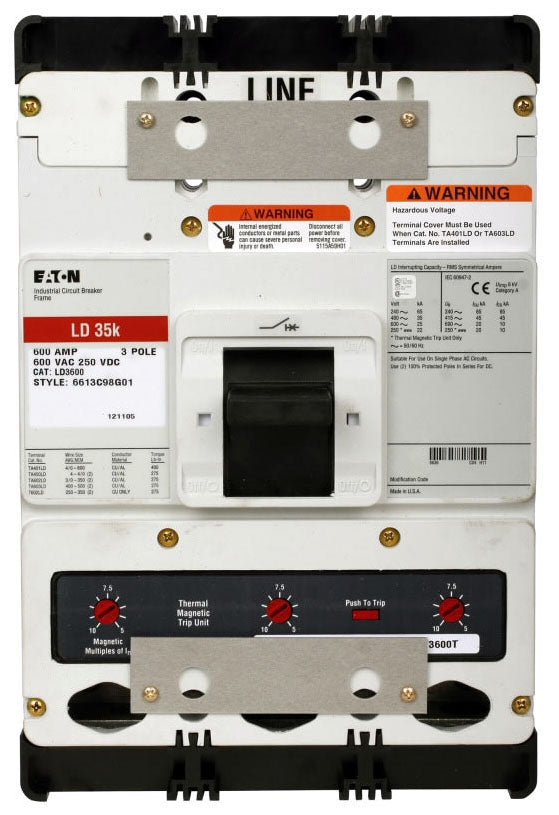

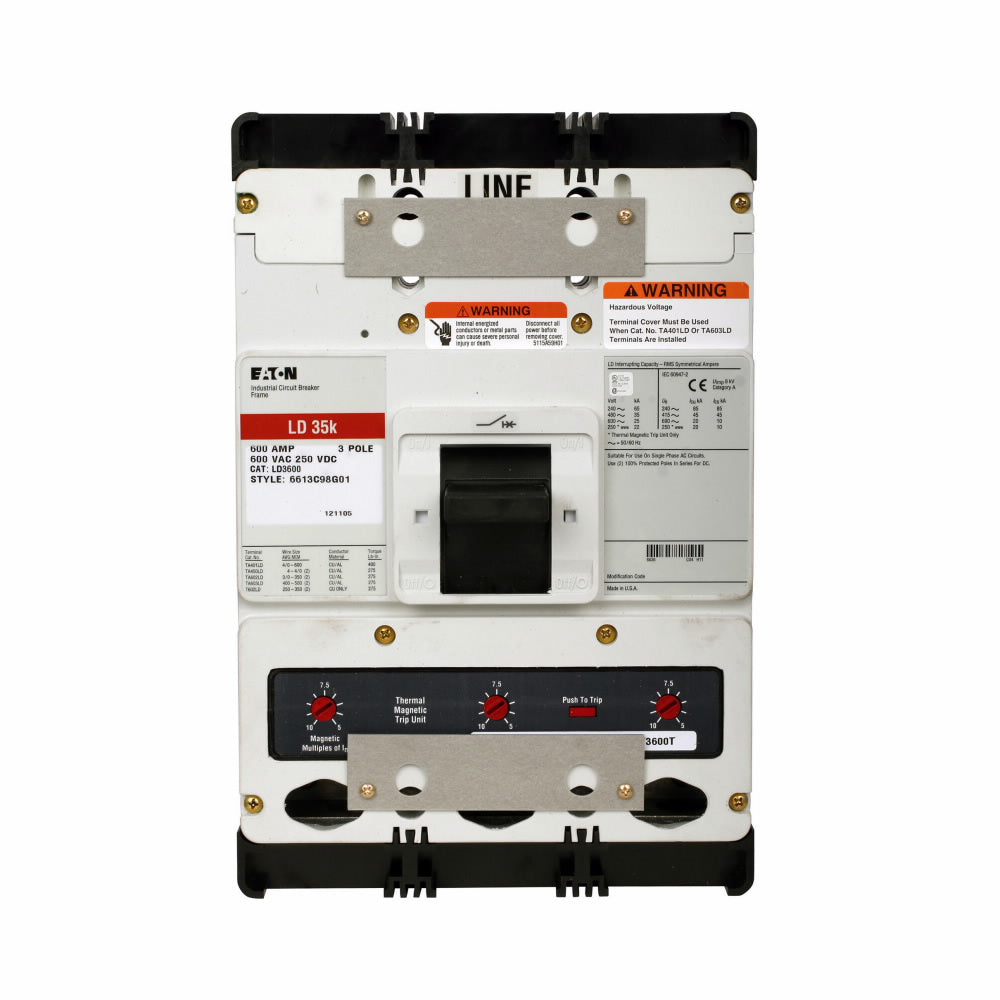

LDB3600WK - Eaton 600 Amp 600 VAC 3-Pole Series C Molded Case Circuit Breaker Switch L-Frame

LDB3600WK

LDB3600WK is a Series C molded case circuit breaker switch by Eaton designed for high magnetic protection in industrial applications.

This Type LDB molded case switch features a 600 Amp rating, 3 poles, and supports voltages up to 600 VAC and 250 VDC. It has a fixed thermal and fixed magnetic trip unit and is built on the L-frame platform. The breaker offers interrupt ratings of 35 kA at 480 VAC and 65 kA at 240 VAC, ensuring reliable short-circuit protection. This model comes without terminals and is suitable for cable-in/cable-out mounting configurations.

• Amperage: 600 Amp
• Voltage: 600 VAC / 250 VDC
• Poles: 3
• Interrupt Rating: 35 kA at 480 VAC, 65 kA at 240 VAC
• Series/Frame: Series C, L-Frame
• Trip Unit: Fixed thermal, fixed magnetic
• Type: Molded Case Switch
• Mounting Type: Cable In/Cable Out
• Terminals: Without terminals

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: LDB3600WK
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : LDB
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : NA - No Overcurrent Protection
• Frame Size : L Frame
• Protection : Non-Automatic

Product Data

• UPC : 786679061879
• GTIN : 00786679061879
• Country of Origin : United States
• Dimensions : 8.25 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 20
• Certification : UL 489
