Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
LDB3600FT33W

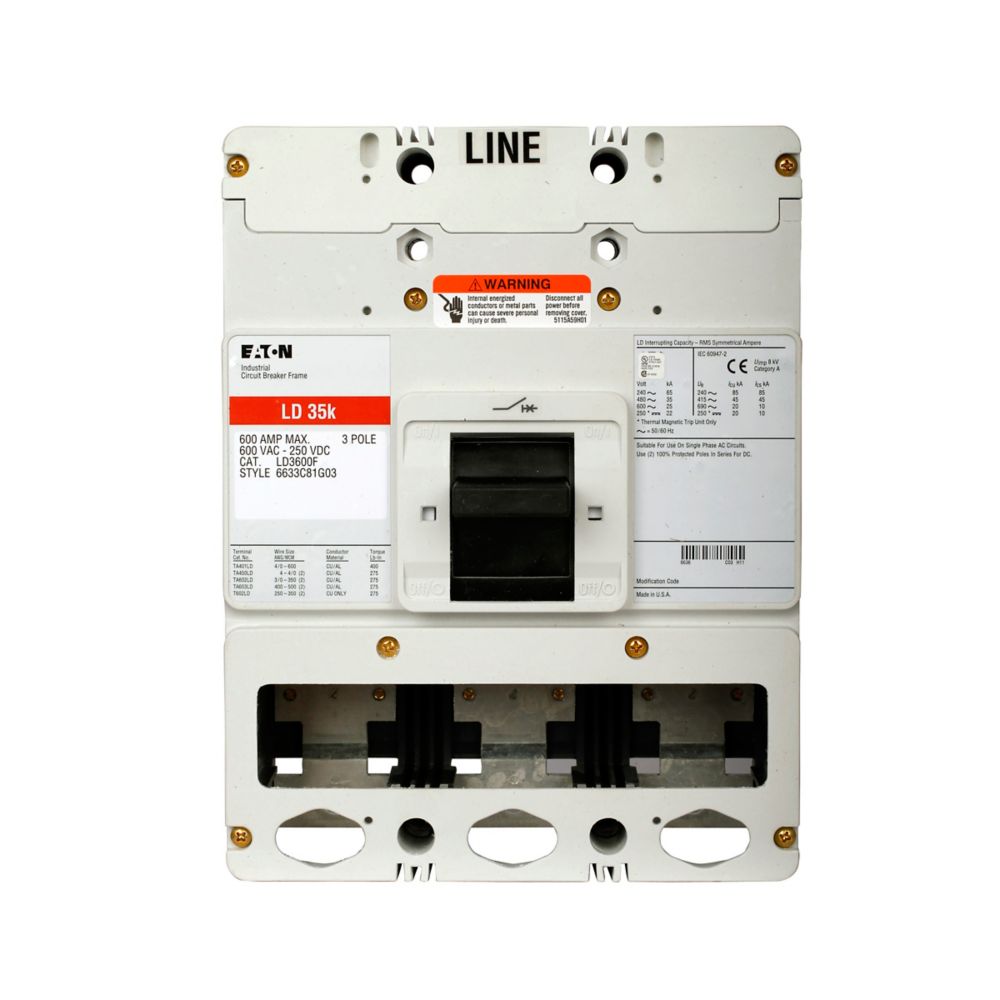

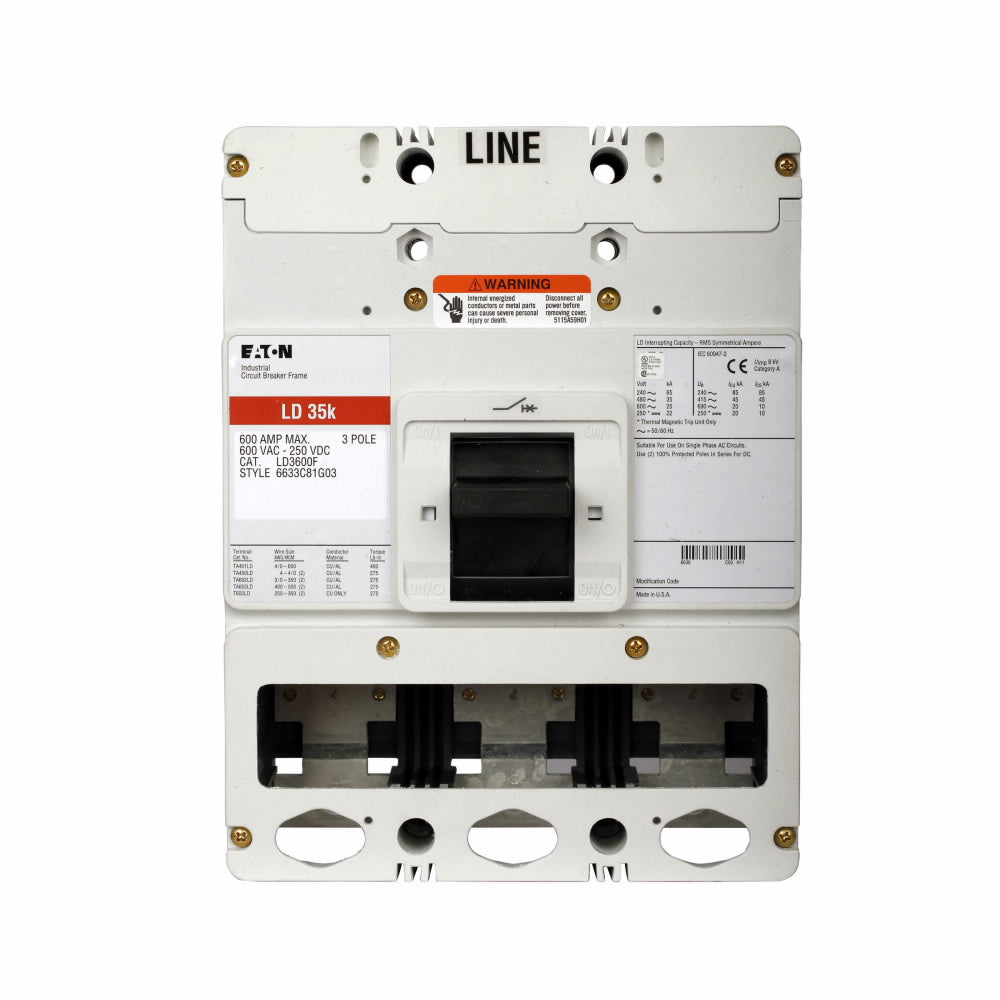

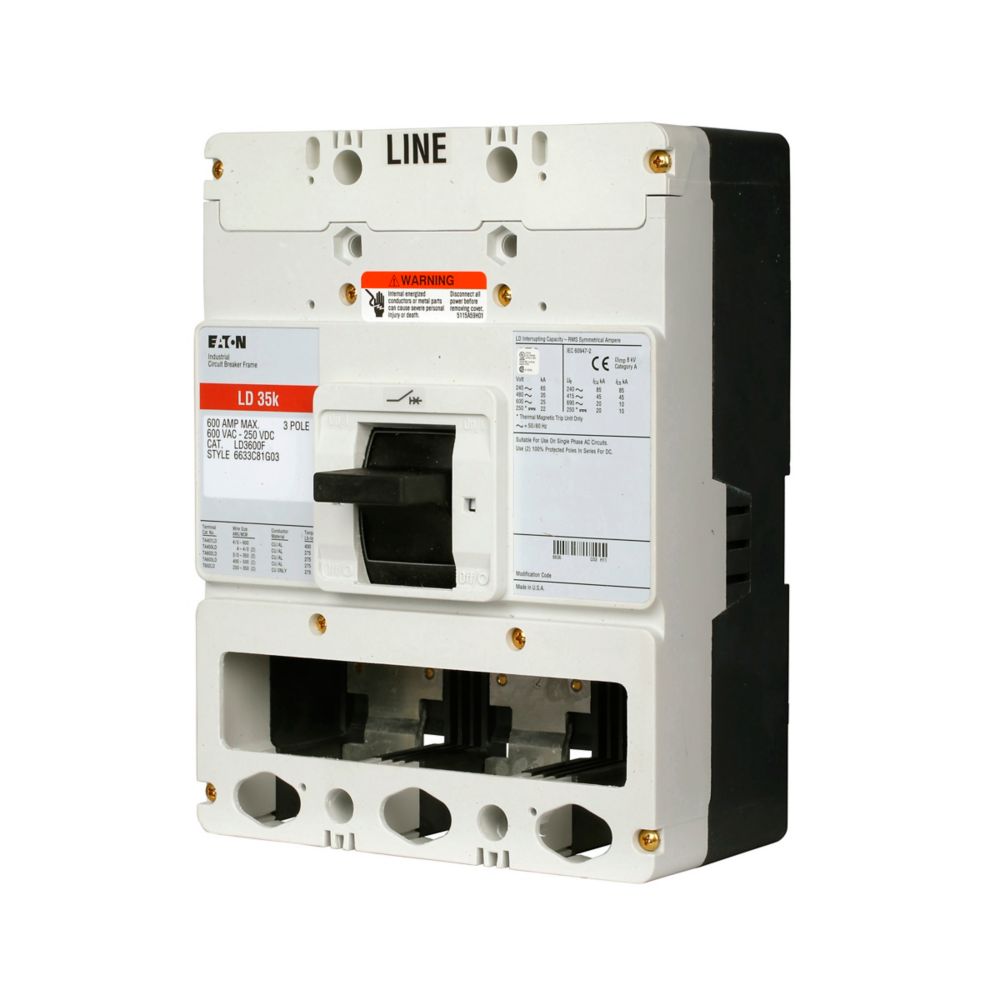

LDB3600FT33W is an Eaton Series C electronic molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This L-frame, three-pole breaker features a 600A continuous current rating, electronic LS trip type with Digitrip 310 RMS, and is rated for 65 kAIC at 240VAC and 35 kAIC at 480VAC. The unit is bolt-on mount and suitable for use in 50/60 Hz applications.
- Part Number: LDB3600FT33W
- Manufacturer: Eaton
- Series: Series C
- Frame: L-Frame
- Poles: 3
- Amperage: 600A
- Voltage: 240VAC, 480VAC
- Interrupt Rating: 65 kAIC @ 240VAC, 35 kAIC @ 480VAC
- Mounting Type: Bolt-On
- Frequency: 50/60 Hz
- Series: Series C
- Trip Unit: Digitrip 310 RMS, Electronic LS
- Certifications: UL Listed
Specifications
- Part Number: LDB3600FT33W
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : LDB
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LS - Long-Time and Short-Time
- Frame Size : L Frame
- Protection : Solid State
Product Data
- UPC : 786679281000
- GTIN : 00786679281000
- Country of Origin : United States
- Dimensions : 8.25 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
- Weight : 19.25
- Certification : UL 489
