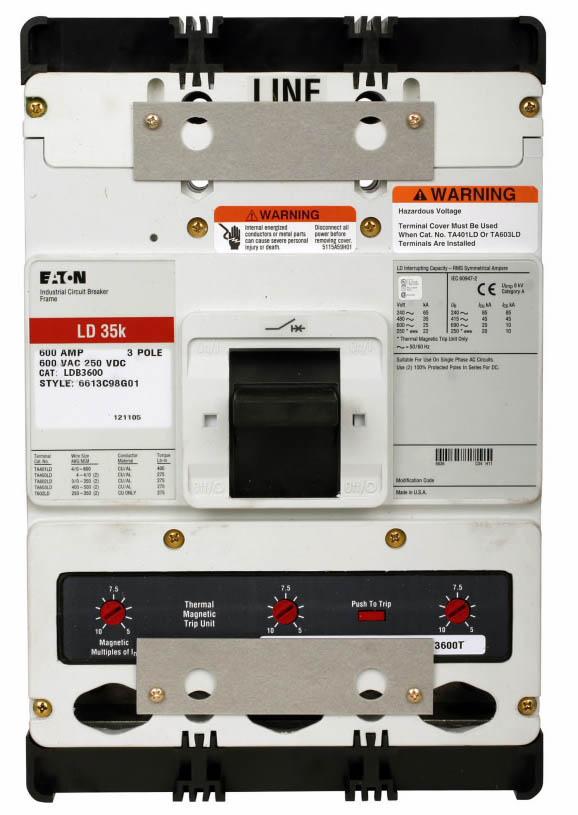

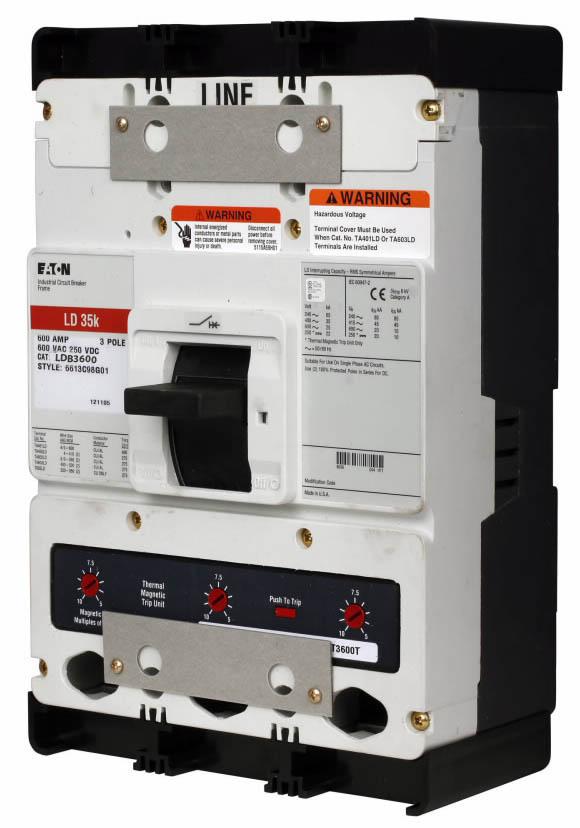

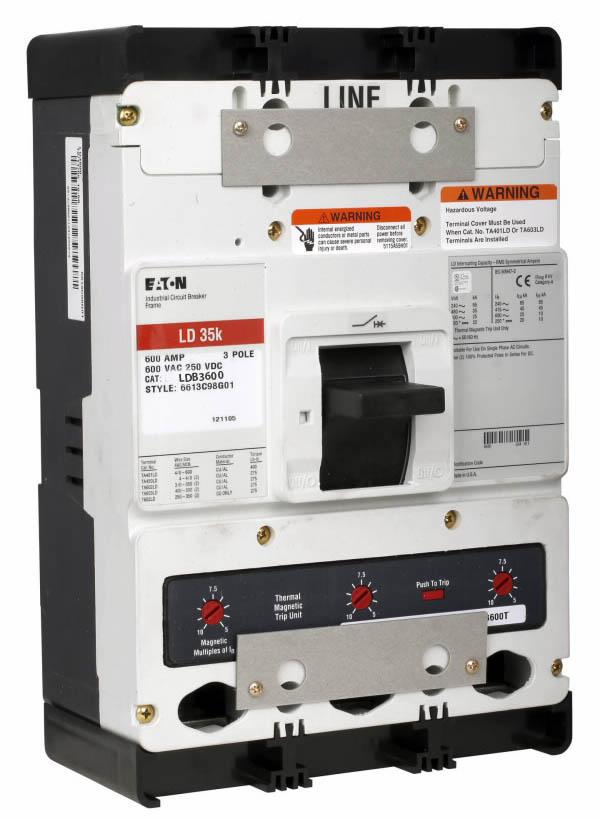

LDB3600 - Cutler Hammer 600A 600VAC 3-Pole L-Frame Circuit Breaker Series C

LDB3600

LDB3600 is a Cutler Hammer Series C complete molded case circuit breaker with a 600 amp rating and 3 poles for reliable power distribution protection.This L-frame breaker features fixed thermal and fixed magnetic trip units, suitable for 600 VAC and 250 VDC applications, with a high interrupt rating of 65 kAIC at 240 VAC and 35 kAIC at 480 VAC.

• Amperage Rating: 600 A
• Voltage Rating: 600 VAC / 250 VDC
• Number of Poles: 3
• Frame Type: L
• Series: C Series
• Trip Type: Fixed Thermal / Fixed Magnetic
• Interrupt Rating: 65 kAIC at 240 VAC, 35 kAIC at 480 VAC
• Frequency Rating: 50/60 Hz
• Terminal Material: Aluminum
• Connection Type: Line and Load
• Certifications: UL 489, CE
• Dimensions: 8.25 x 8.25 x 8.25 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LDB3600
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : LDB
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : L Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679147962
• GTIN : 00786679147962
• Country of Origin : United States
• Dimensions : 8.25 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 20
• Certification : UL 489
