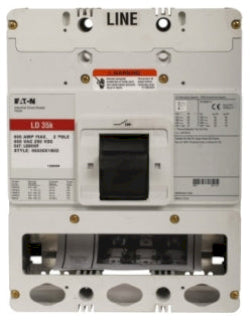

LDB2500 - Eaton 500A 2-Pole Series C L-Frame Molded Case Circuit Breaker Fixed Thermal Magnetic Trip

LDB2500

LDB2500 is a 500 amp, 2-pole molded case circuit breaker from Eaton's Series C L-frame lineup with fixed thermal and fixed magnetic trip units.This Eaton LDB2500 breaker features a complete L-frame design suitable for 50 to 60 Hz applications, offering a 65 kA interrupt rating at 240 VAC and 35 kA at 480 VAC. It includes aluminum line and load terminals and is UL 489 certified for safety and reliability.

• Amperage Rating: 500 A
• Poles: 2
• Frame: L (Series C)
• Trip Type: Fixed thermal, fixed magnetic
• Interrupt Rating: 65 kA at 240 VAC, 35 kA at 480 VAC
• Frequency Rating: 50 to 60 Hz
• Terminal Material: Aluminum
• UL 489 Certified
• Complete breaker type

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LDB2500
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : LDB
• Voltage : 600
• Amperage : 500
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679147856
• GTIN : 00786679147856
• Country of Origin : United States
• Dimensions : 8.25 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 18
• Certification : UL 489
