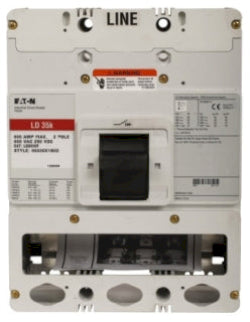

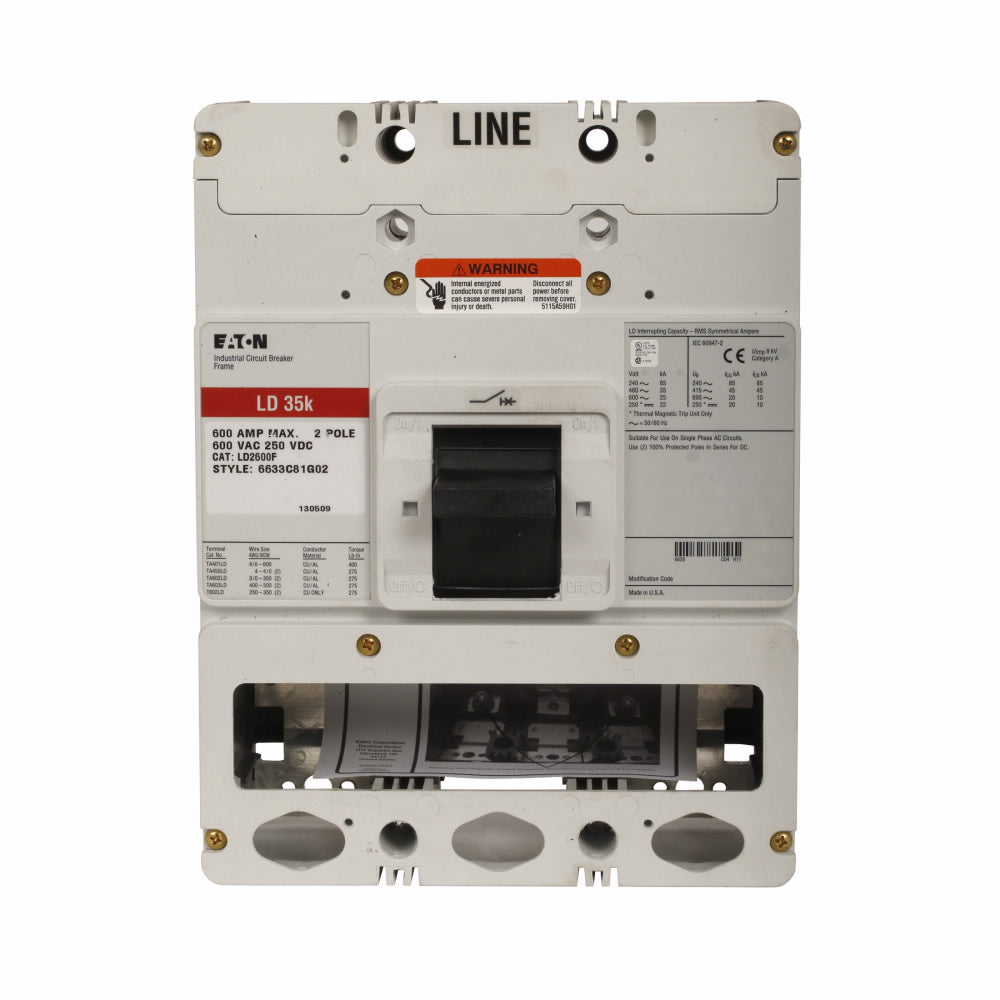

LDB2350W - Eaton 350A 600V Two-Pole L-Frame Series C Molded Case Circuit Breaker

LDB2350W

LDB2350W is a Eaton Series C complete molded case circuit breaker designed for reliable circuit protection in industrial and commercial applications.This two-pole breaker features a 350 ampere rating with a voltage capacity of 600 Vac and 250 Vdc. It belongs to Eaton's L-frame Series C line and includes a fixed thermal and magnetic trip unit (T186). The breaker offers a high interrupt rating of 65 kAIC at 240 Vac and 35 kAIC at 480 Vac, ensuring robust fault current interruption. It is constructed with aluminum terminals suitable for line and load connections and operates at 50/60 Hz frequency.

Key Specifications
• Amperage Rating: 350 A
• Voltage Rating: 600 Vac, 250 Vdc
• Number of Poles: Two-pole
• Frame Type: L-frame
• Series: Series C
• Trip Unit: Fixed thermal, fixed magnetic (T186)
• Interrupt Rating: 65 kAIC at 240 Vac, 35 kAIC at 480 Vac
• Terminal Material: Aluminum
• Terminals: Line and load
• Frequency: 50 to 60 Hz
• Certifications: UL 489
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.




Specifications

• Part Number: LDB2350W
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : LDB
• Voltage : 600
• Amperage : 350
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Thermal Magnetic



Product Data

• UPC : 786679148426
• GTIN : 00786679148426
• Country of Origin : United States
• Dimensions : 4.06 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 18
• Certification : UL 489
