LC1D300M7C - Schneider Electric TeSys D 300A 3-Pole 220V AC Contactor

LC1D300M7C

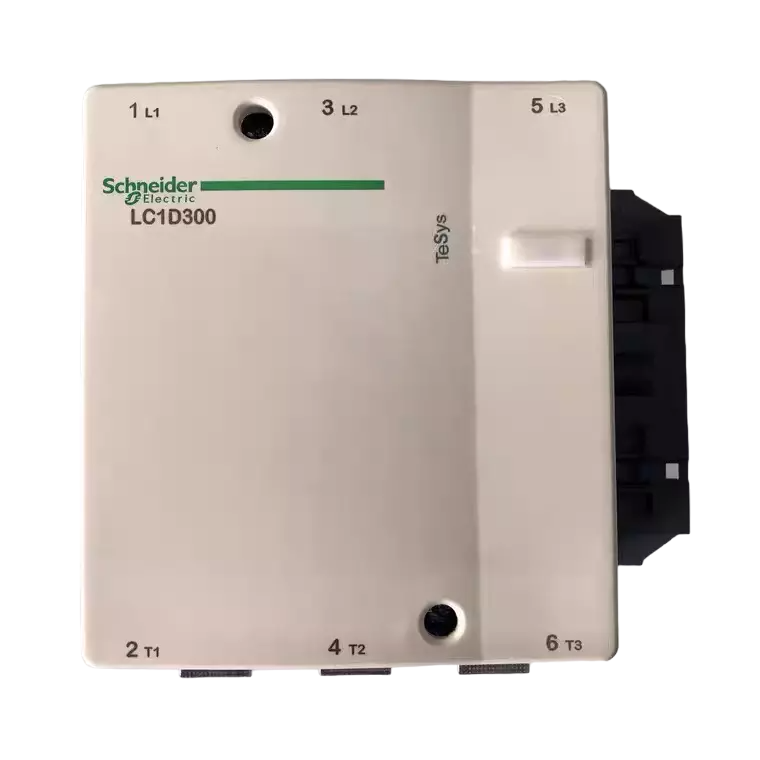

LC1D300M7C is a Schneider Electric TeSys D series non-reversing AC magnetic contactor designed for reliable motor control and circuit management in industrial applications. This 3-pole contactor delivers rated operational current of 300A at AC-3 duty (440V) and 400A at AC-1 duty, with a maximum motor rating of 160 kW at 400V in AC-3 service. The unit features a 220V AC coil rated for 50/60 Hz operation and is rated for 1000V maximum system voltage. Built for durability, the contactor offers 8 million mechanical cycles of life and operates at frequencies up to 2400 cycles per hour. Control voltage operates within 0.85 to 1.15 times the rated coil voltage during run mode and 0.35 to 0.55 times during release mode across the temperature range of -5 to 55 degrees Celsius.

• Rated Operational Current: 300A (AC-3 at 440V), 400A (AC-1)
• Coil Voltage: 220V AC, 50/60 Hz
• Poles: 3 Pole, 3 Normally Open (3NO)
• Maximum System Voltage: 1000V
• Motor Power Rating: 160 kW at 380/400V AC (AC-3), 100 kW at 220/240V AC (AC-3)
• Mechanical Life: 8 Million Cycles
• Operating Frequency: 2400 cycles/h at less than 55 degrees Celsius
• Act(more...)


  Specifications

  • Part Number: LC1D300M7C
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 300
  • Phase : 3
  • Poles : 3
  • Coil Voltage Maximum : 220
  • Coil Voltage Minimum : 220



  Product Data

  • Weight : 0.75
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
