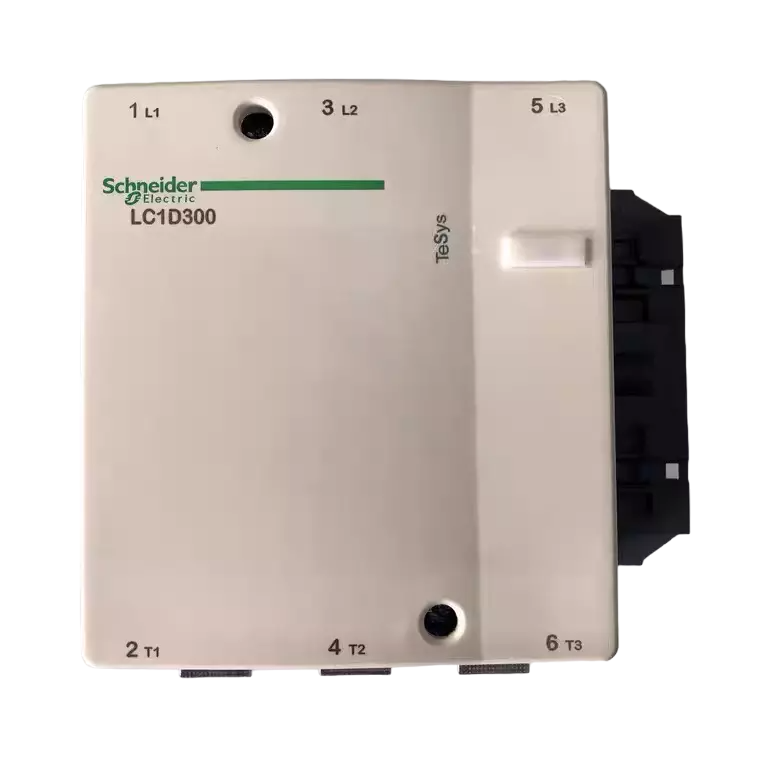

LC1D300 - Schneider Electric TeSys D 400A 3-Pole 600V Motor Contactor

LC1D300

LC1D300 is a Schneider Electric TeSys D series 3-pole motor contactor rated for 400A at 600V AC, designed for reliable motor control in industrial applications. This contactor features a 120V AC coil and is configured with 3 normally open (3NO) main contacts plus 1NO+1NC auxiliary contacts for enhanced control flexibility. The unit is built to withstand demanding industrial environments with mechanical life rated at 8 million cycles and operates across a temperature range of -40¡C to +60¡C. It includes screw terminal connections for secure wiring and is suitable for AC-3 duty cycle applications up to 37kW at 400V. The contactor meets IEC 60947 standards with an 8kV rated impulse withstand voltage and features improved fire resistance and dustproof auxiliary contacts for enhanced reliability.

• Amperage Rating: 400A
• Voltage Rating: 600V AC
• Poles: 3-Pole (3NO)
• Coil Voltage: 120V AC
• Series: TeSys D
• Auxiliary Contacts: 1NO + 1NC
• Terminal Type: Screw
• Mechanical Life: 8 Million Cycles
• Operating Temperature: -40¡C to +60¡C
• Standards: IEC 60947 Compliant
• (more...)


  Specifications

  • Part Number: LC1D300
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 300
  • Phase : 3
  • Poles : 3
  • Coil Voltage Maximum : 120
  • Coil Voltage Minimum : 120



  Product Data

  • Weight : 24
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
