2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
LC1D205Q5C

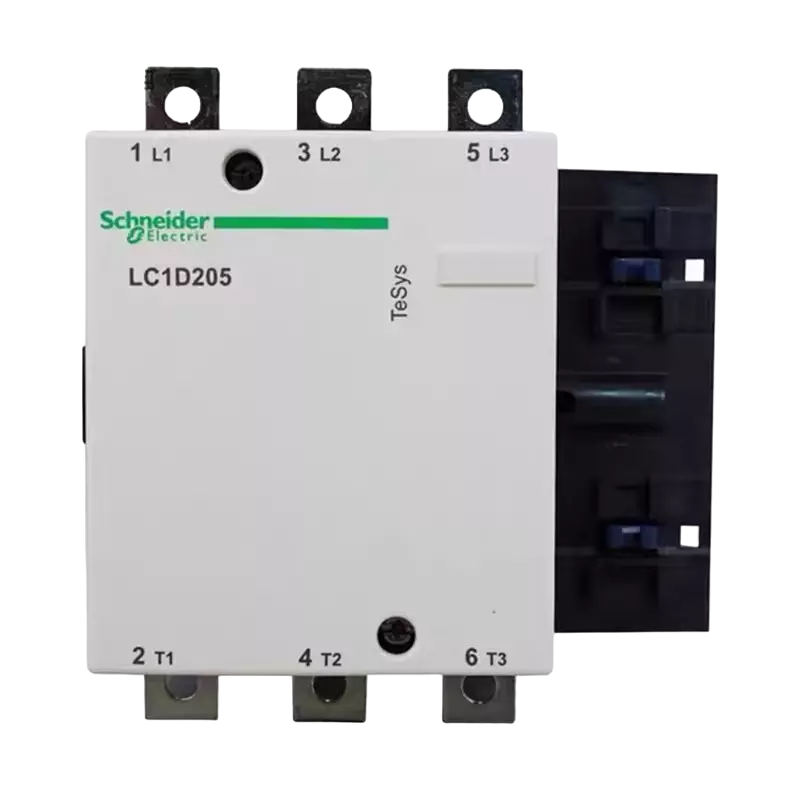

LC1D205Q5C is a three-pole contactor from the Schneider Electric TeSys D series, designed for reliable motor control in industrial applications. This contactor features a 380V coil and is rated for 205A continuous current, making it suitable for demanding environments with frequent switching requirements. The LC1D205Q5C is engineered for use in AC motor control circuits, offering robust performance with a maximum operating frequency of 2400 cycles per hour. It is designed for mounting on standard DIN rails and is compatible with a wide range of control voltages. The contactor is built to withstand impulse voltages up to 8 kV, ensuring reliable operation in harsh electrical environments.
- Part Number: LC1D205Q5C
- Manufacturer: Schneider Electric
- Series: TeSys D
- Amperage: 205A
- Voltage: 380V AC, 50Hz
- Poles: 3
- Mounting Type: DIN Rail
- Rated Impulse Withstand Voltage: 8 kV
- Operating Frequency: 2400 cycles/hour
- Control Voltage Range: 0.85Ð1.15 Uc (operating), 0.35Ð0.55 Uc (releasing)
- Maximum Operating Temperature: 55¡C
- Me(more...)
Specifications
- Part Number: LC1D205Q5C
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 205
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 380
- Coil Voltage Minimum : 380
Product Data
- Weight : 4
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
