2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
LC1D205M5C

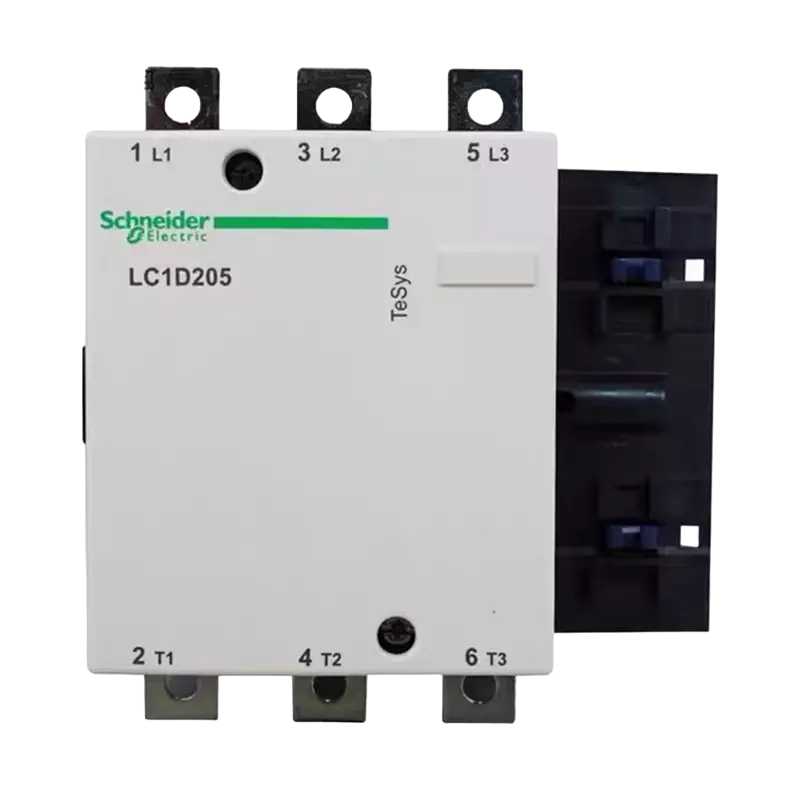

LC1D205M5C is a TeSys D series 3 pole contactor designed for reliable motor control applications with a 220V 50Hz coil.This Schneider Electric contactor is engineered for use in industrial environments, supporting up to 205A continuous current and rated for 1000V. It features a robust design suitable for frequent switching operations and is ideal for controlling three-phase motors.
- Part Number: LC1D205M5C
- Manufacturer: Schneider Electric
- Series: TeSys D
- Number of Poles: 3
- Rated Current: 205A
- Main Circuit Voltage: 1000V
- Control Voltage: 220V AC 50Hz
- Mounting Type: DIN Rail or Panel Mount
- Operating Frequency: 2400 cycles/hour
- Rated Impulse Withstand Voltage: 8 kV
- Mechanical Life: 8 million cycles
- Tightening Torque: 18 Nm (Power Circuit), 1.2 Nm (Control Circuit)
Specifications
- Part Number: LC1D205M5C
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 205
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 220
- Coil Voltage Minimum : 220
Product Data
- Weight : 4
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
