Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LAP26300MB

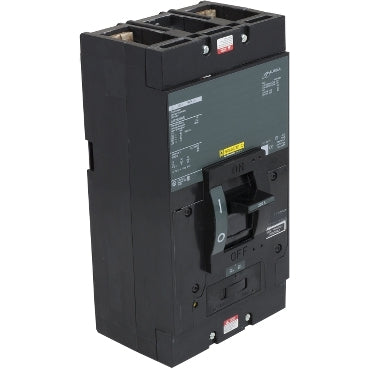

LAP26300MB is a Square D 2 pole molded case circuit breaker rated for 300 amps and 600 volts with thermal magnetic trip protection.This circuit breaker features a unit mount design with a short handle and is suitable for reliable protection of electrical circuits up to 600VAC. It has a 22kA interrupt rating at 600VAC and 250VDC rating, making it compliant with UL and CSA certifications. The MB suffix indicates a bolt-on mounting type with lugs on the OFF end.
- Amperage: 300A
- Voltage Rating: 600VAC max
- Poles: 2
- Mounting Type: Unit mount, bolt-on (MB suffix)
- Interrupt Rating: 22kA at 600VAC, 42kA at 240VAC
- Trip Unit: Thermal magnetic
- Frame/Series: LA
- Certifications: UL, CSA approved
- Handle Type: Short handle
- DC Voltage Rating: 250V max
Specifications
- Part Number: LAP26300MB
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : LAP Series
- Type : LAP
- Voltage : 600
- Amperage : 300
- Phase : 1
- Poles : 2
- AIC rating : 30kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug, Terminal
- Frame Size : A
- Protection : Thermal Magnetic
Product Data
- UPC : 785901530008
- GTIN : 00785901530008
- Country of Origin : Mexico
- Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
- Weight : 13.849
- Standards : UL Listed, CSA, IEC
- Certification : UL Listed, CSA, IEC
