Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LAL3640030M

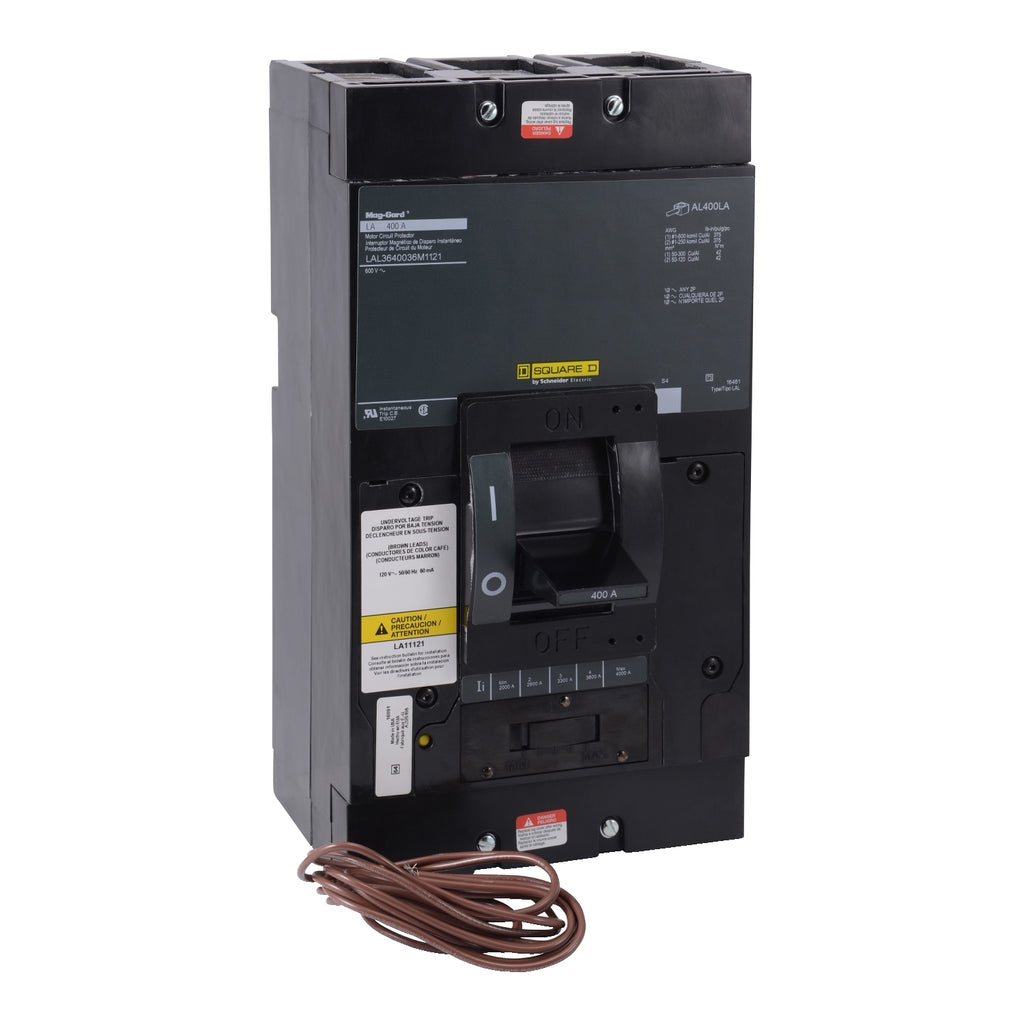

LAL3640030M is a 3-pole molded case circuit breaker by Square D designed for high-performance electrical protection.This Square D LAL3640030M circuit breaker features a 400 Amp current rating, 600VAC and 250VDC voltage ratings, and a 30kA interrupting rating at 480V. It uses a magnetic trip unit with instantaneous trip functions and is designed for unit mounting with feed-thru connection type. The breaker is UL, CSA, and IEC certified and supports line and load side lug connections for wire gauges from AWG 1 to 250/600KCmil.
- Manufacturer: Square D
- Part Number: LAL3640030M
- Amperage: 400A
- Voltage: 600VAC, 250VDC
- Poles: 3
- Interrupt Rating: 30kAIC @ 480V
- Mounting Type: Unit Mount
- Trip Unit: Magnetic Instantaneous
- Frame/Series: LAL
- Connection Type: Feed-Thru
- Certifications: UL, CSA, IEC
- Terminal Connection: Line and Load Side Lug
- Wire Gauge Range: AWG 1 to 250/600KCmil
Specifications
- Part Number: LAL3640030M
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : LAL Series
- Type : LAL
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Feed-Thru
- Functions : Instantaneous Trip
- Protection : Magnetic Only
Product Data
- UPC : 785901358374
- GTIN : 00785901358374
- Country of Origin : Mexico
- Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
- Weight : 20
- Certification : UL LISTED-CSA-IEC
- Wire Size : AWG 1 to 250/600KCmil
