LAL364001021 - Square D 400A 600V 3 Pole L Frame Molded Case Circuit Breaker, Thermal Magnetic, Shunt Trip, 22kAIC, I-Line PowerPact, UL/CSA

LAL364001021

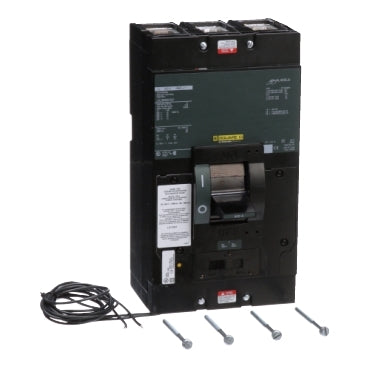

LAL364001021 is a Square D molded case circuit breaker designed for reliable protection in demanding power distribution applications.

This 3-pole, 400A breaker features a thermal-magnetic trip unit with adjustable settings, providing both overload and short-circuit protection. It is rated for 600V AC (22kA interrupting capacity) and 250V DC (10kA), with lug terminations for secure connections. The LAL series offers flexible mounting options, including unit mount and I-Line construction, and includes a push-to-trip mechanism for safe manual operation. UL and CSA certifications ensure compliance with industry standards.

Key Specifications
• Amperage: 400A
• Voltage: 600V AC, 250V DC
• Poles: 3
• Mounting Type: Unit mount, I-Line
• Interrupt Rating: 22kAIC (AC), 10kAIC (DC)
• Series/Frame: LAL, L Frame
• Trip Unit: Thermal-magnetic, adjustable, shunt trip
• Termination: Lug
• Dimensions: 6" W x 5.84" D x 11" H
• Certifications: UL, CSA
• Actuator: Toggle
• Push-to-Trip: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LAL364001021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LAL Series
• Type : LAL
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 30kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901339496
• GTIN : 00785901339496
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 16.839
• Standards : IEC, CSA, UL Listed
• Certification : IEC, CSA, UL Listed
