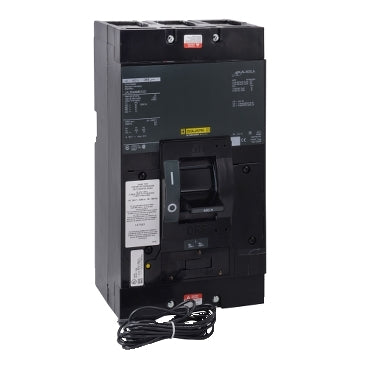

LAL364001386 - Square D 400A 600V 3-Pole Molded Case Circuit Breaker with Shunt Trip

LAL364001386

LAL364001386 is a Square D molded case circuit breaker designed for high-performance electrical protection.This thermal magnetic type circuit breaker features a 400 ampere current rating and supports voltages up to 600 volts AC and 250 volts DC. It is a 3-pole breaker with unit mount installation, equipped with a 24 VDC shunt trip and a 1NO-1NC auxiliary switch. The breaker has an interrupt rating of up to 42 kiloamperes at 240 VAC and meets UL, CSA, and CE certifications. It belongs to the L frame series and includes line and load lug terminals.

Key Specifications
• Current Rating: 400 Amperes
• Voltage Rating: 600 VAC / 250 VDC max
• Poles: 3
• Mounting Type: Unit Mount
• Interrupt Rating: 42 kAIC at 240 VAC, 30 kAIC at 480 VAC STAR/277 VAC, 22 kAIC at 600 VAC STAR/347 VAC
• Trip Unit: Thermal Magnetic
• Frame Type: L Frame
• Includes 24 VDC Shunt Trip
• Auxiliary Switch: 1NO-1NC
• Terminal Type: Line and Load Lugs
• Certifications: UL, CSA, CE
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

complete with 24V shunt trip




Specifications

• Part Number: LAL364001386
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LAL Series
• Type : LAL
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 30kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Thermal Magnetic



Product Data

• GTIN : 00785901116233
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 20
