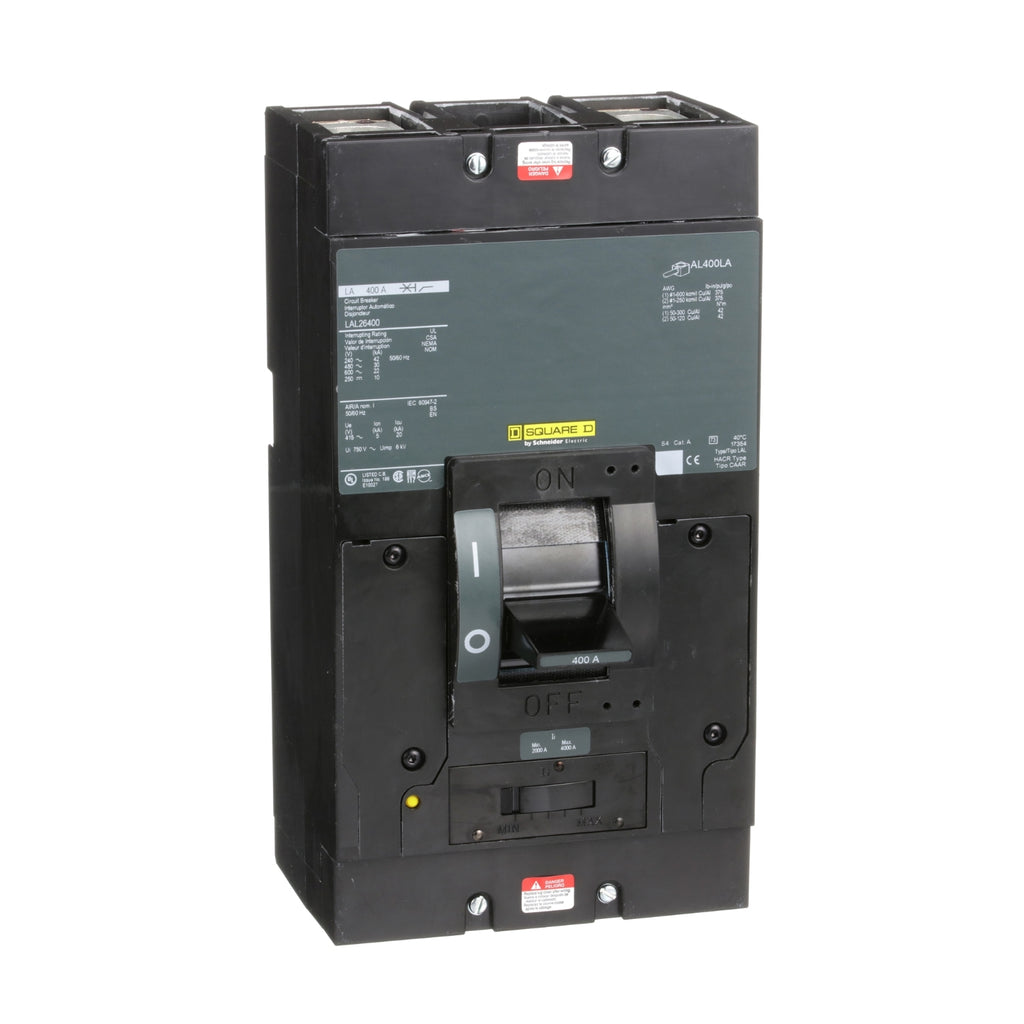

LAL26400V - Square D 400A 2-Pole 600VAC Molded Case Circuit Breaker

LAL26400V

LAL26400V is a Square D molded case circuit breaker designed for manual circuit control and automatic protection against overload and short circuit conditions. This thermal magnetic circuit breaker features a 400 ampere rating at 600VAC with a 22kA interrupting capacity at 600VAC and 10kA at 250VDC. The unit includes push-to-trip manual trip capability, allowing safe manual operation without exposure to live parts, and supports flexible mounting and termination options including bolt-on and I-Line construction.

• Amperage: 400A
• Voltage: 600VAC
• Poles: 2
• Interrupting Rating: 22kA at 600VAC, 10kA at 250VDC
• Trip Unit: Thermal Magnetic
• Manual Trip: Push-to-Trip
• Mounting: Bolt-On, Unit Mount, I-Line
• Frame Type: LA
• Dimensions: 6 inch width x 5.84 inch depth x 11 inch height
• Protection: Thermal sensing for overload, magnetic for short circuit

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LAL26400V
• Manufacturer : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LAL Series
• Type : LAL
• Voltage : 600
• Amperage : 400
• Phase : 1
• Poles : 2
• AIC rating : 30kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• Weight : 18
