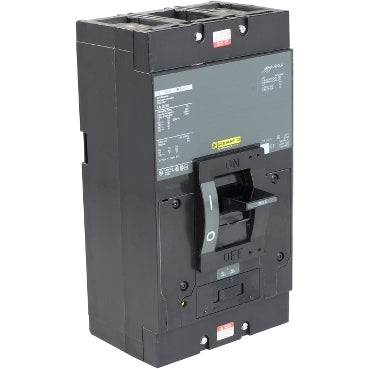

LAL26350 - Square D 350 Amp 600 Volt 2 Pole Thermal Magnetic Molded Case Circuit Breaker

LAL26350

LAL26350 is a 2 pole thermal magnetic molded case circuit breaker by Square D rated for 350 amps and 600 volts AC.This Square D LAL26350 circuit breaker provides reliable overcurrent protection with a thermal magnetic trip unit and is designed for panel mounting. It features a 2 pole configuration suitable for 600VAC and 250VDC applications, with interrupt ratings up to 30kA at 480VAC. The breaker is UL and CSA certified and includes lug-type terminal connections.

Key Specifications
• Amperage: 350 Amps
• Voltage Rating: 600 VAC, 250 VDC
• Number of Poles: 2
• Trip Unit: Thermal Magnetic
• Interrupt Rating: Up to 30kA at 480VAC
• Mounting Type: Panel Mount
• Terminal Connection: Lug
• Series/Frame: LAL
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LAL26350
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LAL Series
• Type : LAL
• Voltage : 600
• Amperage : 350
• Phase : 1
• Poles : 2
• AIC rating : 30kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 400A/LA
• MCM Size : Min. Wire Size 1/0 AWG Max. Wire Size 250 MCM, 600 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901426486
• GTIN : 00785901426486
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 14.1
• Panel Type : Busway Plug-In Units, Combination Starters, Industrial Enclosures, Motor Control Centers, Panelboards, Switchboards
• Standards : CSA, IEC, UL Listed
• Certification : UL Listed; IEC; CSA
