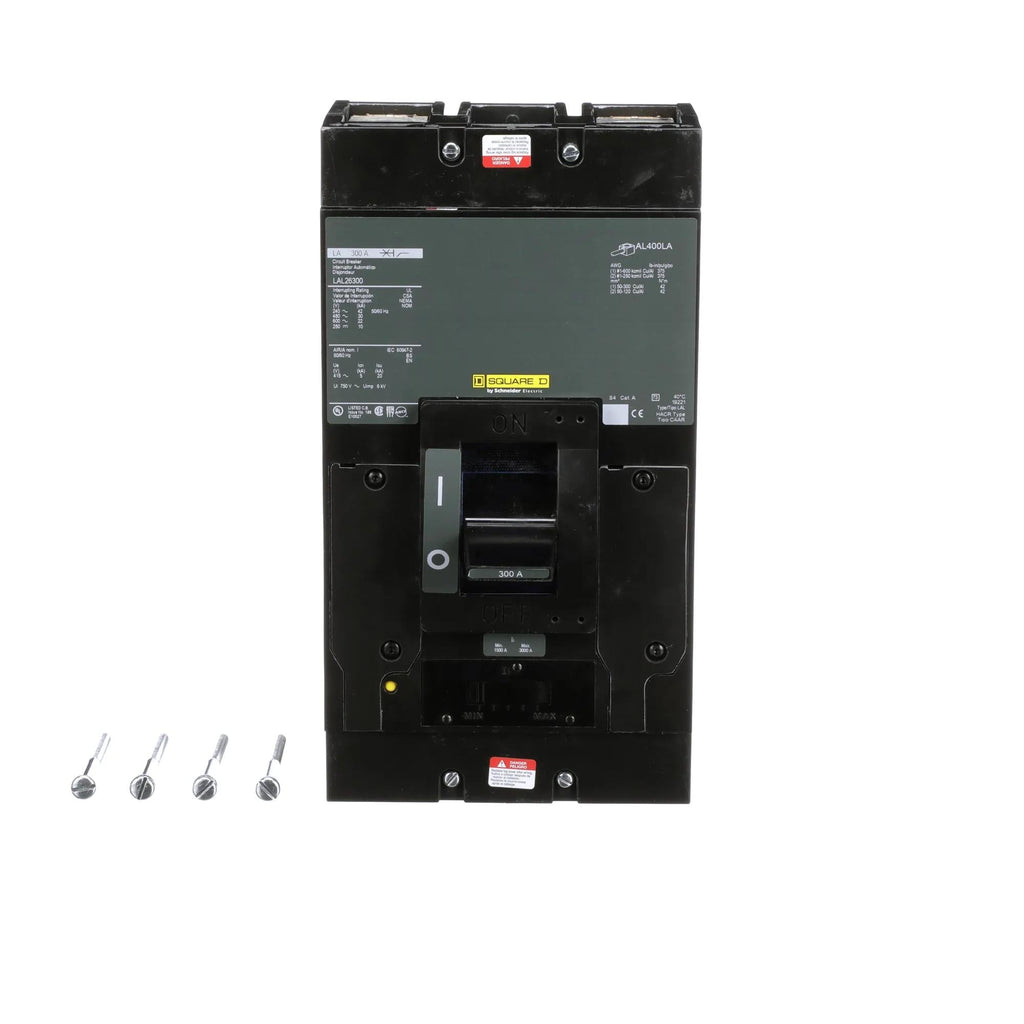

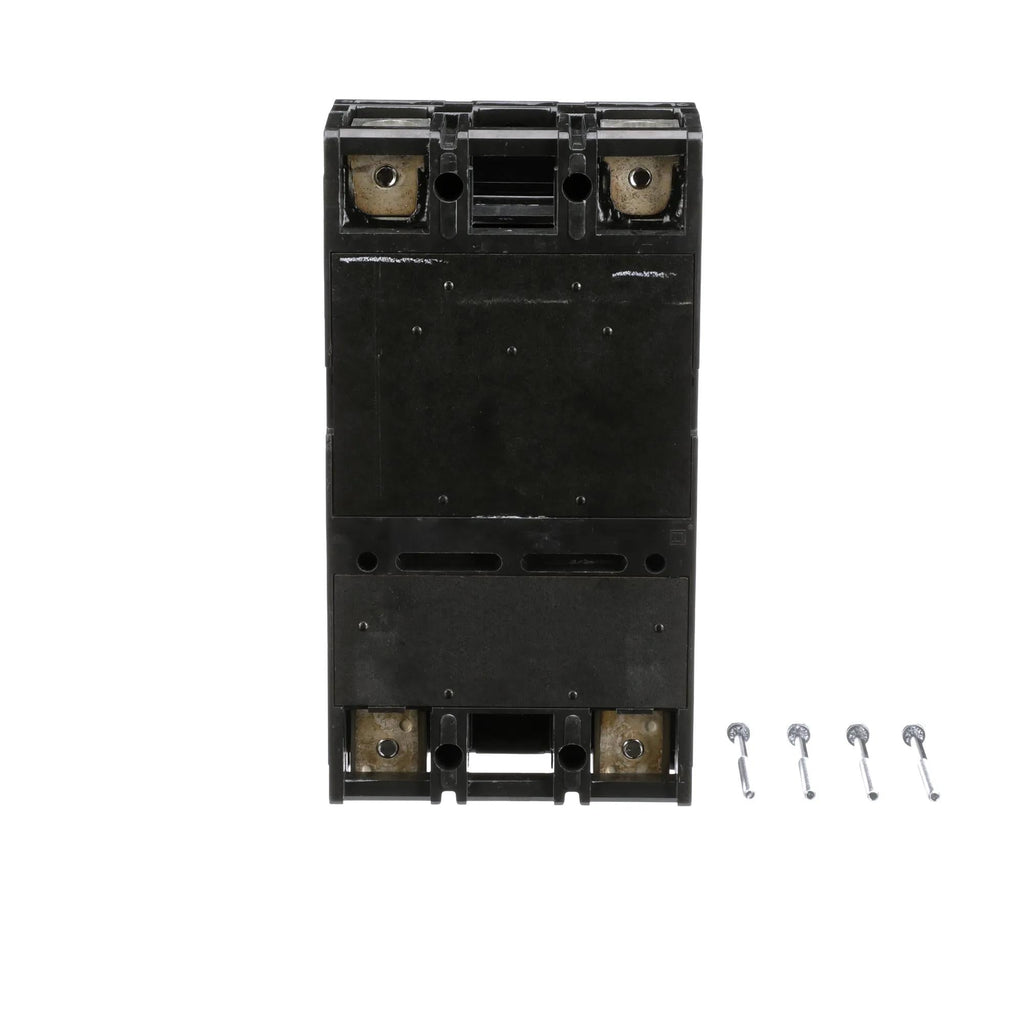

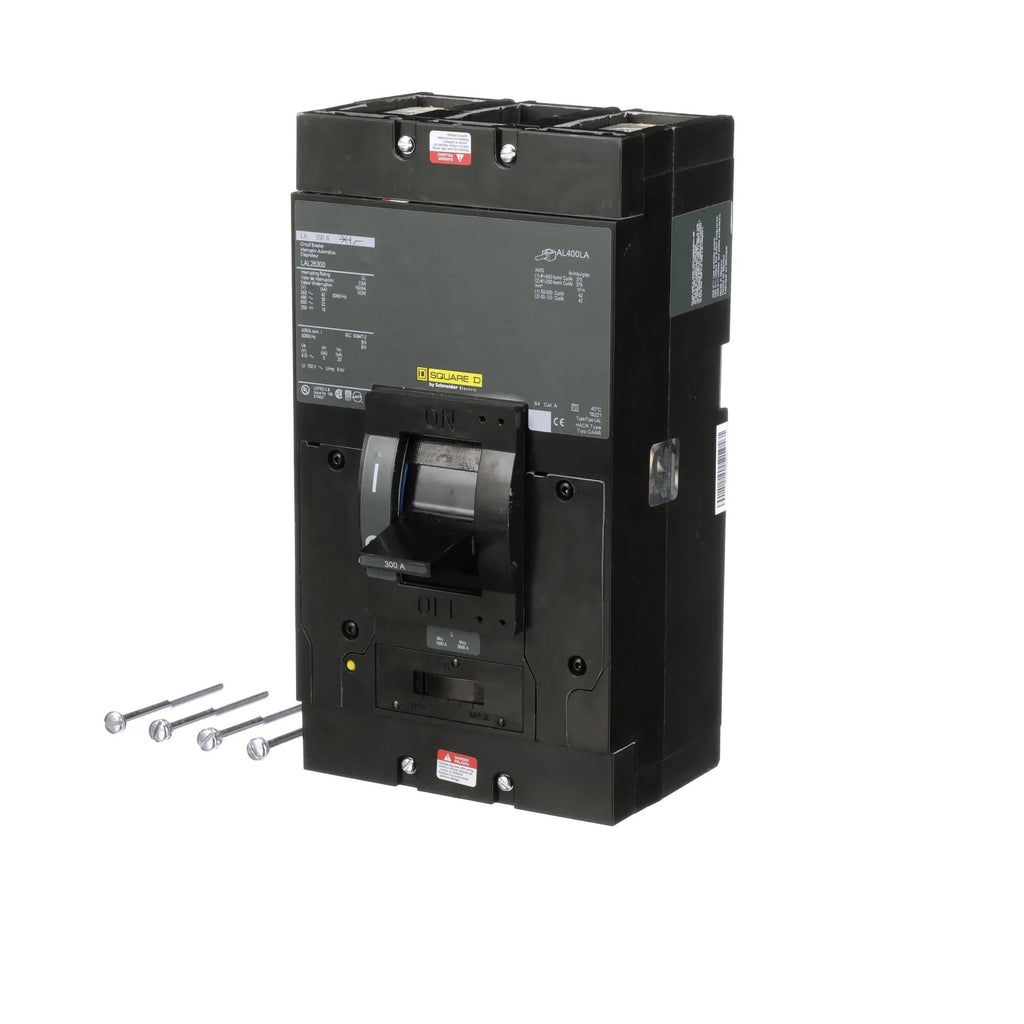

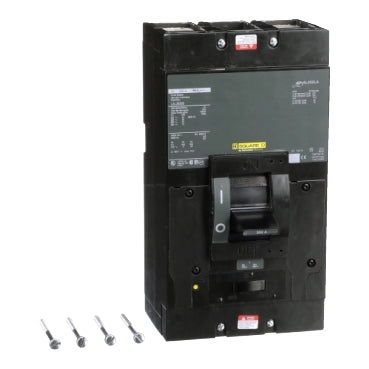

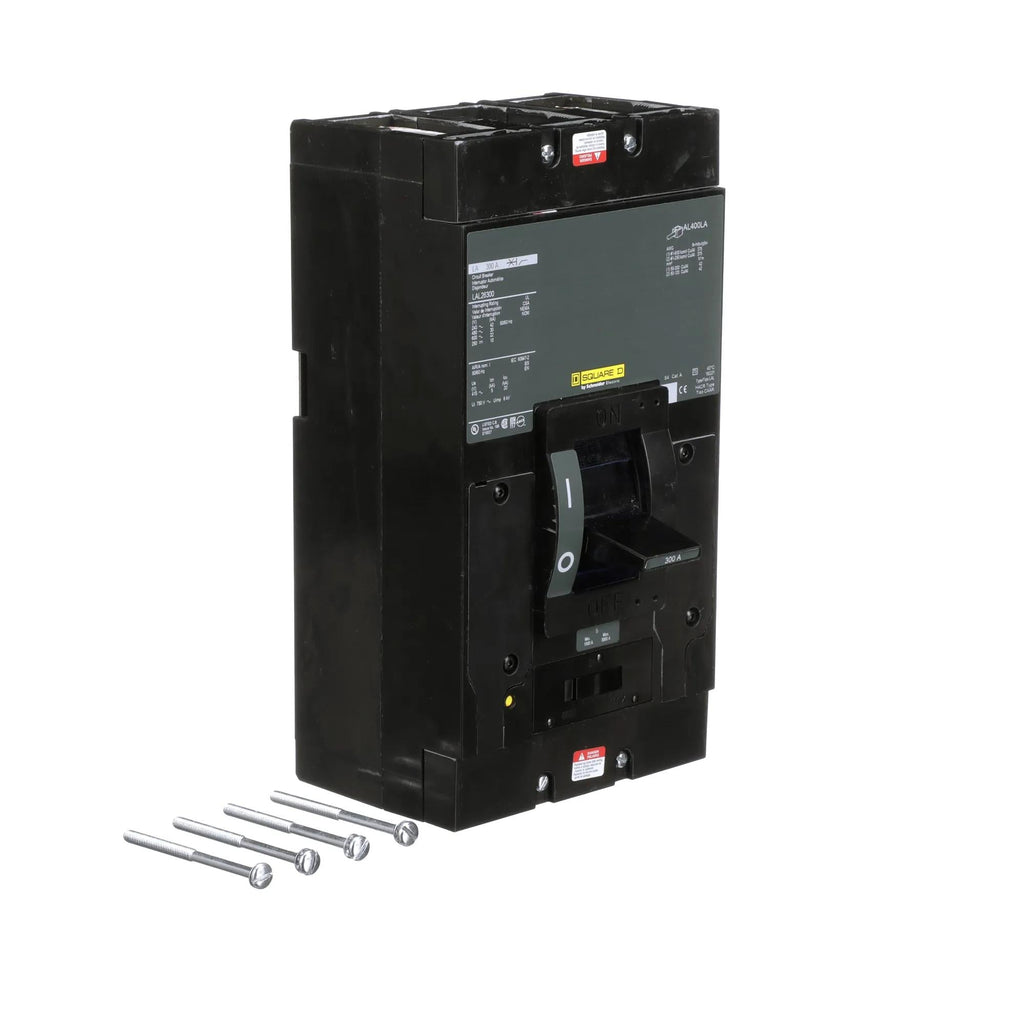

LAL26300 - Square D 300A 600V 2 Pole Molded Case Circuit Breaker Thermal Magnetic LAL Frame

LAL26300

LAL26300 is a 300A, 600V, 2-pole molded case circuit breaker with thermal magnetic protection and LAL frame design. This unit is engineered for reliable circuit protection in commercial and industrial applications. The LAL26300 features a feed-thru connection type, unit mounting, and provides long-time and instantaneous (LI) trip functions. It is UL, CSA, and IEC certified, suitable for use in a variety of electrical distribution systems.

• Part Number: LAL26300
• Manufacturer: Square D
• Series/Frame: LAL
• Amperage: 300A
• Voltage: 600V AC
• Poles: 2
• Mounting Type: Unit
• Interrupting Rating: 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC
• Protection Type: Thermal Magnetic
• Trip Unit: LI (Long-Time and Instantaneous)
• Connection Type: Feed-Thru
• Certifications: UL, CSA, IEC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LAL26300
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LAL Series
• Type : LAL
• Voltage : 600
• Amperage : 300
• Phase : 1
• Poles : 2
• AIC rating : 30kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 400A/LA
• MCM Size : Min. Wire Size 1/0 AWG Max. Wire Size 250 MCM, 600 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901426448
• GTIN : 00785901426448
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 14.37
• Panel Type : Busway Plug-In Units, Combination Starters, Industrial Enclosures, Motor Control Centers, Panelboards, Switchboards
• Standards : CSA, IEC, UL Listed
• Certification : CSA, IEC, UL Listed
• Wire Size : AWG 1, 600 kcmil Aluminium/Copper)1, AWG 1, 250 kcmil Aluminium/Copper)2
