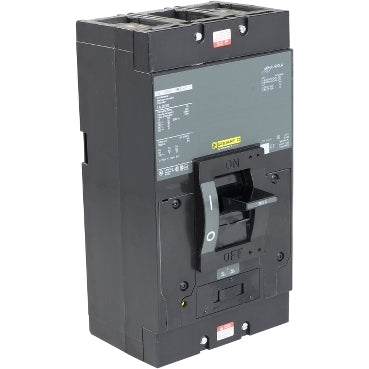

LAL26250 - Square D 250A 600V 2-Pole Thermal Magnetic Circuit Breaker LAL Frame

LAL26250

LAL26250 is a Square D 2-pole thermal magnetic molded case circuit breaker rated for 250 amps and 600 volts AC, designed for reliable overload and short circuit protection. LAL26250 features a thermal magnetic trip unit with long time and instantaneous trip functions, suitable for 1-phase systems. It has line and load side lug terminals and a feed-thru design, built on the LAL frame series with a 22kA interrupt rating at 600VAC and 30kA at 480VAC.

• Amperage: 250A
• Voltage Rating: 600V AC, 250V DC
• Poles: 2
• Frame Type: LAL
• Trip Unit: Thermal Magnetic with adjustable long time and instantaneous trips
• Interrupt Rating: 22kA @ 600VAC, 30kA @ 480VAC
• Mounting Type: Free Standing
• Line & Load Side Lug Terminals
• Phase: 1
• Certifications: UL, CSA Approved

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LAL26250
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LAL Series
• Type : LAL
• Voltage : 600
• Amperage : 250
• Phase : 1
• Poles : 2
• AIC rating : 30kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 400A/LA
• MCM Size : Min. Wire Size 1/0 AWG Max. Wire Size 250 MCM, 600 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901426400
• GTIN : 00785901426400
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 14.1
• Panel Type : Busway Plug-In Units, Combination Starters, Industrial Enclosures, Motor Control Centers, Panelboards, Switchboards
• Standards : CSA, IEC, UL Listed
• Certification : CSA, IEC, UL Listed
• Wire Size : AWG 1, 600 kcmil Aluminium/Copper)1, AWG 1, 250 kcmil Aluminium/Copper)2
