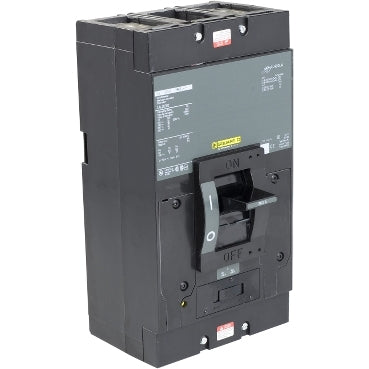

LAL26225 - Square D 225A 600VAC 2-Pole Thermal Magnetic Molded Case Circuit Breaker

LAL26225

LAL26225 is a Square D 2-pole thermal magnetic molded case circuit breaker rated for 225 amps and 600VAC/250VDC operation.This circuit breaker features a unit mount type with long time and instantaneous trip functions, providing reliable overload and short circuit protection. It has an interrupting rating of 22kA at 600VAC and 10kA at 250VDC. The breaker includes line and load side lug terminals and is UL, CSA, and IEC certified. It is designed for use with busway plug-in units, combination starters, industrial enclosures, motor control centers, panelboards, and switchboards.

Key Specifications
• Amperage: 225A
• Voltage Rating: 600VAC, 250VDC
• Poles: 2
• Mounting Type: Unit Mount
• Interrupting Rating: 22kA at 600VAC, 10kA at 250VDC
• Frame Type: LAL
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Terminal Connection: Line and Load Side Lug
• Certifications: UL, CSA, IEC
• Connection Type: Feed-Thru
• Max Wire Size: 600 MCM
• Min Wire Size: 1/0 AWG

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LAL26225
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LAL Series
• Type : LAL
• Voltage : 600
• Amperage : 225
• Phase : 1
• Poles : 2
• AIC rating : 30kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 400A/LA
• MCM Size : Min. Wire Size 1/0 AWG Max. Wire Size 250 MCM, 600 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901334835
• GTIN : 00785901334835
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 14.1
• Panel Type : Busway Plug-In Units, Combination Starters, Industrial Enclosures, Motor Control Centers, Panelboards, Switchboards
• Standards : CSA, IEC, UL Listed
• Certification : UL Listed; IEC; CSA
