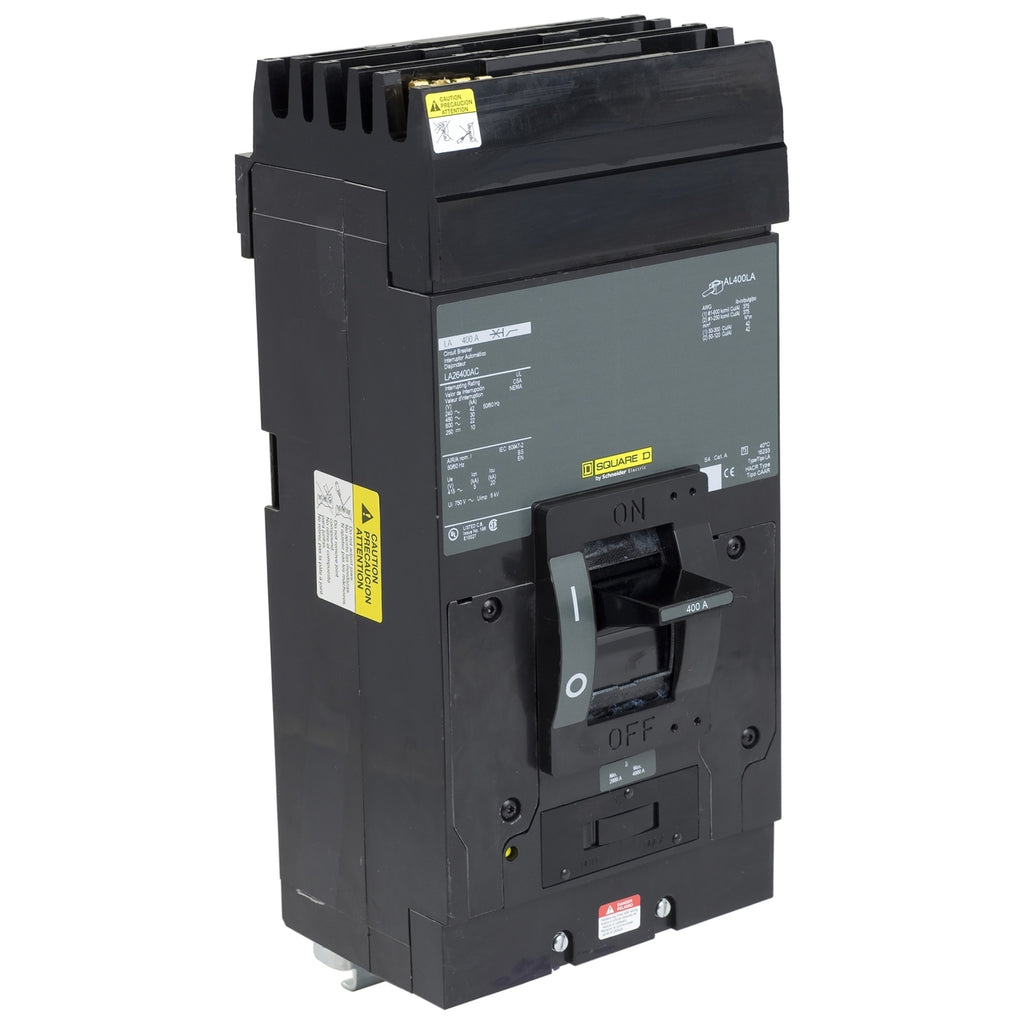

LA26400BC - Square D 400A 600V 2 Pole I-Line Molded Case Circuit Breaker

LA26400BC

LA26400BC is a Square D 2 pole, 400 amp, 600 volt I-Line molded case circuit breaker designed for reliable circuit protection.This circuit breaker features a thermal magnetic trip unit, suitable for single-phase applications, with a plug-in I-Line style mounting and lug terminal connections. It has a high interrupting rating of up to 42kA at 240V AC and 30kA at 480V AC, ensuring robust protection against short circuits and overloads. The breaker is UL and CSA certified and built with the LA series frame for compatibility with Square D I-Line panels.

Key Specifications
• Amperage: 400A
• Voltage Rating: 600V AC
• Number of Poles: 2
• Mounting Type: I-Line Plug-In
• Interrupting Rating: 42kA @ 240V AC, 30kA @ 480V AC
• Trip Unit: Thermal Magnetic
• Frame/Series: LA
• Terminal Connection: Lug
• Phase: Single Phase
• Certifications: UL, CSA
• Dimensions: Approx. 11" height, 6" width
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LA26400BC
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : LA
• Voltage : 600
• Amperage : 400
• Phase : 1
• Poles : 2
• AIC rating : 30kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 400A/LA
• MCM Size : Min. Wire Size 1 AWG (Al) Max. Wire Size 250 MCM (Al), 600 MCM (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : BC



Product Data

• UPC : 078590135847
• GTIN : 00785901358473
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 15.85
• Panel Type : I Line Panelboards
• Standards : CSA Certified, UL Listed
• Certification : CSA Certified, UL Listed
• Wire Size : AWG 1...600 kcmil aluminium/copper)1, AWG 1...250 kcmil aluminium/copper)2
