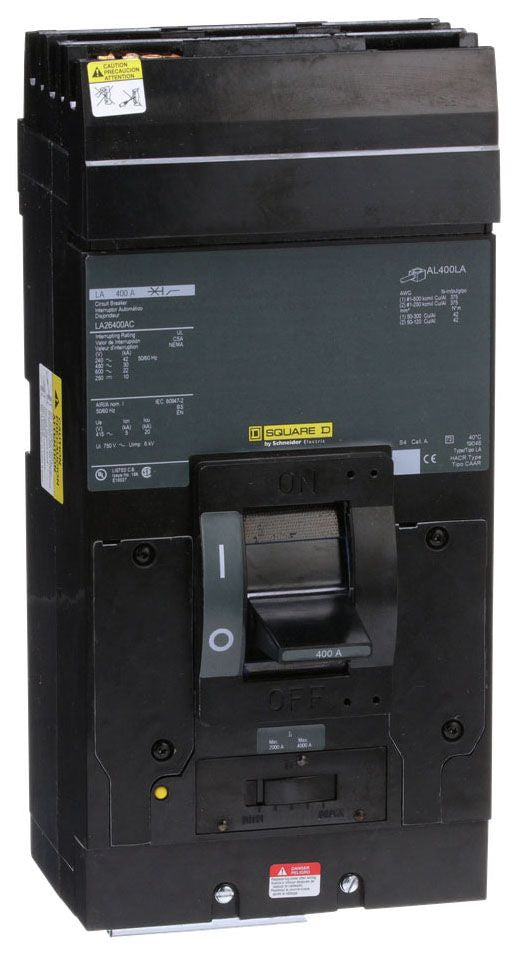

LA26400AC - Square D 400A 600V 2 Pole I-Line Plug-In Circuit Breaker Thermal Magnetic

LA26400AC

LA26400AC is a Square D 2 pole, 400 amp, 600 volt I-Line plug-in circuit breaker with thermal magnetic trip protection.This molded case circuit breaker is designed for use in I-Line panelboards and switchboards. It features a 22 kA interrupting rating at 600 VAC and 250 VDC voltage rating. The breaker provides reliable long-time and instantaneous trip functions, suitable for power distribution applications. It is UL and CSA certified and mounts via plug-in installation.

• Amperage: 400A
• Voltage Rating: 600 VAC / 250 VDC
• Number of Poles: 2
• Mounting Type: I-Line Plug-In
• Interrupting Rating: 22 kA at 600 VAC
• Trip Type: Thermal Magnetic
• Series/Frame: LA (I-Line)
• Certifications: UL Listed, CSA Certified
• Application: Panelboard and Switchboard
• Phase Connection: AC
• Terminal Connection: Lug
• Dimensions: Approx. 11" height, 6" width, 5.8" depth

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LA26400AC
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : LA
• Voltage : 600
• Amperage : 400
• Phase : 1
• Poles : 2
• AIC rating : 30kA@480V
• Connection : Plug In Panelboard
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 400A/LA
• MCM Size : Min. Wire Size 1 AWG (Al) Max. Wire Size 250 MCM (Al), 600 MCM (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : AC

Product Data

• UPC : 785901009795
• GTIN : 00785901009795
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 16.03
• Panel Type : I Line Panelboards
• Standards : CSA Certified, UL Listed
• Certification : CSA Certified, UL Listed
