Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
JXD62B225

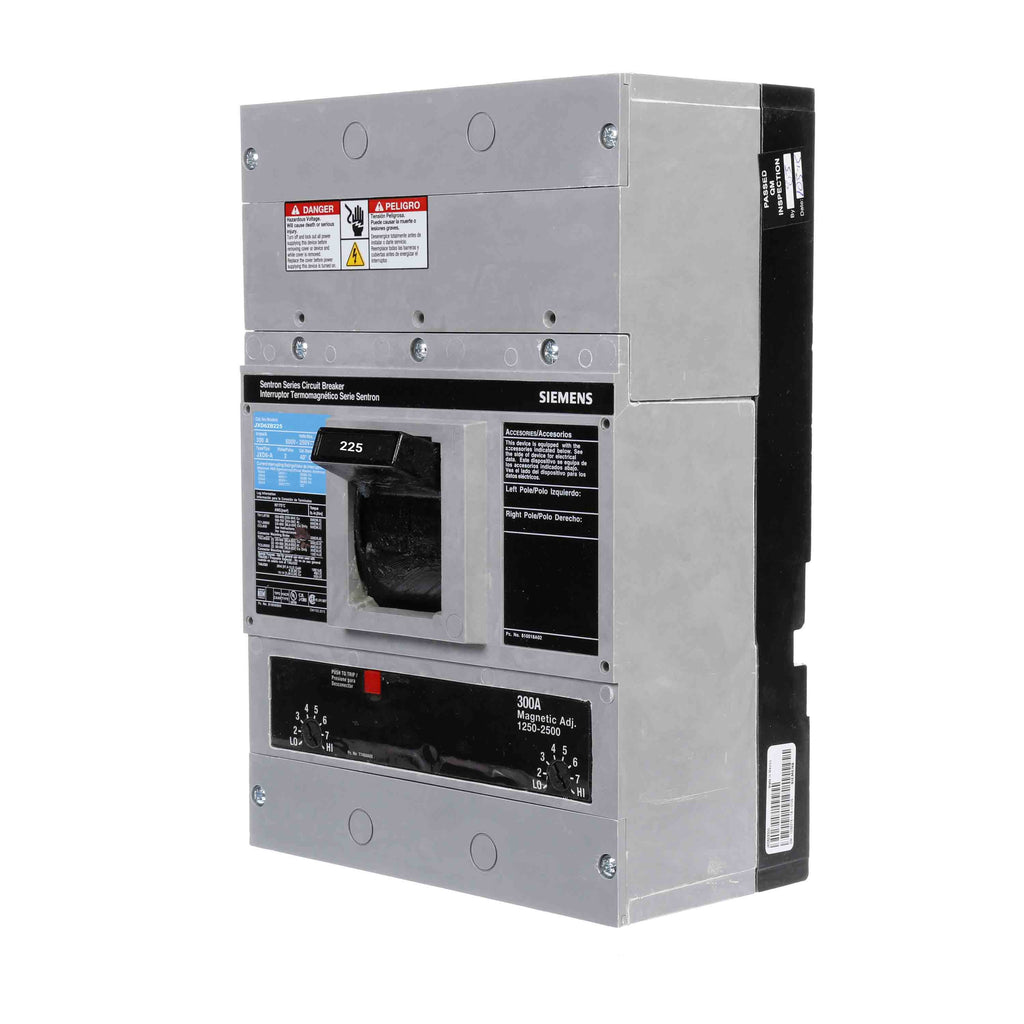

JXD62B225 is a Siemens 2 pole molded case circuit breaker with a 225 amp rating and 600 volt capacity, designed for reliable thermal magnetic protection.This Siemens Sentron Series breaker features a bolted-on mounting type and offers interrupt ratings of 65kA at 240VAC, 35kA at 480VAC, and 25kA at 600VAC. It uses a thermal magnetic trip unit and is suitable for low voltage applications up to 600VAC.
- Key Specifications
- Amperage: 225 Amps
- Voltage Rating: 600 VAC
- Poles: 2
- Mounting Type: Bolted-On
- Interrupt Rating: 25kA @ 600VAC, 35kA @ 480VAC, 65kA @ 240VAC
- Series/Frame: Sentron Series (JXD Type)
- Trip Unit: Thermal Magnetic
- Certifications: UL Listed
- Line Side Term Method: Lug (not included)
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: JXD62B225
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : JXD
- Voltage : 600
- Amperage : 225
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : JD Frame
- Temp Rating : -13¡F-158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643212992
- GTIN : 00783643212992
- Country of Origin : Mexico
- Dimensions : Width 7.5" Height 11" Depth 4"
- Weight : 20.761
- Standards : RoHS
- Certification : UL, IEC
